GTS Technical Manual

19. April 2010 Edition: V1.00/2010 5-27

05.0 swingo 1255 B Power - mechanics.fm

5.1.6.3 Replacing of electrical brush unit (EBU)

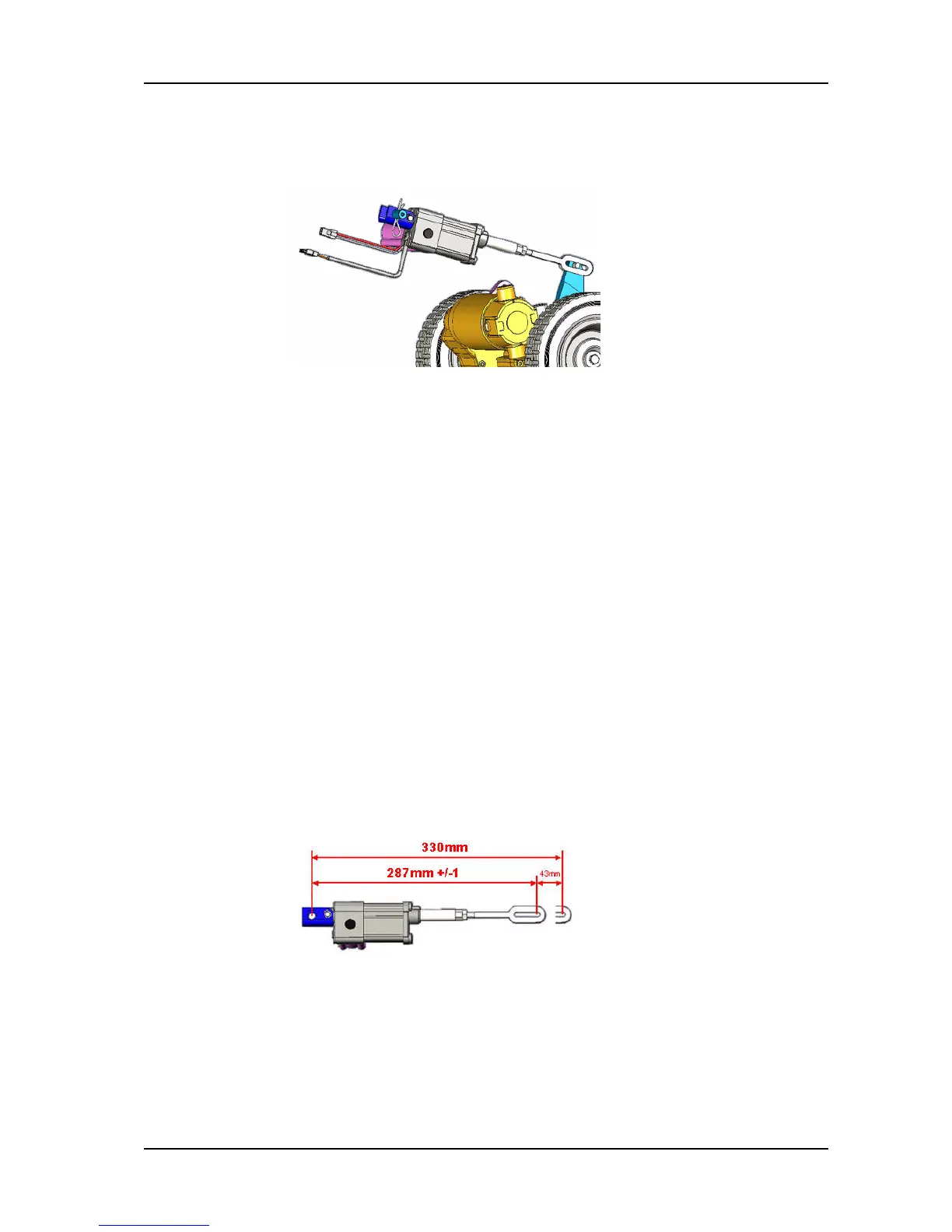

Picture 29: Electrical brush unit

Remove

• Lay machine on the LH side.

• Remove special screw (06/136) to release tie rod.

• Disconnect the linear drive wiring.

• Pull out stop pin (06/108).

• Remove bolt (06/107) for the linear drive fixation.

Remarks

To pull out the bolt, you need to thread in a screw into the bolt.

Dimensions: M6, length > 30mm.

• Thread out the complete linear drive.

Mount

• Thread in the complete linear drive.

Adjustment

The distance between the linear drive fixation bracket and the outer

end of the tie rod has to be as bellow.

Picture 30: Linear drive fixation distance

• Mount bolt for linear drive fixation and secure with stop pin.

• Connect linear drive wiring.

• Mount special screw to fix the tie rod.

• Lift up machine again.
