Taski swingo 1255B User Manual

GTS Technical Manual
19. April 2010 Edition: V1.00/2010 5-24
Copyright © 2010, Diversey Inc.
05.0 swingo 1255 B Power - mechanics.fm
5.1.6 Tool lowering unit

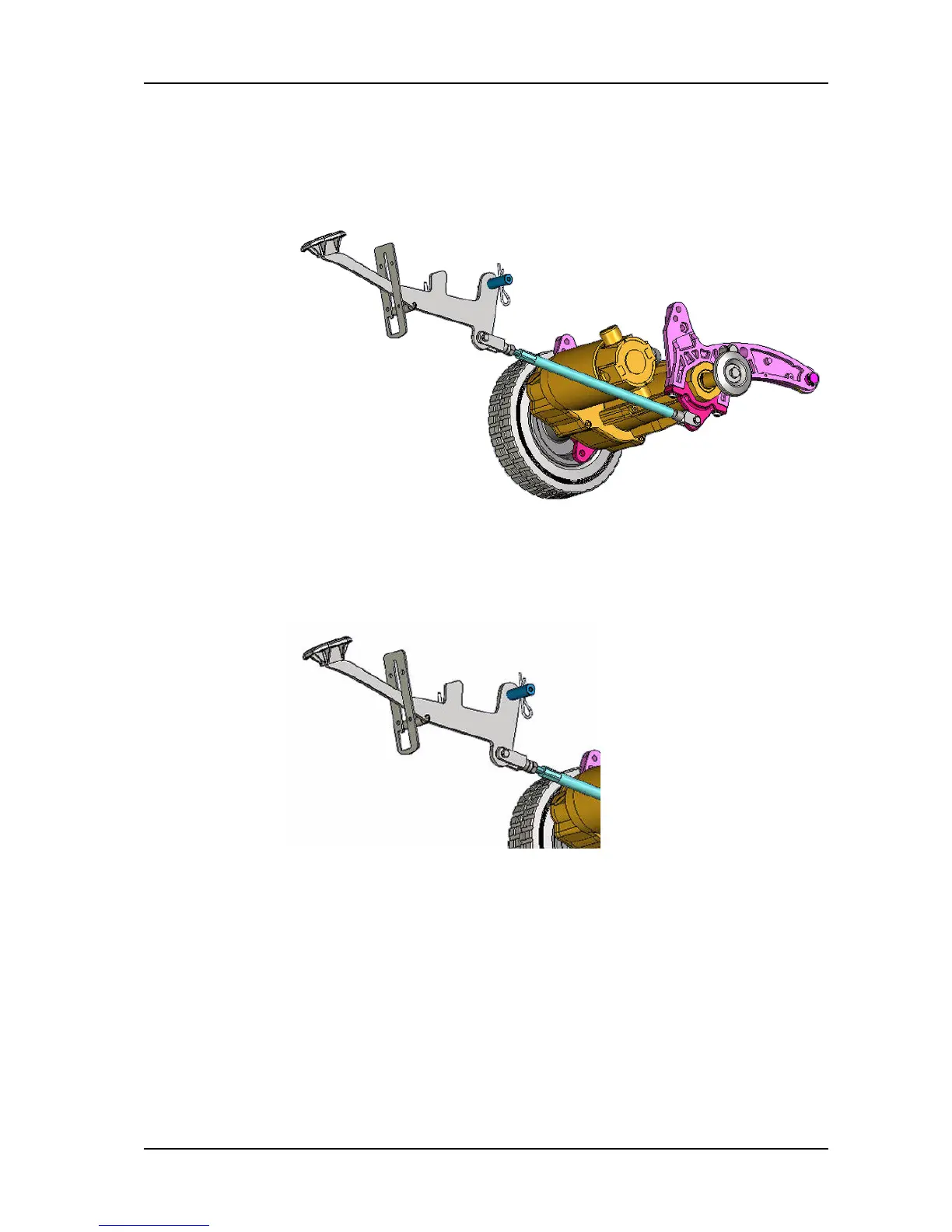

Picture 24: Tool lowering unit
5.1.6.1 Replacing of foot lever
Picture 25: Foot lever
Remove
• Remove the pedal pad (06/101) from the foot lever (06/102).
• Lay the machine on the LH side.
• Unplug the microswitch.
• Remove the screw (06/117) for microswitch fixation.
• Remove the microswitch (06/118).
• Remove the retaining ring (06/120) on one side.
• Remove the axle (06/119) from the pusher rack (06/106).
• Pull out the stop pin (06/108).
• Remove the bolt (06/107) for the foot lever fixation.
