GTS Technical Manual
19. April 2010 Edition: V1.00/2010 5-28
Copyright © 2010, Diversey Inc.
05.0 swingo 1255 B Power - mechanics.fm
5.1.7 Brush drive unit
5.1.7.1 Replacing of brush drive unit

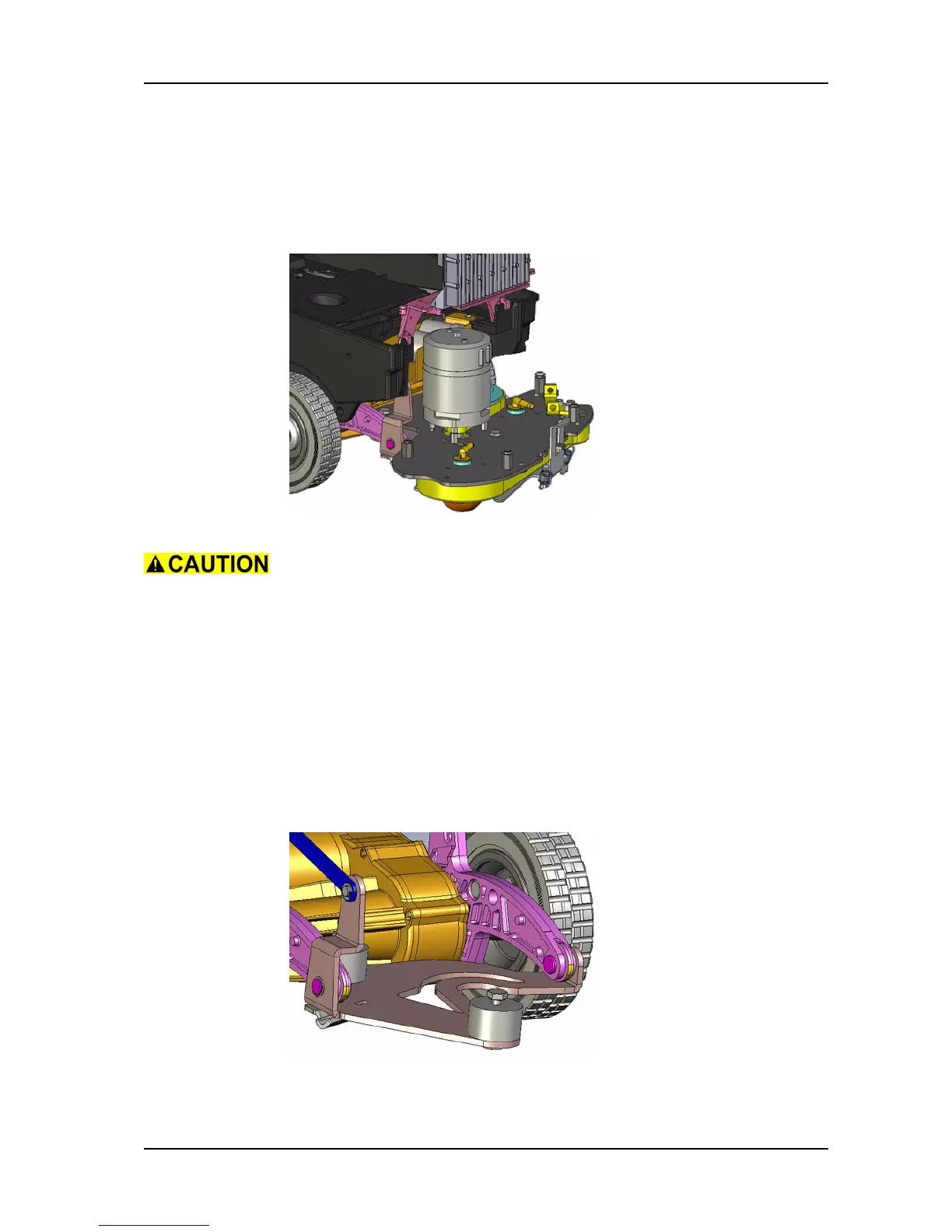

Picture 31: Brush drive replacing
For easier access lower the brush unit.
Remove
• Unlock battery compartment by removing screws of locking
system.
• Open battery compartment.
• Unscrew brush housing fixation screws.
• Remove the brush housing from the brush drive unit.
• Disconnect the fresh water hoses from the brush unit.
• Disconnect the brush motor wires from the power electronics.
• Remove RH circlip (06/112) from the axle (06/114).
• Remove the axle.
• Remove the retaining ring (06/110) on the LH and RH side
from the bolts (06/115), holding brush drive unit to the cradle.
Picture 32: Brush drive fixation
