GTS Technical Manual
19. April 2010 Edition: V1.00/2010 5-22
Copyright © 2010, Diversey Inc.
05.0 swingo 1255 B Power - mechanics.fm
5.1.5 Drive, Wheel group
5.1.5.1 Replacing of traction unit

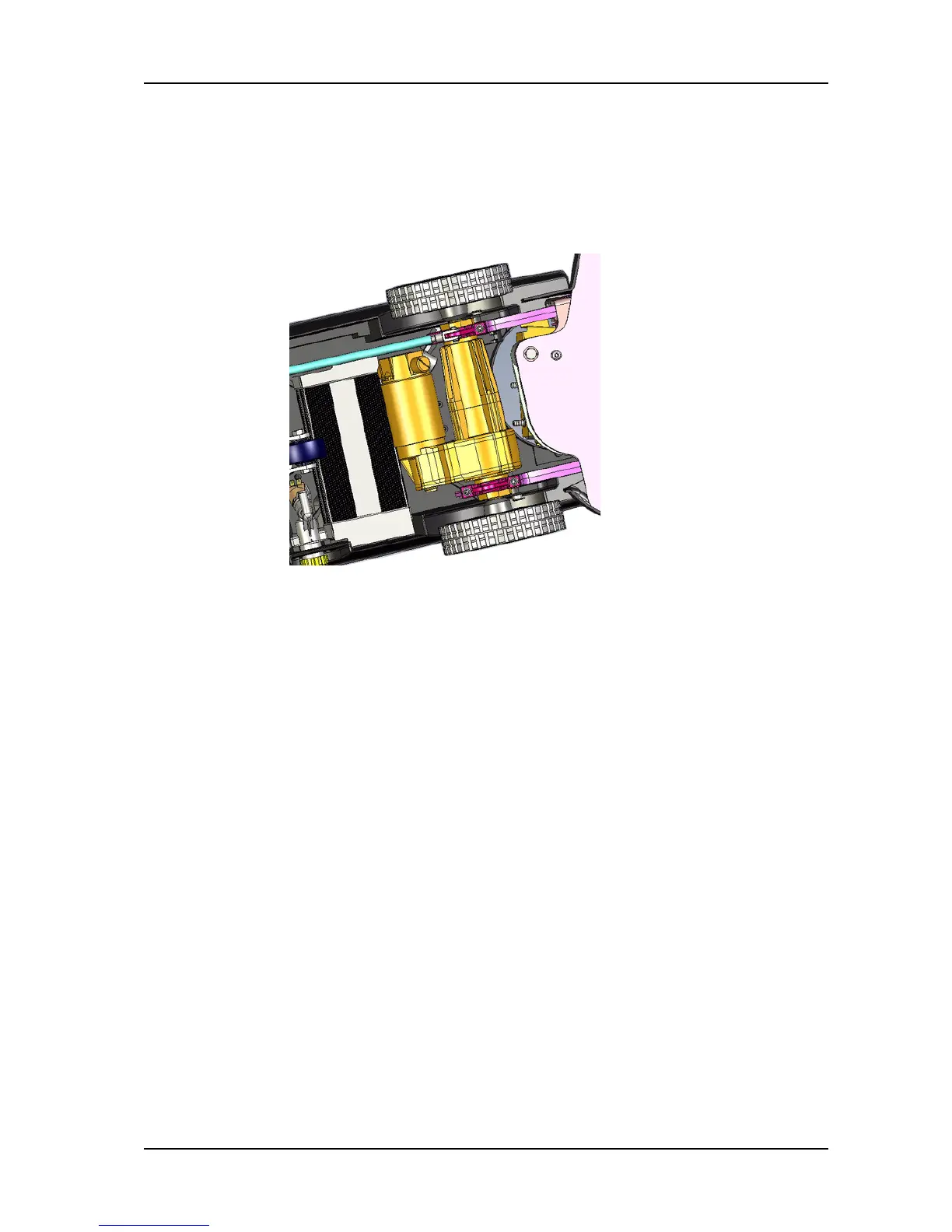

Picture 22: Traction unit
Remove
• Unlock battery compartment by removing screws of locking
system.
• Open battery compartment.
• Disconnect traction unit wires from power electronics.
• Thread out wires from battery compartment.
• Close battery compartment.
• Lay machine to the LH side.
Remarks
For an EBU machine the next two steps are not necessary.
• Remove retaining ring (06/120) on one side.
• Remove axle (06/119).
• Remove the screws (05/106, EBU 05/111) for the brackets.
• Remove the fixation brackets (05/105).
• Remove traction unit including traction wheels.
Mount
• Position new traction unit including traction wheels.
• Position and tighten fixation brackets.
