GTS Technical Manual
19. April 2010 Edition: V1.00/2010 6-15
Copyright © 2010, Diversey Inc.
06.0 swingo 1255 B Power - electronics.fm
6.2.4 Charger

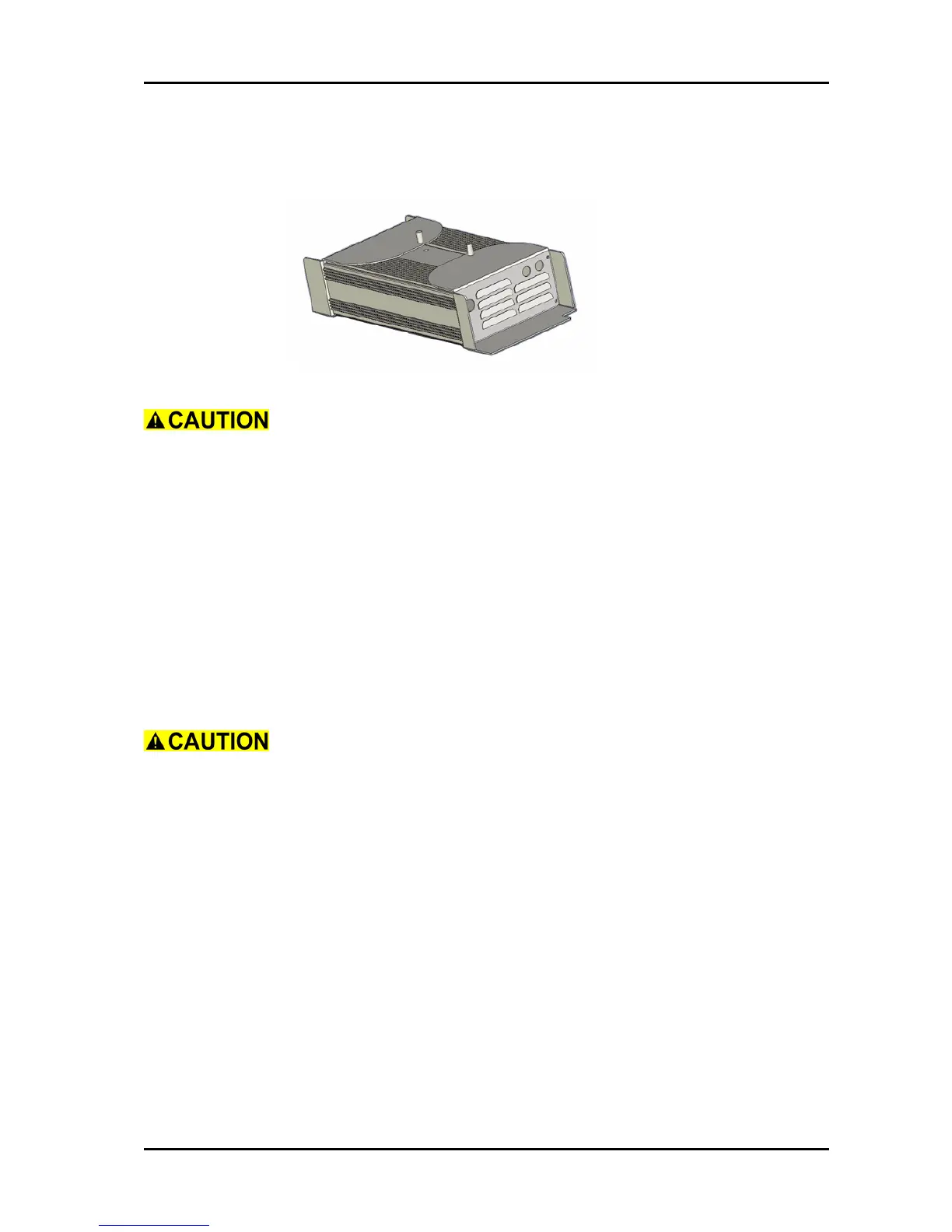

Picture 8: Charger
The DK charger model corresponds to the protection class II and is
therefore slightly different constructed.
6.2.4.1 Replacing of charger
Remove
• Unlock battery compartment by removing screws of locking
system.
• Open the battery compartment.
• Disconnect the wires for mains at the connection block on the
chassis.
• Disconnect the plug for communication.
• Remove the two nuts (04/104)
• Remove charger.
Make sure that you hold the charger when loosening the nuts.
Mount
• Position the new charger.
• Mount the two nuts.
• Connect the plug for communication.
• Connect the wires for the mains.
• Close and lock the battery compartment on both sides with the
screws of the locking system.
6.2.4.2 Connectors
On the charger itself there are no connectors. The following list describes the connec-
tions after the charger. These connections you find placed on the chassis.
