5.1.4.4 Replacing of pump

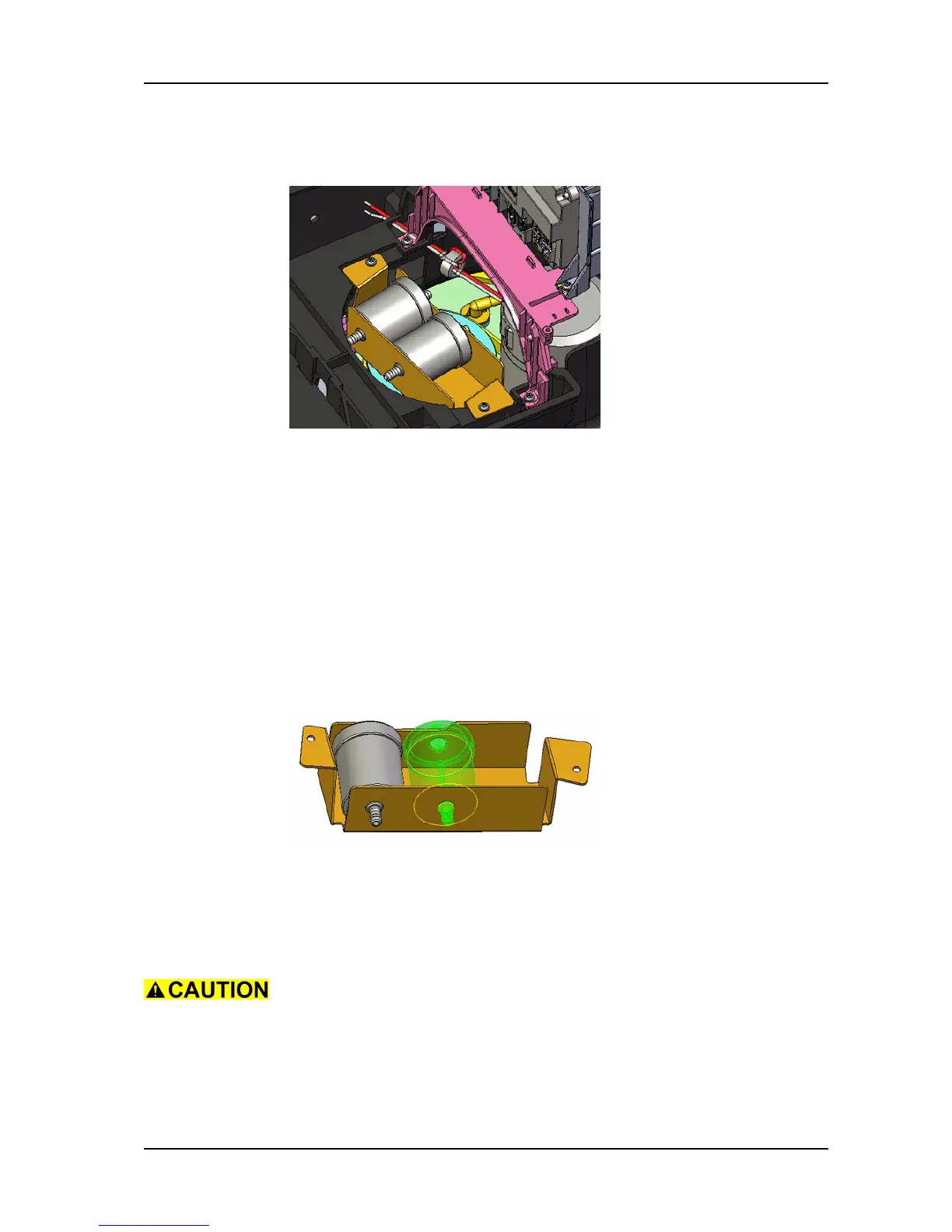

Picture 20: Pumps
Remove
• Unlock battery compartment by removing the screws of the
locking system.
• Open the battery compartment.
• Lower the brush drive unit to cleaning position without tools
underneath.
• Unscrew brush housing fixation screws.
• Remove the brush housing to get better access to the pump.
• Remove the screws (04/112) of the pump holder (04/122).
• Disconnect the pump wires.
• Loosen the hose clamps on both sides of the pump.
• Remove the fresh water hoses from the pump.
Picture 21: Pump
• Lift up pump holder and thread out pump from pump holder.
Mount
• Position new pump into pump holder.
Ensure that the pump is build in according to the water flow. The
arrow on the pump indicates the water flow direction.
