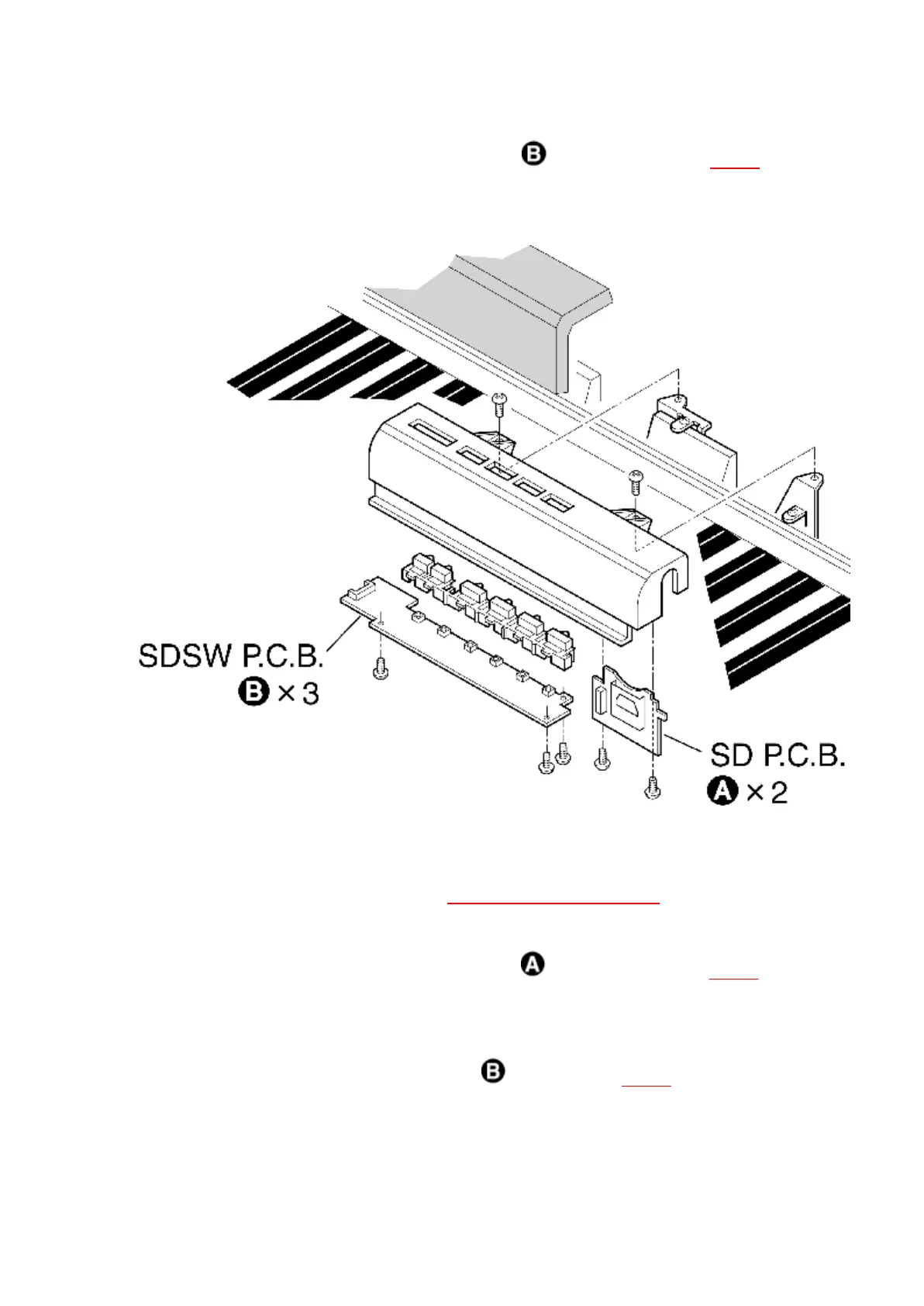

- Remove the SDSW P.C.B. mounting screws ( 3 pcs.) as shown in Fig.11 .
Fig.11
7.8. Removing the BEND and the HP P.C.B.
- Remove the top cabinet (see step “Removing the top cabinet ”).
BEND P.C.B.
- Remove the BEND P.C.B. mounting screws ( 2 pcs.) as shown in Fig.12 .
HP P.C.B.
- Remove the HP P.C.B. mounting screw( ) as shown in Fig.12 .
Fig.12
22
