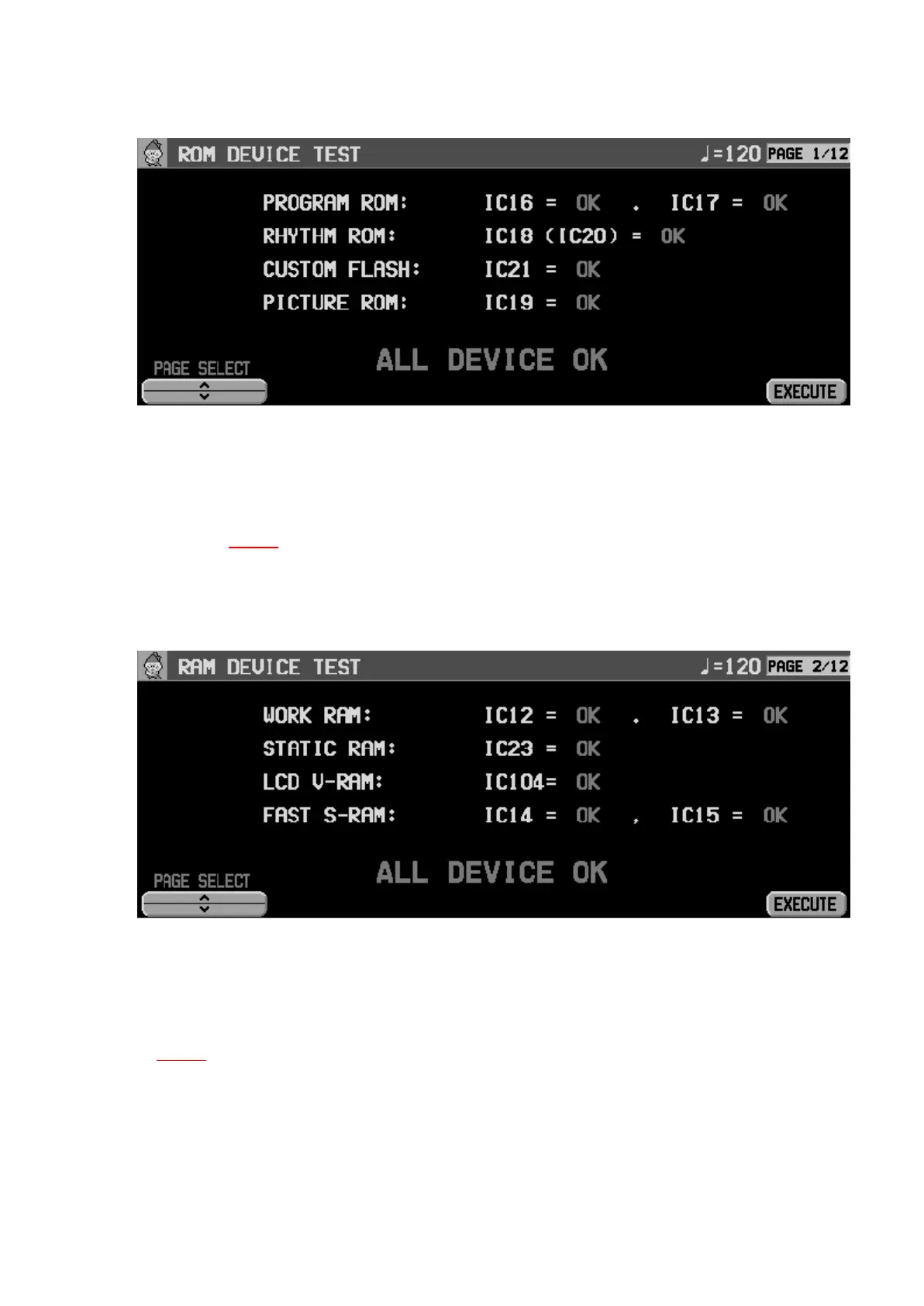

- Press the EXECUTE button to begin the test.
- The test result (OK or NG) is displayed within twenty seconds. If the test result is
NG, not only the respective IC, but also a break or short circuit in the ADDRESS/
DATA BUS as well as in any of the strobe signal lines may be the causeof thefailure.
(refer to Fig.22 )
8.2. RAM device test
Fig.23
- Press the EXECUTE button to begin the test.
- The test result (OK or NG) is displayed within a few seconds. If the test result is NG,
not only the respective IC, but a break or short circuit in the ADDRESS/DATA BUS
as well as in any of the strobe signal lines may be the causeofthe failure. (refer to
Fig.23 )
8.3. Other device test
Fig.24
29
