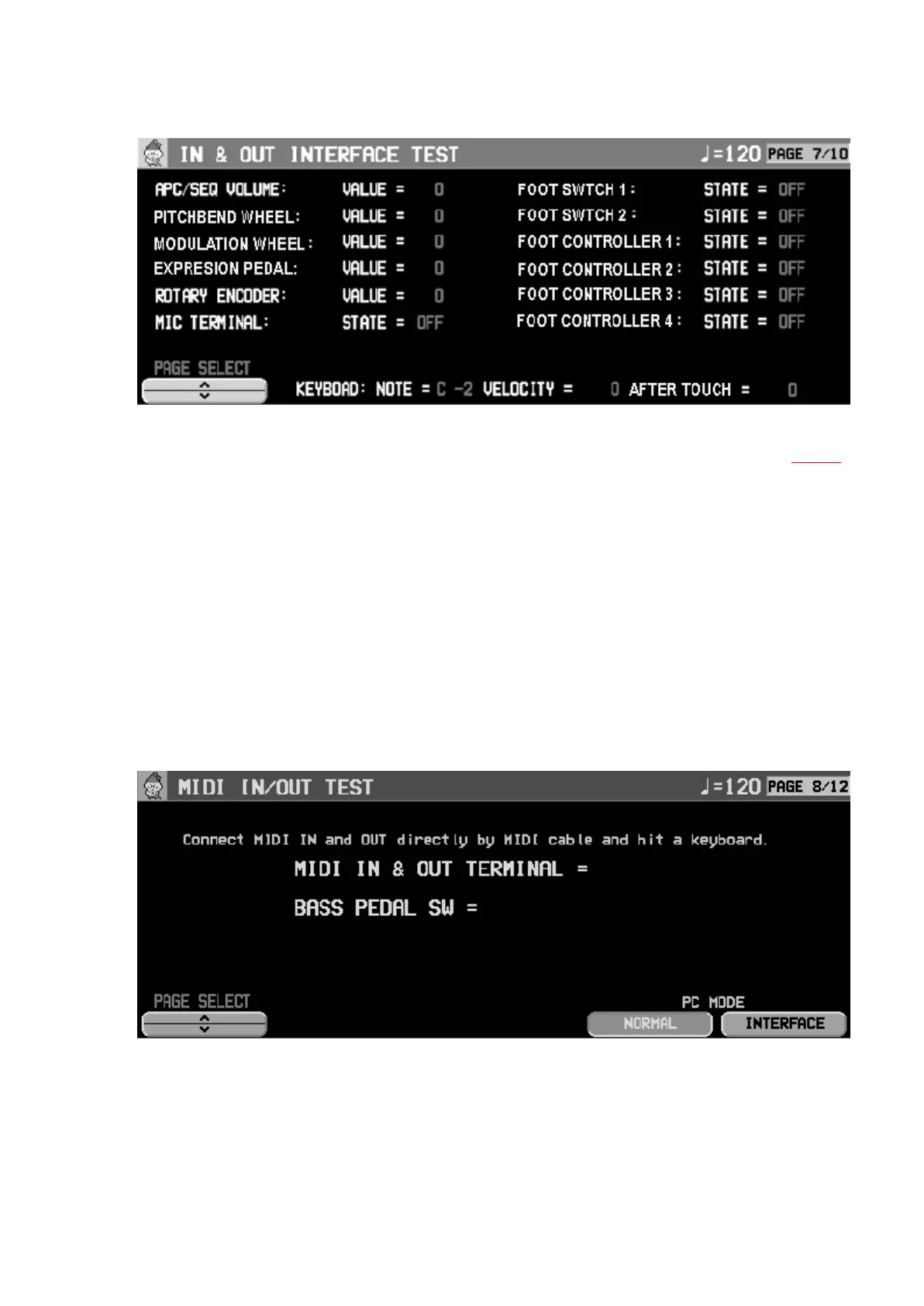

- The operation status of each input action part can be confirmed. If the part is
operating properly, “OK” is shown, excluding the Expression Pedal. (refer to Fig.28
)
- When a keyboard key is pressed, the corresponding pitch and velocity aftertouch is
displayed (only as long as the key is depressed).
- The respective statuses for other input action parts are displayed. (Analog parts are
shown as numerical values from 0 to 255, and switches are shown as ON or OFF.)
- If the display fails to change when the part is operated, or if the change is abnormal,
it may indicate a defective part.
8.8. MIDI IN/OUT test
Fig.29
- First, set the COMPUTER terminal switch to MIDI.
- Use a MIDI cable to directly connect the MIDI IN and MIDI OUT terminals.
- When a keyboard key is pressed, the transmitted and received data are compared
33
