5-25

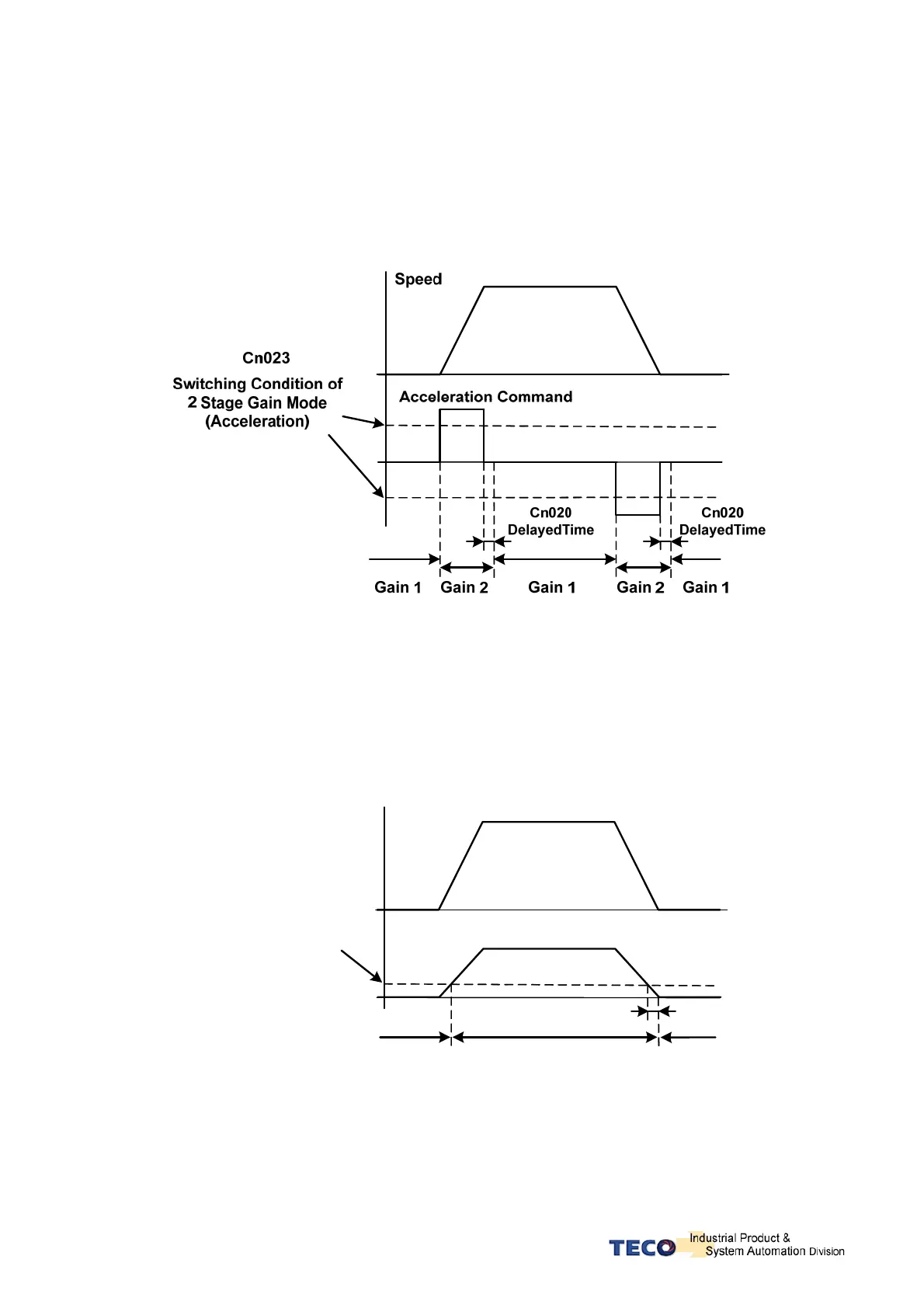

Automatic gain 1&2 switch condition (by Acceleration command).
When acceleration command is less than Cn023 Gain 1 is selected.
When acceleration command is greater than Cn023 Gain 2 is selected.
When Gain 2 is active and acceleration command becomes less than Cn023 system will automatically
switch back to Gain 1 the switch time delay can be set by Cn020.
As show in the diagram below :
Automatic gain 1&2 switch condition (by Position error value).
When position error value is less than Cn024 Gain 1 is selected.
When position error value is greater than Cn024 Gain 2 is selected.
When Gain 2 is active and position error value becomes less than Cn024 system will automatically switch
back to Gain 1 and the switch time delay can be set by Cn020.
As show in the diagram below :
Cn024
Switching Condition of
2 Stages Gain Mode
(Position Error Value)
Speed
Position Error Value
Cn020
Delay Time
Gain 1
Gain 1
Gain 2
To Next Page
