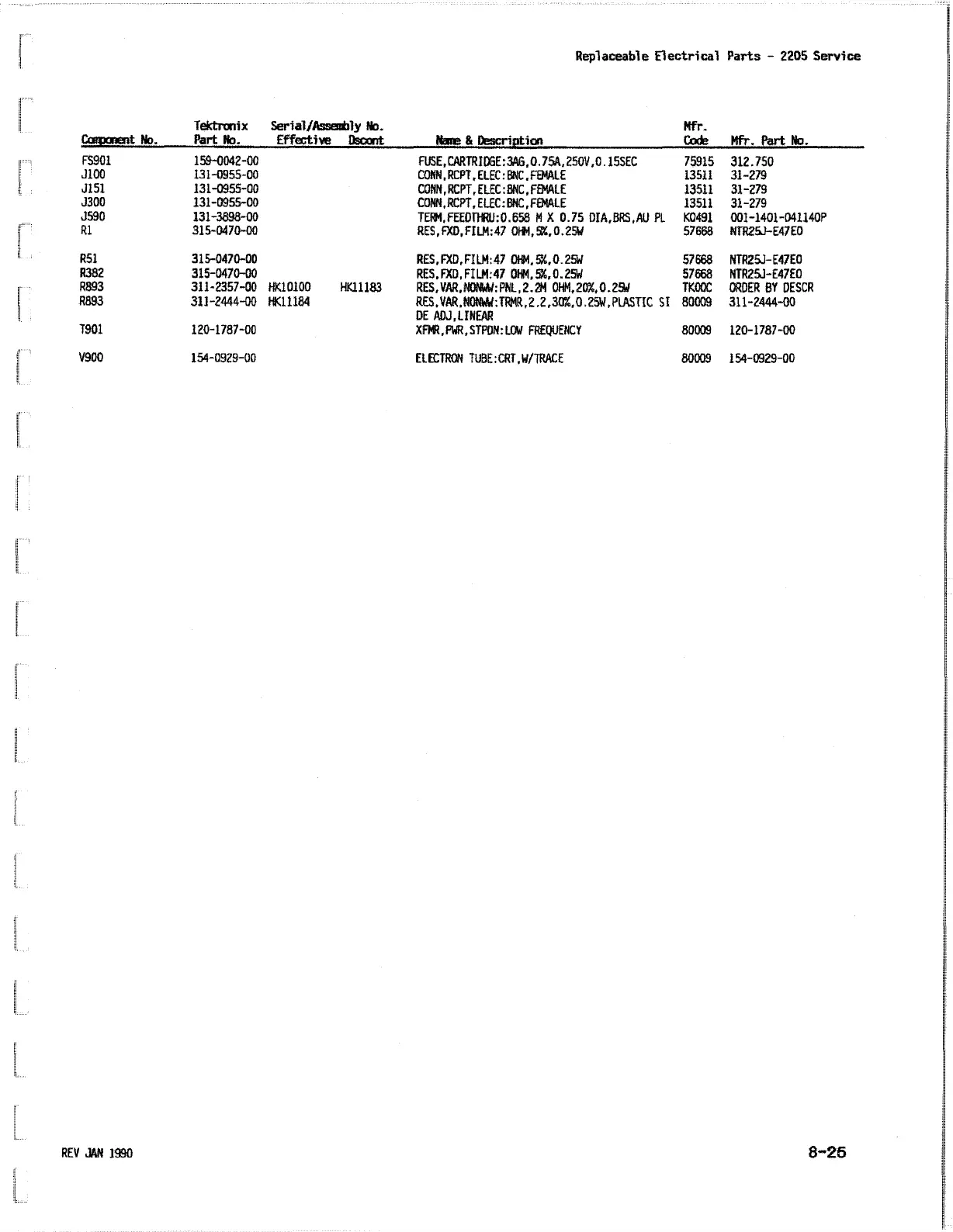

Tektronix 2205 Service Manual

Replaceable E le c tric a l P arts - 2Z05 S erv ice
Comxment No.
Tektronix
Part No.
Serial/A ssatfcly No.
E ffe ctiv e Qscant
None & Description
M fr.
Code
M fr. Part No.
FS9Q1 159-0042-00
RBE, CARTRIDGE :3AG, 0 .75A. 250V, 0 .15SEC m is 312.750
J100
131-0955-00
CONN. RCPT, ELEC:BNC. flMALE 13511 31-279
J151
131-0955-00
COHN,RCPT, ELEC:BNC, FEMALE
13511
31-279
J300 131-0955-00
CONN,RCPT,ELEC:BNC,FEMALE
13511 31-279
JS90
131-3898-00
TERM,FEEDTHRU:0.658 M X 0.75 0IA,BRS,AU PL
KQ491
001-1401-041140P
R1
315-0470-00
RES,FXO,FILM:47 0HM,5K,0.25W
57668
NTR25J-E47E0
RSI 315-0470-00
RES,FXD,FILM:47 0W.5%,0.25W
57668
NTR25J-E47E0
R3S2
315-0470-00
RES,FXD,FILM:47 0HM,SS,0.25W
57668
NTR25J-E47E0
R893
311-2357-00 HKIOIOO HK11183 RES,VAR,f®MA/:PNL,2.2M 0HM,20%,0.25W
TKOOC
ORDER BY DESCR
R893
311-2444-00
HO.U84
RES.VAR.tK»IMrf:TRMR,2.2,30%,0.2af,PLASTIC SI
DE MU,LINEAR
80009
311-2444-00
T901
120-1787-00 XFMR, PWR,STPON: LOW FREQUENCY
80009
120-1787-00
V900
154-0929-00
ELECTRON TUBE:CRT,W/TRACE 80009
154-0929-00
REV JAN 1990
8 - 2 5
