Tektronix 2205 Service Manual

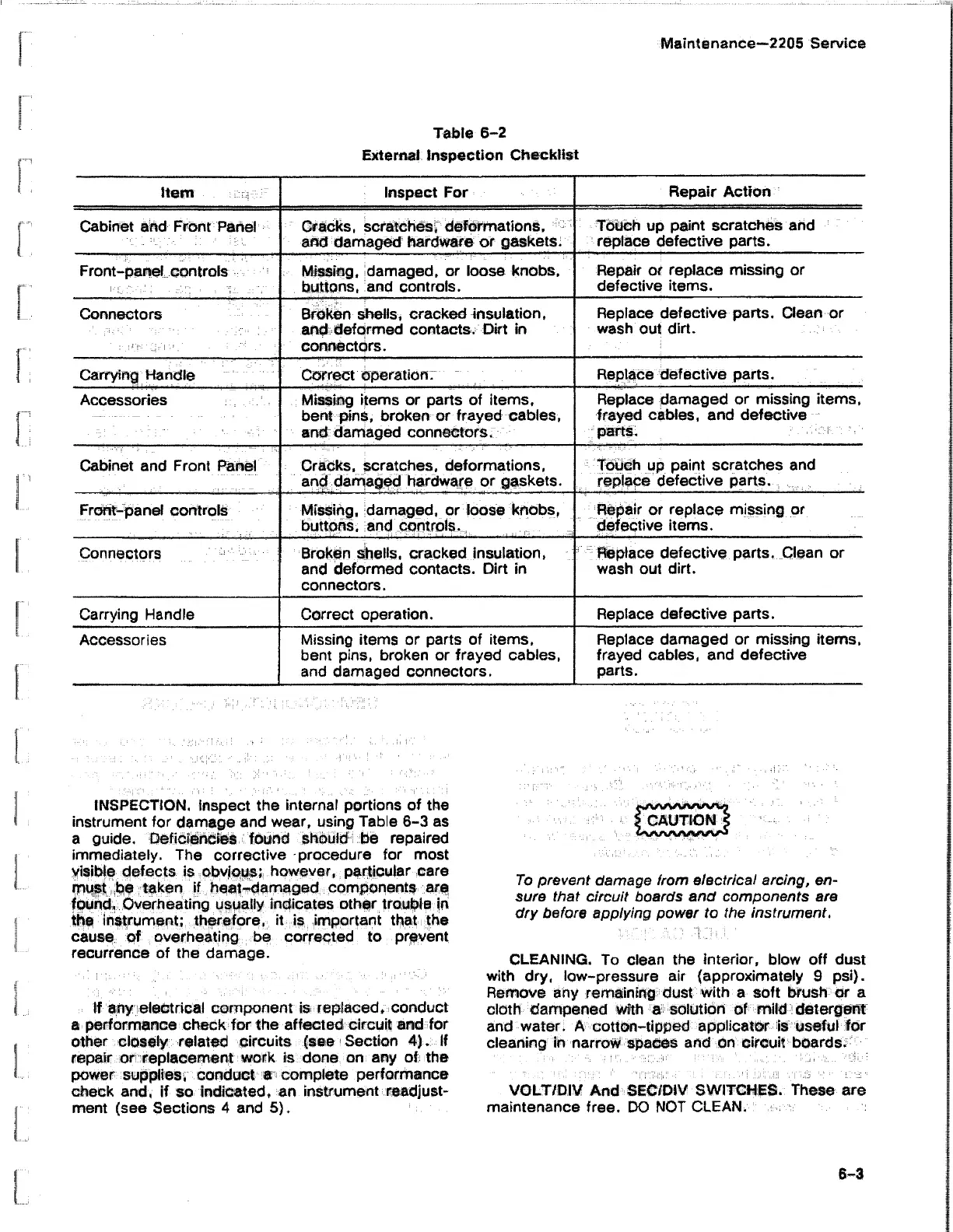

Maintenance—2205 Service
Table 6-2
External Inspection Checklist
Item
Inspect For
Repair Action
Cabinet and Front Panel Cracks, scratches, deformations, :
and damaged hardware or gaskets.
Touch up paint scratches and
replace defective parts.
Front-panel controls
Missing, damaged, or loose knobs,
buttons, and controls.
Repair or replace missing or
defective items.
Connectors
Broken shells, cracked insulation,
and deformed contacts. Dirt in
connectors.
Replace defective parts. Clean or
wash out dirt.
Carrying Handle
Correct operation.
Replace defective parts.
Accessories Missing items or parts of items,
bent pins, broken or frayed cables,
and damaged connectors.
Replace damaged or missing items,
frayed cables, and defective
parts.
Cabinet and Front Panel
Cracks, scratches, deformations,
and damaged hardware or gaskets.
Touch up paint scratches and
replace defective parts.
Front-panel controls
Missing, damaged, or loose knobs,
buttons, and controls.
Repair or replace missing or
defective items.
Connectors
Broken shells, cracked insulation,
and deformed contacts. Dirt in
connectors.
Replace defective parts. Clean or
wash out dirt.
Carrying Handle Correct operation.
Replace defective parts.
Accessories
Missing items or parts of items,
bent pins, broken or frayed cables,
and damaged connectors.
Replace damaged or missing items,
frayed cables, and defective
parts.
INSPECTION, inspect the internal portions of the
instrument for damage and wear, using Table 6-3 as
a guide. Deficiencies found should be repaired
immediately. The corrective procedure for most
visible defects is obvious; however, particular eare
must be taken if heat-damaged components are
found, Overheating usually indicates other trouble in
the instrument; therefore, it is important that the
cause of overheating be corrected to prevent
recurrence of the damage.
If any electrical component is replaced, conduct
a performance check for the affected circuit and for
other closely related circuits (see Section 4). If
repair or replacement work is done on any of the
power supplies, conduct a complete performance
check and, if so indicated, an instrument readjust
ment (see Sections 4 and 5).
To prevent damage from electrical arcing, en
sure that circuit boards and components are
dry before applying power to the instrument.
CLEANING. To clean the interior, blow off dust
with dry, low-pressure air (approximately 9 psi).
Remove any remaining dust with a soft brush or a
cloth dampened with a solution of mild detergent
and water. A cotton-tipped applicator is useful for
cleaning in narrow spaces and on circuit boards.
VOLT/DIV And SEC/DIV SWITCHES. These are
maintenance free. DO NOT CLEAN.
6-3
