Tektronix AFG3000 Series User Manual

Specifications
72 AFG3000 Series Quick Start User Manual

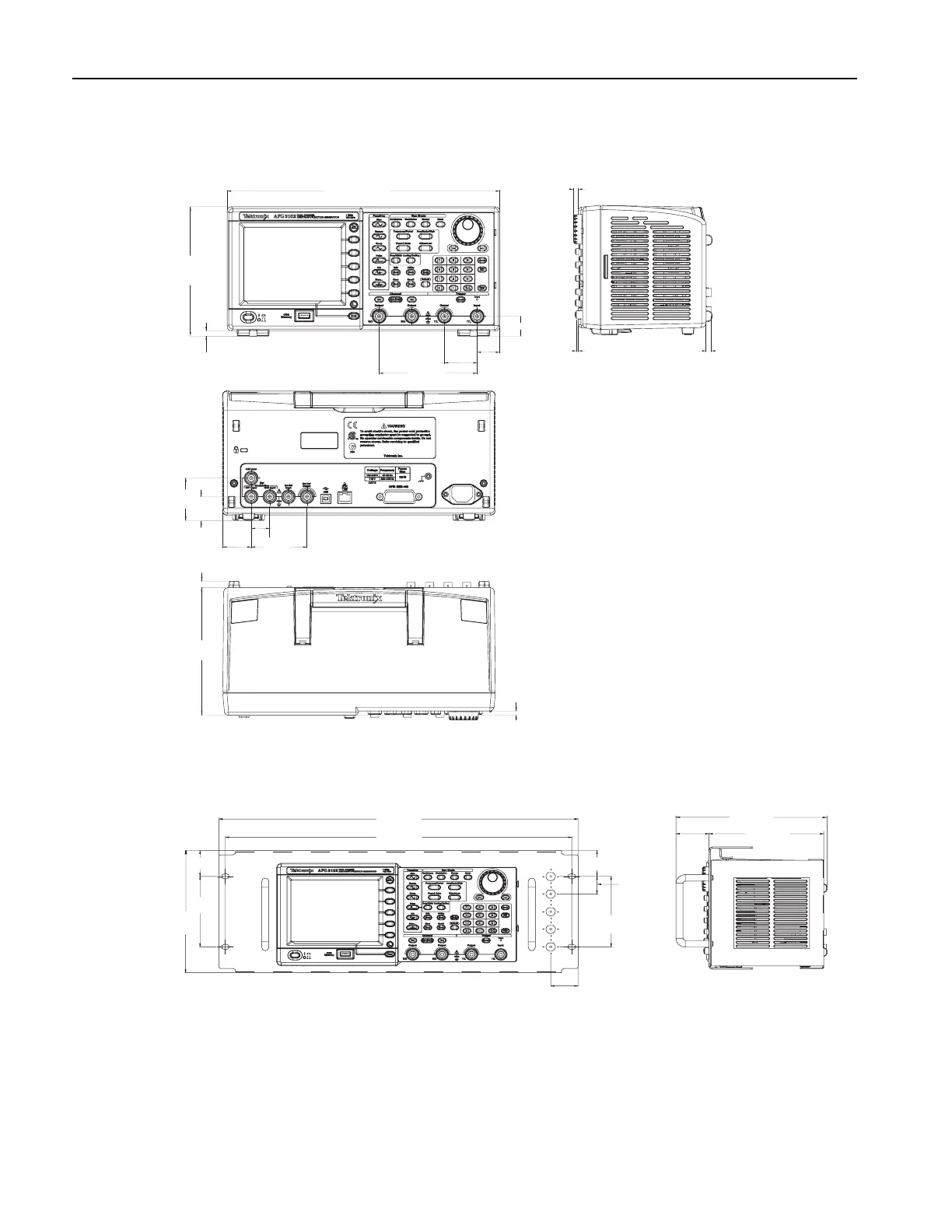

Instrument Dimensions
Dimensions of the RM3100 Rackmount
6.33.1
329.6
156.3
24.0
6.5
All dimensions are shown
in millimeters.
27.3
39.5
118.5
51.2
67.534.6
22.5
154.4
7.6
5.1
6.0
BNC connectors
28.7
BNC connectors
Knob
176.2
101.6
482.6
465.5
37.3
154.3
44.4
101.6
36.8
37.3
25.4
Front
RM3100 conforms to EIA-310-D specification.
Weight (without AFG3000 series): 2.1 kg
203.4

Tektronix AFG3000 Series Specifications

General

Brand	Tektronix
Model	AFG3000 Series
Category	Portable Generator
Language	English
