Tektronix MDO4104-3 User Manual

Get Acquainted w
ith the Instrument
Using the Men u System

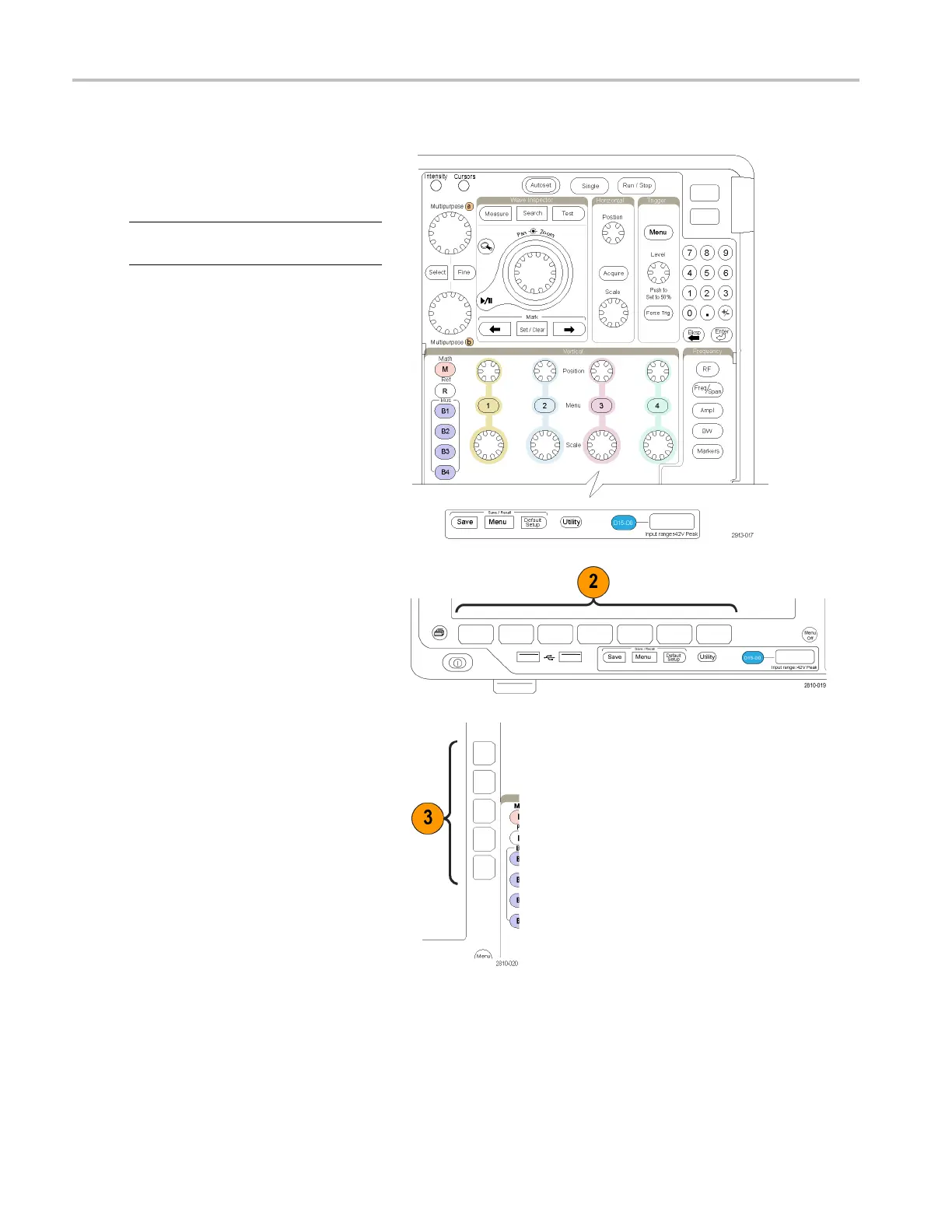

To use the menu system:
1. Push a front-panel menu button to
display the me
nu that you want to use.
NOTE. The B1 through B4 buttons support
up to four different serial or parallel buses.
2. Push a lower-bezel button to select a
menu item. If a pop-out menu appears,
turn multipurpose knob a to select
the desired choice. If a pop-up menu
appears, push the button again to select
the desired choice.
3. Push a s ide-bezel button to choose a
side-bezel menu item.
If the
menu item contains more than
one choice, push the side-bezel button
repeatedly to cycle through the choices.
If a po
p-out menu appears, turn
multipurpose knob a to select the desired
choice.
34 MDO4000 Series Oscilloscopes User Manual

Tektronix MDO4104-3 Specifications

General

Bandwidth	1 GHz
Channels	4
Memory Depth	20 Mpoints
Record Length	20 Mpoints
Vertical Resolution	8 bits
Display Size	10.4 inches
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Sample Rate	5 GS/s
Display	10.4 inch LCD, touch screen
Maximum Input Voltage	400 V (DC + AC peak)
Digital Voltmeter	Standard
Trigger Modes	Edge, Pulse, Video, Serial
Serial Triggering and Analysis	I2C, SPI, RS-232/422/485/UART, CAN, LIN, FlexRay, Ethernet
