TDS 420A, TDS 430A, TDS 460A & TDS 510A User Manual
2–11
Tutorial
This section quickly acquaints you with some of the fundamental operations
required to use your digitizing oscilloscope to take measurements. Start this
tutorial by doing Setting Up for the Examples.
Setting Up for the Examples
Perform the following tasks to connect input signals to the digitizing oscillo-
scope, to reset it, and to become acquainted with its display screen. Once
completed, these tasks ready the digitizing oscilloscope for use in the examples
that follow.
Remove all probes and signal inputs from the input BNC connectors along the
lower right of the front panel. Then, using one of the probes supplied with the
digitizing oscilloscope, connect from the CH 1 connector of the digitizing
oscilloscope to the Probe Compensation connector (Figure 2–1).
TDS 400A
TDS 510A

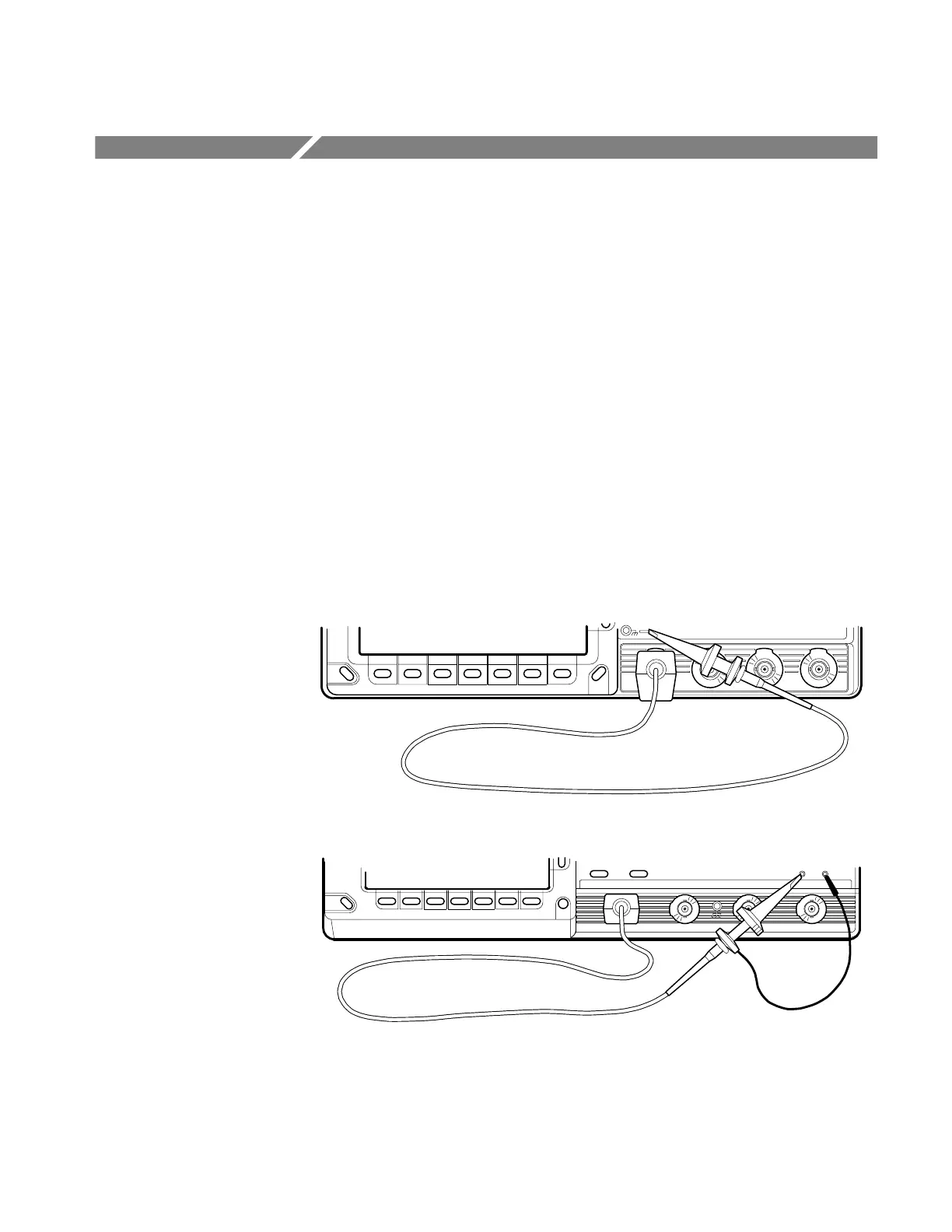

Figure 2–1: Connecting a Probe for the Examples
Connect the Input Signal
