Tektronix TDS 420A User Manual

Tutorial
TDS 420A, TDS 430A, TDS 460A & TDS 510A User Manual
2–17

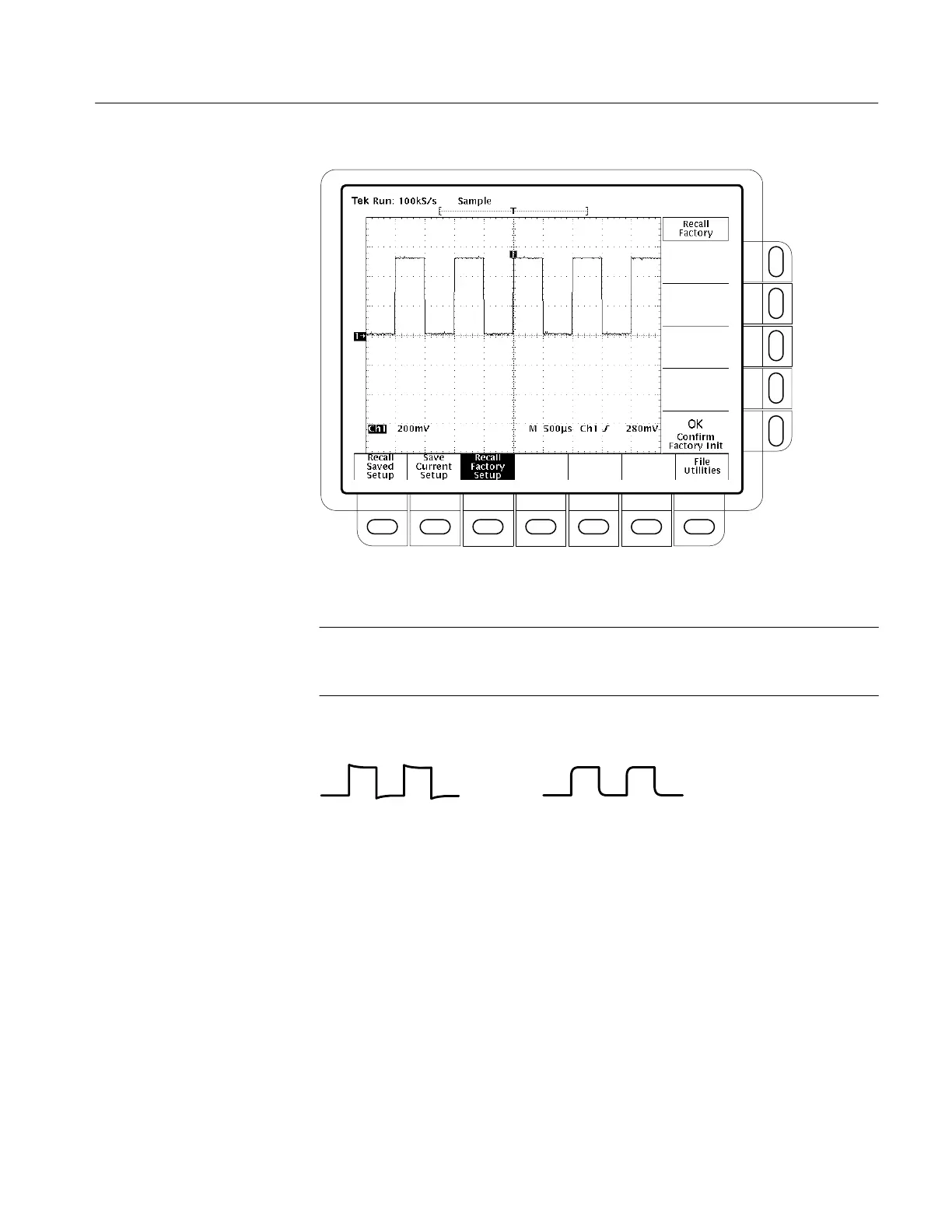

Figure 2–9: The Display After Pressing Autoset
NOTE. If the corners on your displayed signal look rounded or pointed (see
Figure 2–10), then you may need to compensate your probe. See pages 3–83 and
3–89 for probe calibration and compensation procedures.
Figure 2–10: Display Signals Requiring Probe Compensation
