Determining Status
The Status menu lets you see information about the oscilloscope state.
To Display the Status
To display the Status menu (see Figure 3–7):
Press SHIFT STATUS
➞ Status (main) ➞ System, Trigger, Waveforms, or
I/O
(side).
System displays information about the firmware, Horizontal, Zoom, Acquisition,
Limit Test, Measure, and Hardcopy (TDS 510A) systems.
Display displays information about the display system.
Trigger displays information about the triggers.
Waveforms displays information about the various waveforms, including live,
math, and reference.
I/O displays information about the I/O port(s).
Firmware Date

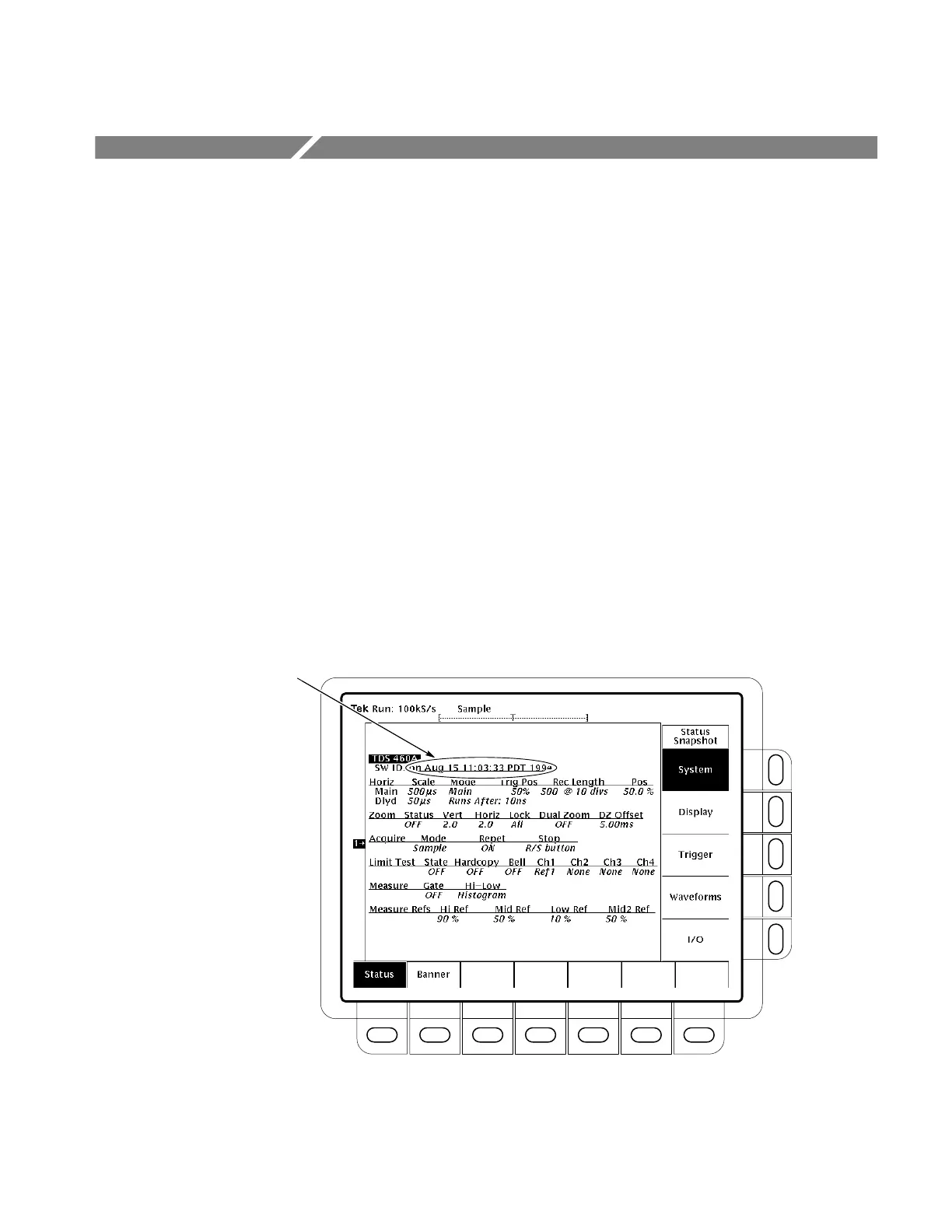

Figure 3–7: Status Menu — System (TDS 400A shown)
