Acquiring Waveforms
3-56
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual
Using FastFrame
CSA7000 Series & TDS 7000 Series: F astFrame is an acquisition mode that lets
you capture many records in a lar ger record, and then view and measure each
record individually.
FastFrame lets you quickly capture multiple acquisitions in the acquisition

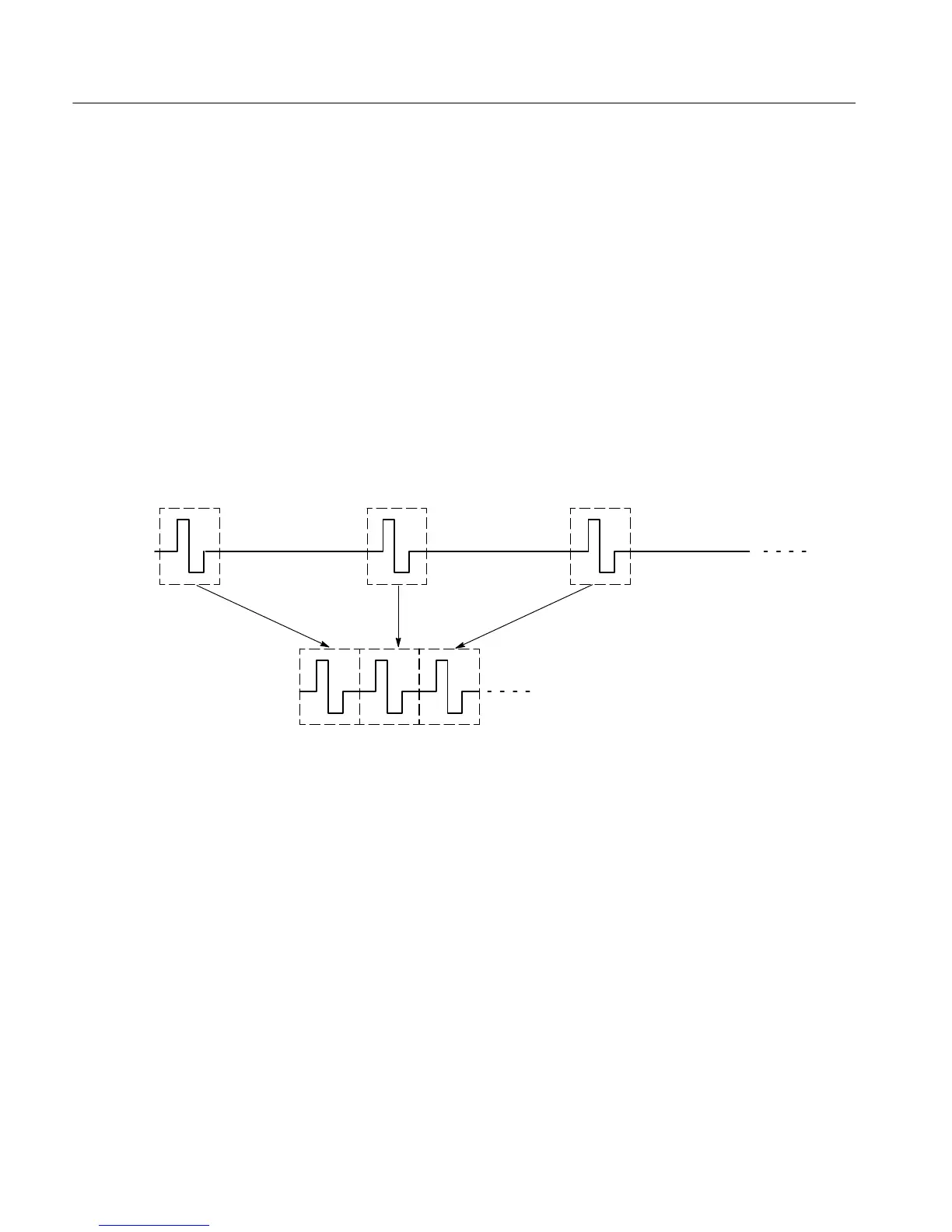

memory of a single channel. Figure 3--16 shows how FastFrame combines the
desired captured frames into one larger waveform. For example, FastFrame
would let you store 4000 frames (depending on the record length option
installed) of 500 samples each into one waveform.
FastFrame mode lets you jump to and view the frame that you select. Time
Stamps can display the absolute trigger time for a specific frame and the relative
time between triggers of two specified frames. FastFrame lets you compare
different waveforms. Math is available on each frame.
Real time
FastFrame
Figure 3- 16: FastFrame
