Creating and Using Math Waveforms

3- 230

CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual

Use the procedure that follows to select a predefined spectral math waveform.

Remember, a channel source should be acquiring or have acquired data. This

source does not have to be displayed to be used.

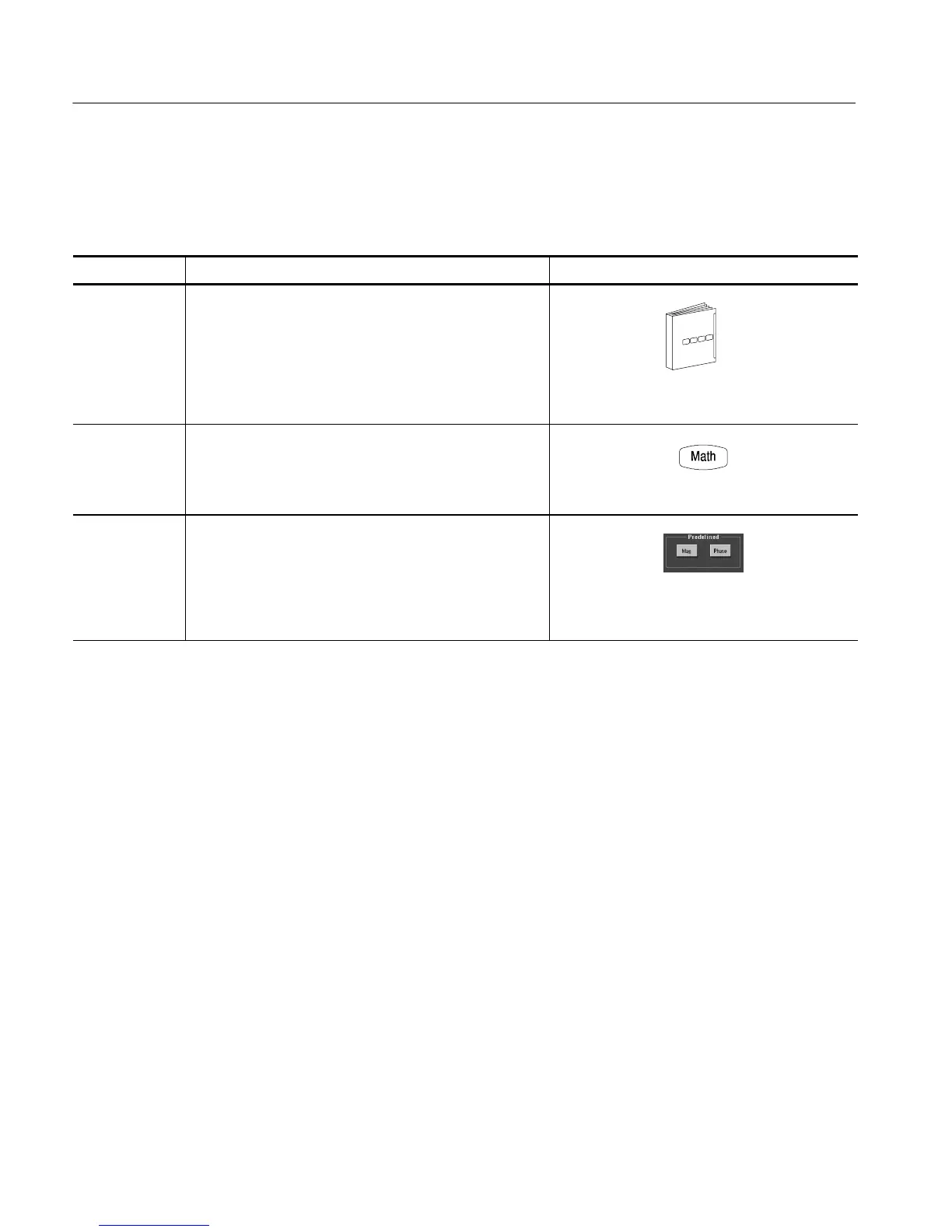

Overview To select a p redefined spectral math waveform Related control elements and resources

Prerequisites 1. All channel and reference Waveforms and automatic

measurement scalars that you will use in your math

waveform must be available (channels and references

contain data, measurement scalars are defined, and so

on).

See page page 3--34 for acquisition setup and page 3--71

for trigger setup.

Display the

math control

window

2. From the toolbar, touch the Math button to display the

Define Math control window.

Select a

predefined

spectral

analysis math

waveform

3. Touch Mag or Phase to select a predefined magnitude

or phase spectral analysis waveform. Selecti ng a

predefined spectral waveform turns on display of the

waveform.

To Select a Predefined

Spectral Math Waveform
