Acquiring Waveforms

3-14

CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual

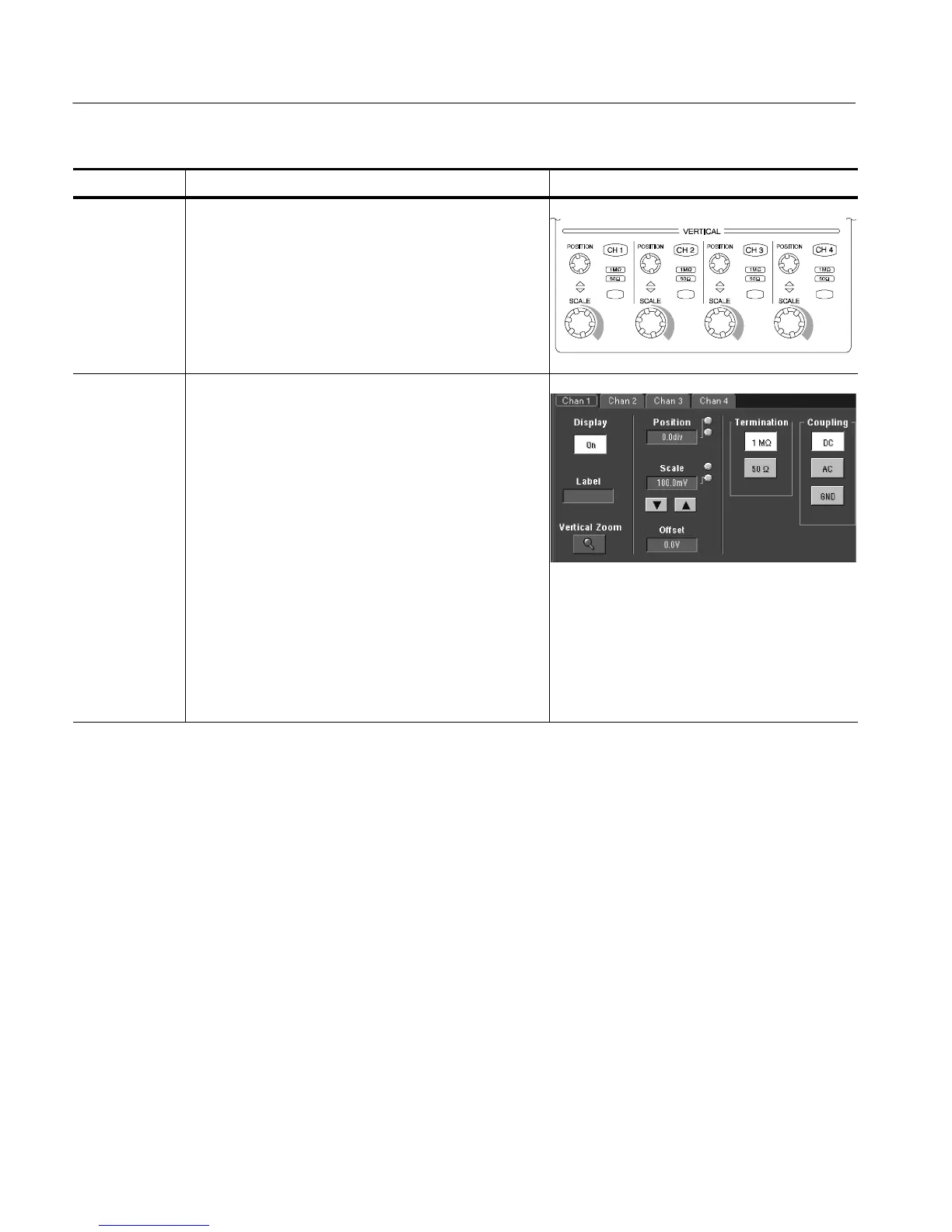

Overview Related control elements and resourcesTo set up signal input (Cont.)

Select input

termination

TDS7104 and TDS7054 only:

4. Push an input termination button to toggle between

1MΩ and 50 Ω input termination.

Hint. Some probes force the instrument to set the

termination that the probe requires.

Select input

coupling

5. Touch Vert to display the Vert ical control window. To

change the input coupling, select the channel tab and

then select from:

H DC to couple both the AC and DC components of

an input signal

H TDS7104 and TDS7054: AC to couple only the AC

components of an input signal

H GND to disconnect the input signal from the

acquisition

Touch Close to close the window.

Note. CSA7000 Series: If the O/E Electrical Out--to--

CH1 adapter is installed, the Termination, Coupling, and

Bandwidth selections are replaced with Wavelength and

Dark Level selections.
