Installation
1-10
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual
Turn on
the power.
Connect the
power cord.
Check the
fuses.
If needed, push the On/Standby
switch to power on the instrument.
21
4
3
Rear panel Front panel

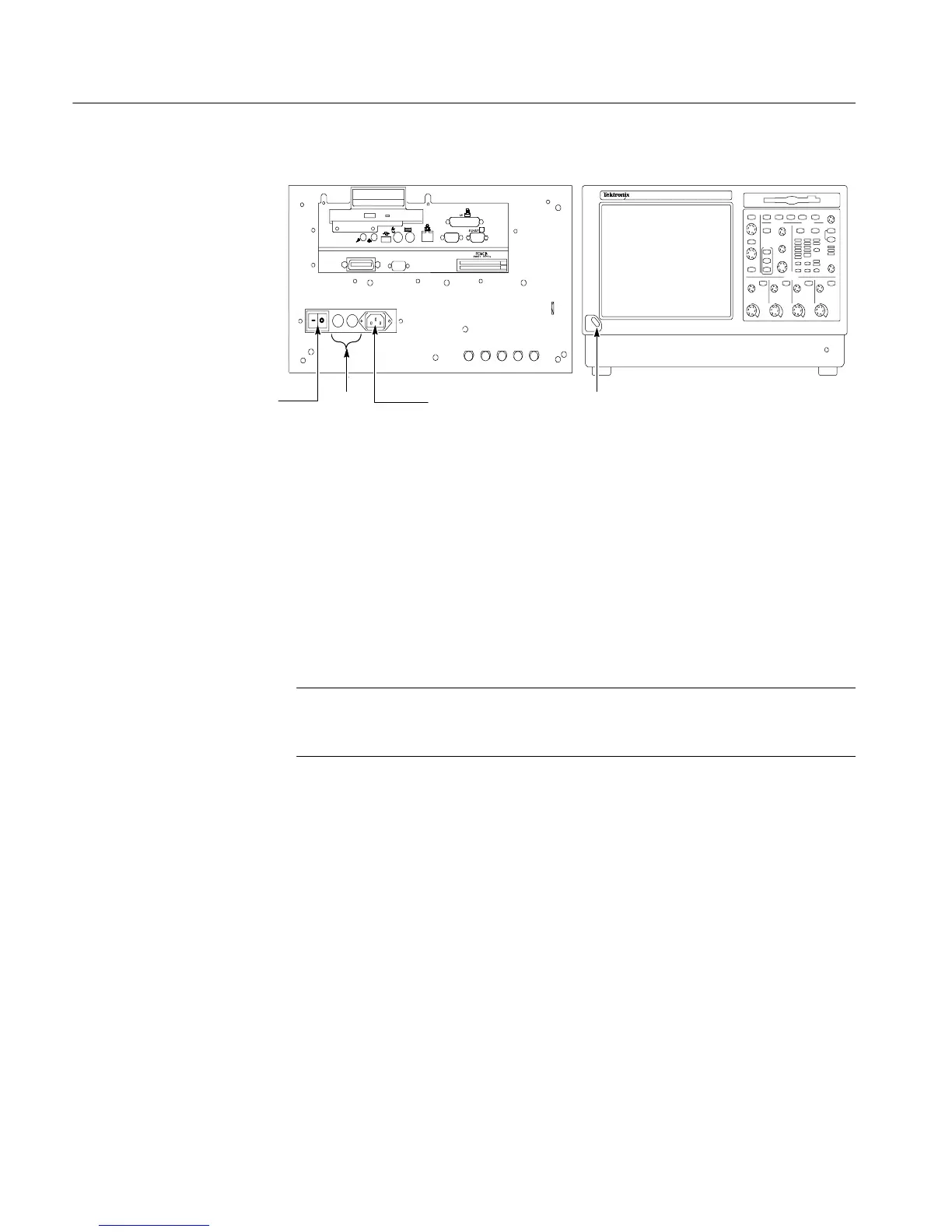

Figure 1- 2: Powering on the instrument
Shutting Down the Instrument
When you push the front-panel On/Standby switch, the instrument starts a
shutdown process (including a Windows shutdown) to preserve settings and then
removes power from most circuitry in the instrument. Avoid using the rear-panel
power switch or disconnecting the line cord to power off the instrument.
NOTE. If you do not use the On/Standby switch to shut down the instrument
before powering off the instrument, the instrument will be in the factory Default
Setup when powered on the next time.
To completely remove power to the instrument, perform the shutdown just
described, set the power switch on the rear panel to off, and then remove the
power cord from the instrument.
