Measuring Waveforms
3- 168
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual
Taking Histograms
The instrument can display histograms constructed from the selected waveform
data. You can display both vertical (voltage) and horizontal (time) histograms,
but only one at a time. Use histogram measurements to get statistical measure-
ment data for a section of a waveform along one axis.
Horizontal histogram
Histogram measurements

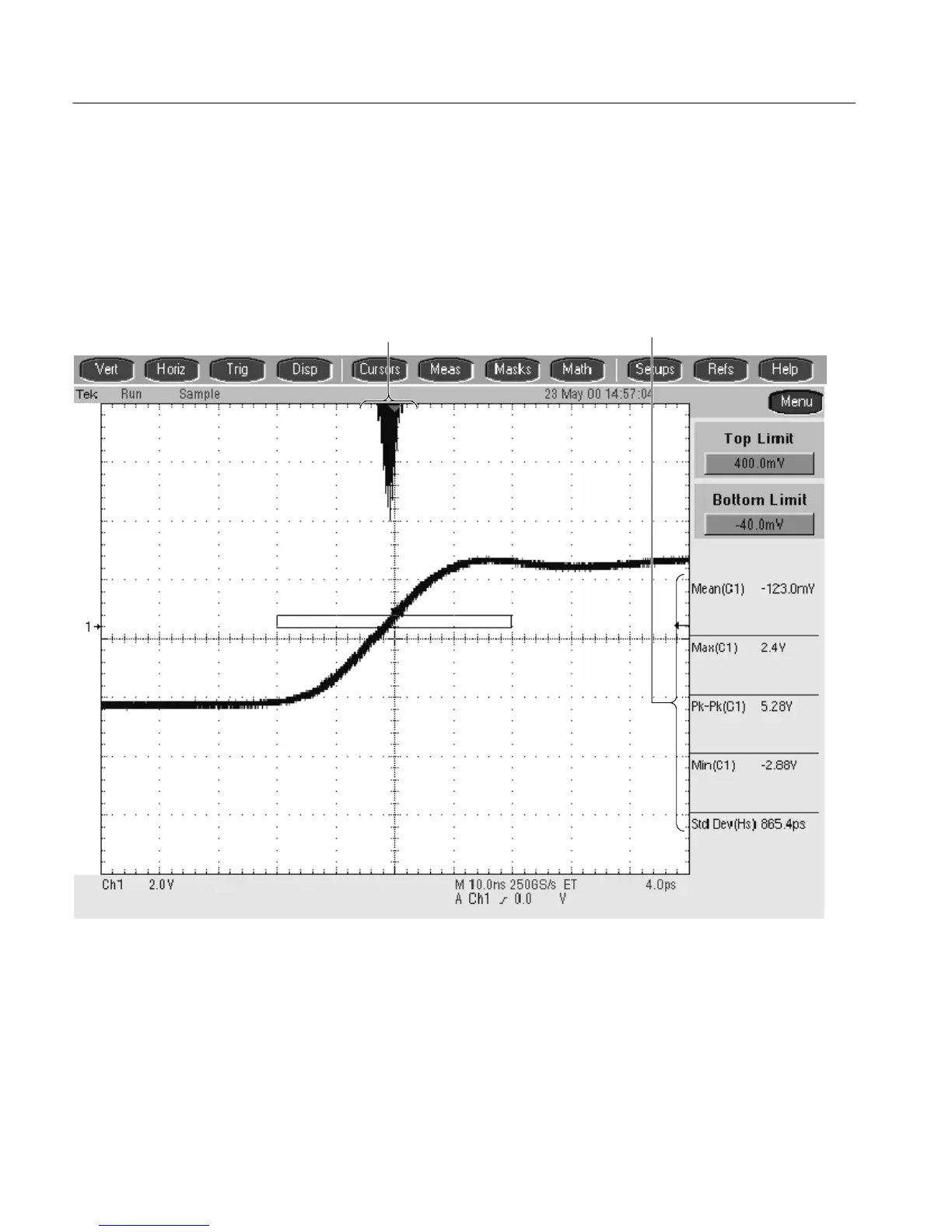

Figure 3- 39: Horizontal hist ogram view and measurement data
