Triggering
3-118
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual

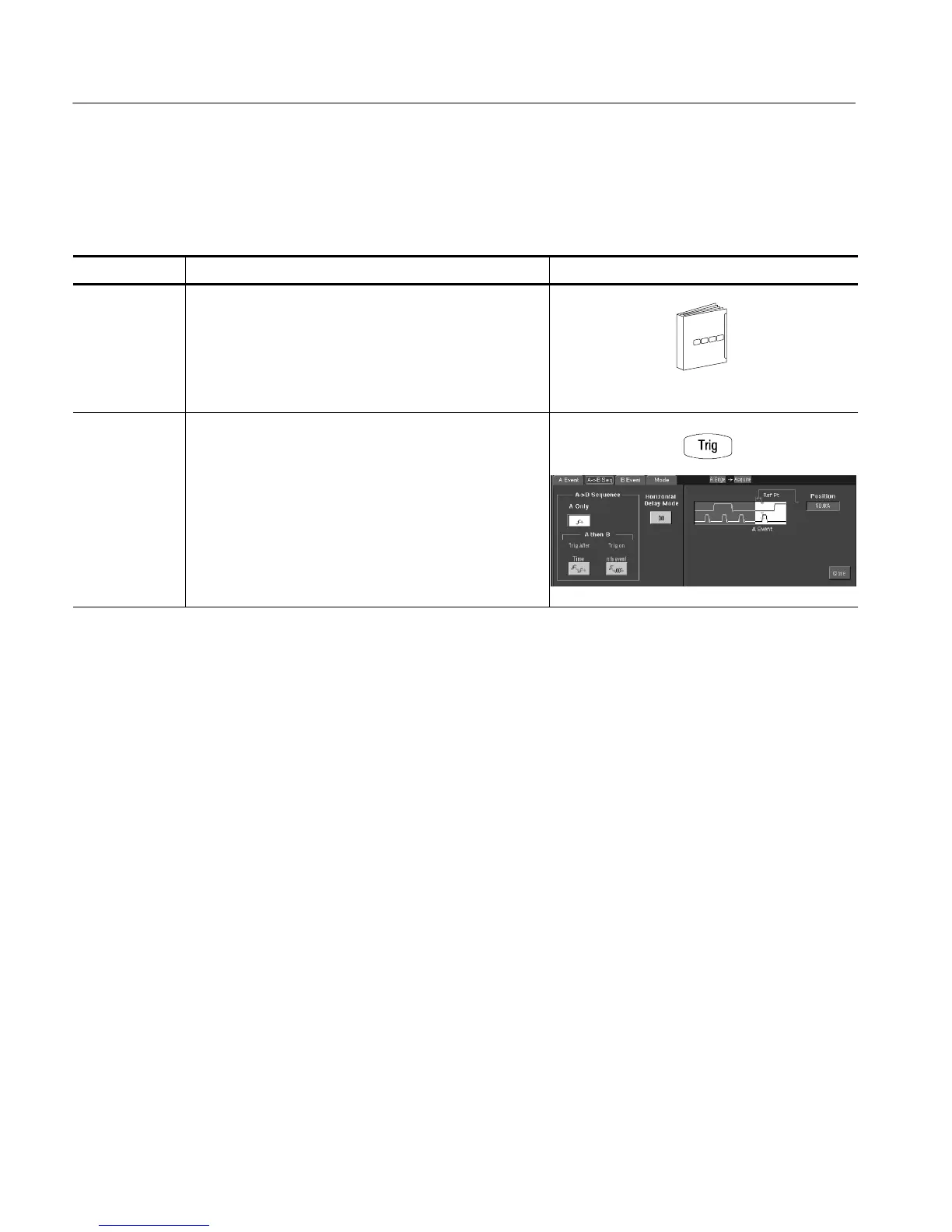

Use the procedure that follows when setting up the instrument to trigger on a
sequence. For more information, display online help while performing the
procedure.
Overview To trigger on a sequence Control elements and resources
Prerequisites 1. The instrument must be installed with a signal
connected to an input channel. Acquisition system
should be set to Run, and the vertical and horizontal
controls should be set appropriately for the signal to be
acquired.
See page 3--26 for acquisition setup
To trigger on
a (main) only
1. From the toolbar, touch Trig and select the A-->B Seq
tab of the Trigger control window.
2. Touch A Only to turn off sequential triggering.
To Trigger on a Sequence
To Next Page
