CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual
System Overview Maps
The instrument is a highly capable waveform acquisition, test, and measurement
system. The following model provides background information on its operation,
which, in turn, may provide you insight on how the instrument can be used.

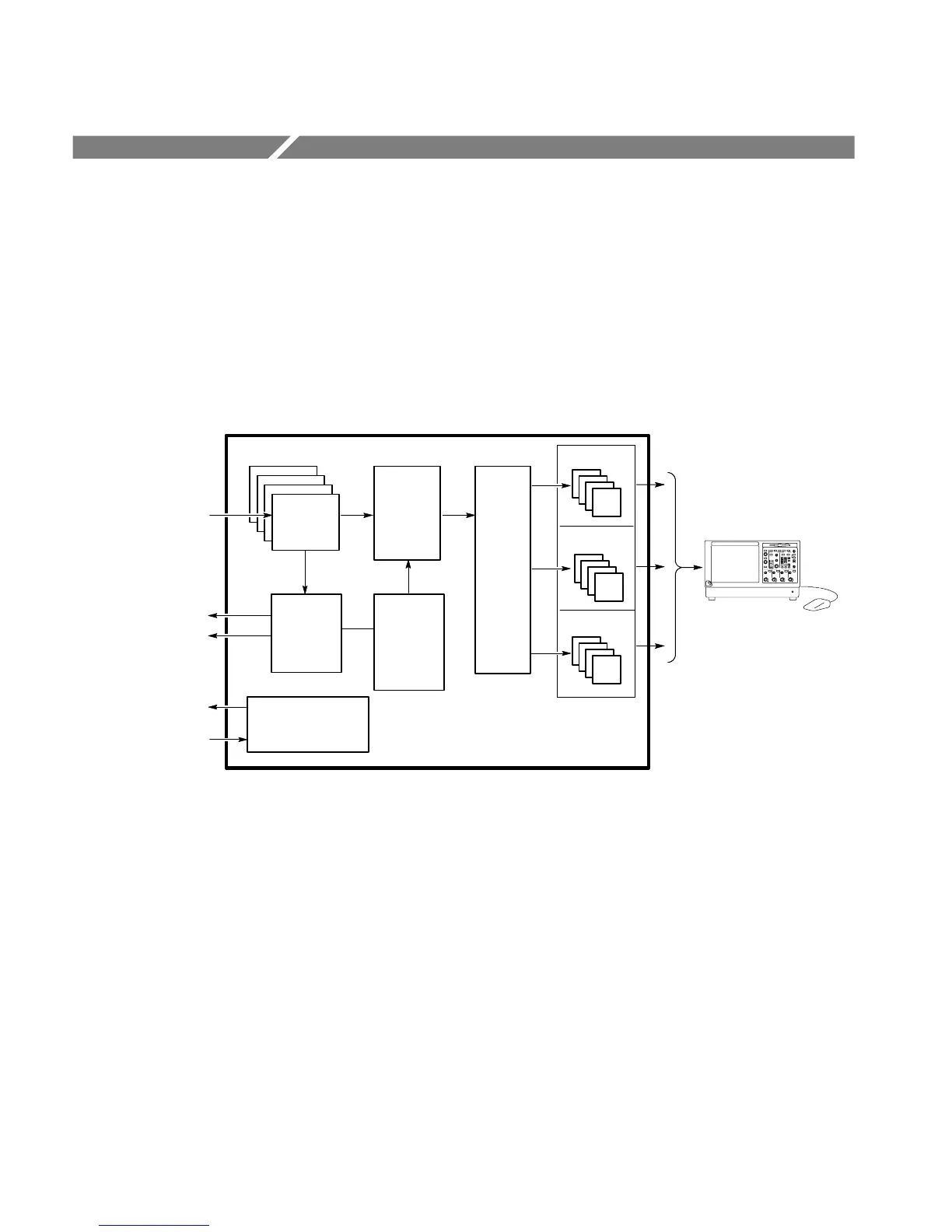

Functional Model Map
Input channels
Timebase
system
CH 1--4
CH 1--4
Math 1--4
Acquisition
system
DSP
Output &
Storage
Digital Signal Acquisition
Amplitude
scaling
page 3--20
page 3--26
pages
3--147,
3--185,
pages
3--124,
3--185
Trigger
system
page 3--71
Ref 1--4
Display & UI
Signal Processing
& Transformation
Page 3--123
Optical-to-electrical
converter
CSA7000 Series
Optical input
Electrical output
Recovered clock output
Recovered data output
The model comprises four high-level subsystems or processes (embodying a
variety of hardware and software functions) and the data that connects them:
H Digital Signal Acquisition System. Acquires a waveform record from each
signal that you input to each channel using the following subsystems:
H Input Channels. Conditions the input signal, primarily through the use
of analog hardware, before the signal is converted to digital form.
