Tenda AC7 User Manual

5
1.2.3 AC6 & AC10
The Ethernet ports of AC6 are fast Ethernet ports, and those of AC10 are gigabit ports. Both
products are similar in appearance. AC10 is used for illustration here.

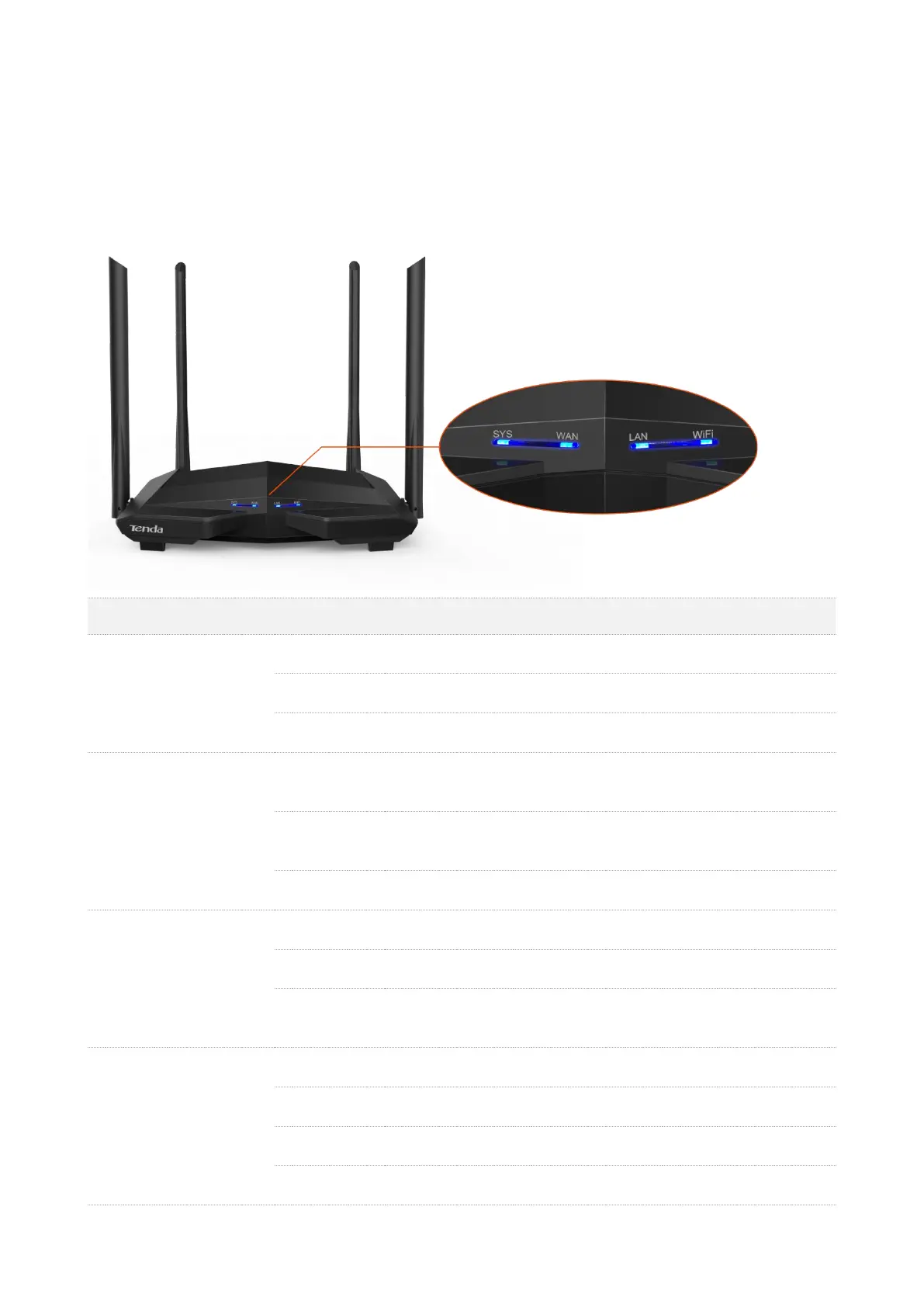

LED indicator
LED indicator
Status
Description
SYS
System LED
indicator
Solid on
The system is starting up, or does not work properly (during use).
Blinking
The system is working properly.
Off
The system is faulty, or the router is not powered on properly.
WAN
WAN port LED
indicator
Solid on
The WAN port is connected properly, but no data is being
transmitted over the WAN port.
Blinking
The WAN port is connected properly, and data is being
transmitted over the WAN port.
Off
The WAN port is disconnected or improperly connected.
LAN
LAN port LED
indicator
Solid on
At least one LAN port (port 1, 2 or 3/IPTV) is connected properly.
Blinking twice
A new wired device is connected to the router.
Off
No wired device is connected to any LAN port of the router, or
the wired device is not connected properly.
WiFi
WiFi & WPS
LED indicator
Solid on
At least the 2.4 GHz or 5 GHz WiFi network is enabled.
Fast blinking
Data is being transmitted wirelessly.
Slow blinking
The router is performing WPS negotiation.
Off
The WiFi network is disabled.

Tenda AC7 Specifications

General

VPN support	IPsec pass through, PPTP pass through, L2TP pass through, PPTP server, PPTP client, L2TP client
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
USB port	No
Ethernet LAN (RJ-45) ports	4
Transmit power	30 dBmW
Antennas quantity	5
Antenna gain level (max)	6 dBi
Product type	Tabletop router
Product color	Black
LED indicators	LAN, System, WAN
Output current	1 A
Output voltage	9 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Package type	Box
Package weight	860 g
Number of products included	1 pc(s)
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Firewall security	Forbid UDP flood attack, Forbid TCP flood attack, Forbid flood attack, Forbid WAN PING from internet
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	141.5 mm
Width	220 mm
Height	49 mm
Weight	360 g
