Tenda AC7 User Manual

37

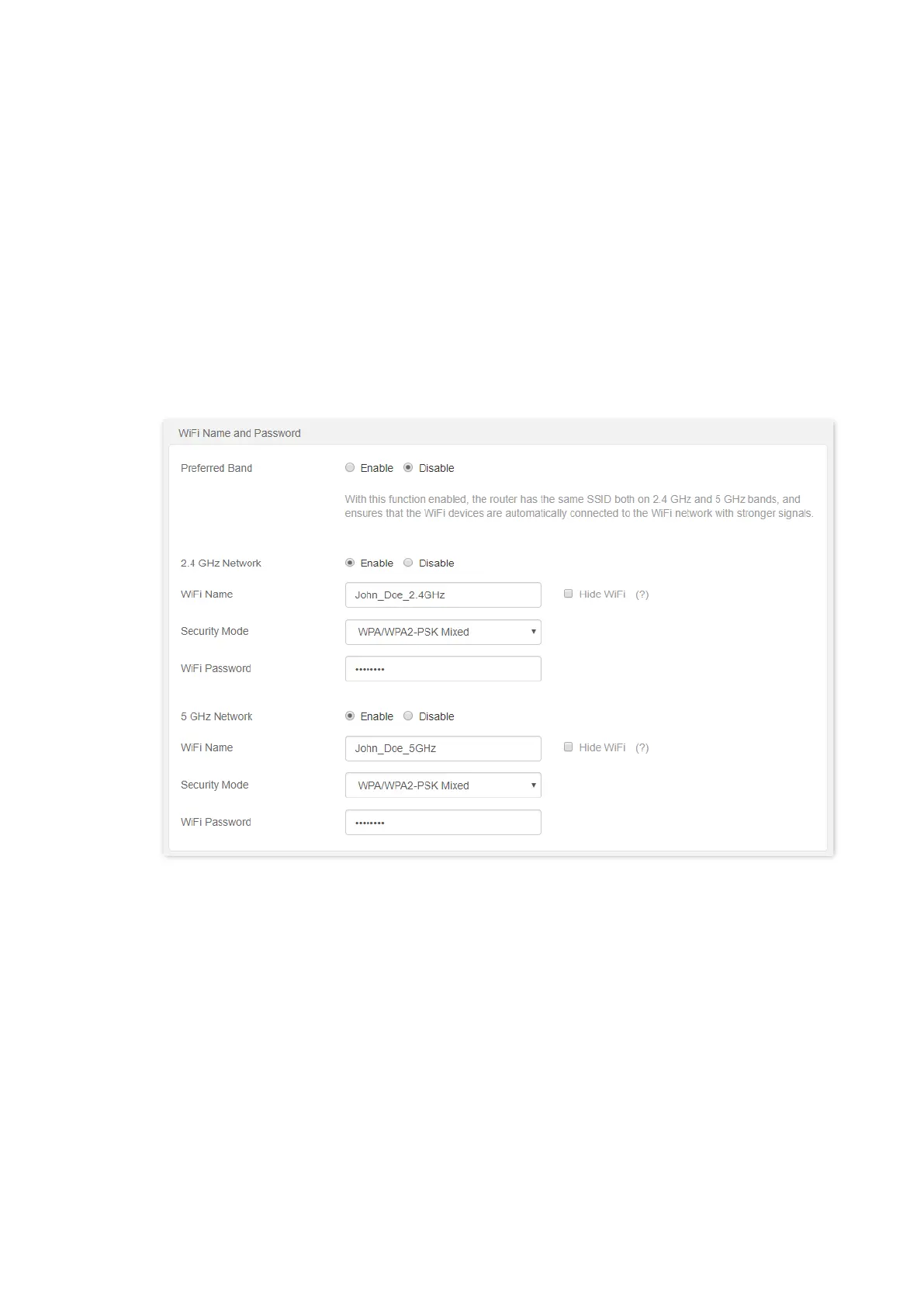

1. Change the WiFi Name of the 2.4 GHz network, which is John_Doe_2.4GHz in this
example.
2. Choose an Encryption Mode, which is WPA/WPA2-PSK Mixed in this example.
3. Change the WiFi Password of the 2.4 GHz network, which is Tenda+Wireless24 in this
example.
Step 5 Change the parameters of the 5 GHz network.
1. Change the WiFi Name of the 5 GHz network, which is John_Doe_5GHz in this example.
2. Choose an Encryption Mode, which is WPA/WPA2-PSK Mixed in this example.
3. Change the WiFi Password of the 5 GHz network, which is Tenda+Wireless5 in this
example.
Step 6 Click OK on the bottom of the page.
---End
When completing the configurations, you can connect your wireless devices to the WiFi networks
of the router to access the internet.
5.1.4 Hide the WiFi network
Configuring procedures:
Step 1 Start a web browser on a device connected to the router and visit tendawifi.com to log in
to the web UI of the router.
Step 2 Choose Wireless Settings > WiFi Name and Password.
Step 3 Tick Hide WiFi of the target network.
Step 4 Click OK on the bottom of the page.

Tenda AC7 Specifications

General

VPN support	IPsec pass through, PPTP pass through, L2TP pass through, PPTP server, PPTP client, L2TP client
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
USB port	No
Ethernet LAN (RJ-45) ports	4
Transmit power	30 dBmW
Antennas quantity	5
Antenna gain level (max)	6 dBi
Product type	Tabletop router
Product color	Black
LED indicators	LAN, System, WAN
Output current	1 A
Output voltage	9 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Package type	Box
Package weight	860 g
Number of products included	1 pc(s)
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Firewall security	Forbid UDP flood attack, Forbid TCP flood attack, Forbid flood attack, Forbid WAN PING from internet
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	141.5 mm
Width	220 mm
Height	49 mm
Weight	360 g
