9.4 Port forwarding
9.4.1 Overview
By default, internet users cannot actively access the LAN of the router.
The port forwarding function opens a port of the router, and binds the LAN server to the port using
the server’s IP address and intranet service port. All access requests to the WAN port of the router
will be directed to the server. Therefore, the server within the LAN can be accessed by internet
users and the LAN can be free from attacks from the internet.
For example, the port forwarding function enables internet users to access web servers or FTP
servers within the LAN.

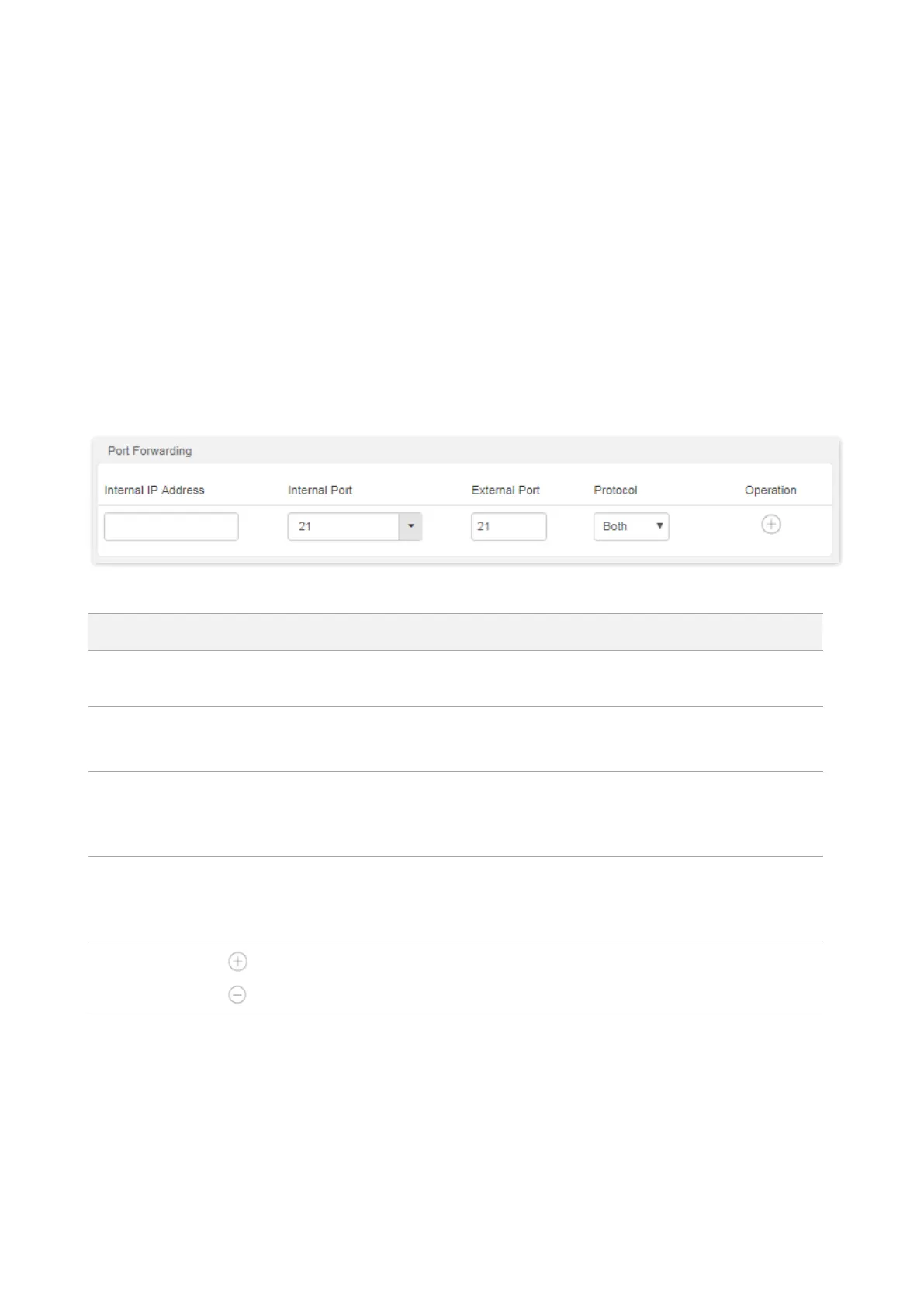

To access the configuration page, log in to the web UI of the router, and choose Advanced > Port
Forwarding.
Parameter description
Parameter
Description
Internal IP
Address
It specifies the IP address of a server that resides on the LAN.
Internal Port
It specifies the service port number of the internal server.
You can either choose a port from the drop-down list or specify a port manually.
External Port
It specifies the service port number for internet users to access a specified service.
When the internal port is selected or specified, the external port will be occupied
automatically. You can also change it as required.
Protocol
It specifies the protocol that specified service uses.
Both indicates that both TCP and UDP are used. If you are uncertain about it, Both is
recommended.
Operation
: It is used to add a port forwarding rule.
: It is used to delete a port forwarding rule.
9.4.2 Enable internet users to access LAN resources using an IP
address
Scenario: You have set up an FTP server within your LAN.
Goal: Open the FTP server to internet users and enable family members who are not at home to
access the resources of the FTP server from the internet.

Tenda AC7 Specifications

General

VPN support	IPsec pass through, PPTP pass through, L2TP pass through, PPTP server, PPTP client, L2TP client
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
USB port	No
Ethernet LAN (RJ-45) ports	4
Transmit power	30 dBmW
Antennas quantity	5
Antenna gain level (max)	6 dBi
Product type	Tabletop router
Product color	Black
LED indicators	LAN, System, WAN
Output current	1 A
Output voltage	9 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Package type	Box
Package weight	860 g
Number of products included	1 pc(s)
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Firewall security	Forbid UDP flood attack, Forbid TCP flood attack, Forbid flood attack, Forbid WAN PING from internet
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	141.5 mm
Width	220 mm
Height	49 mm
Weight	360 g
