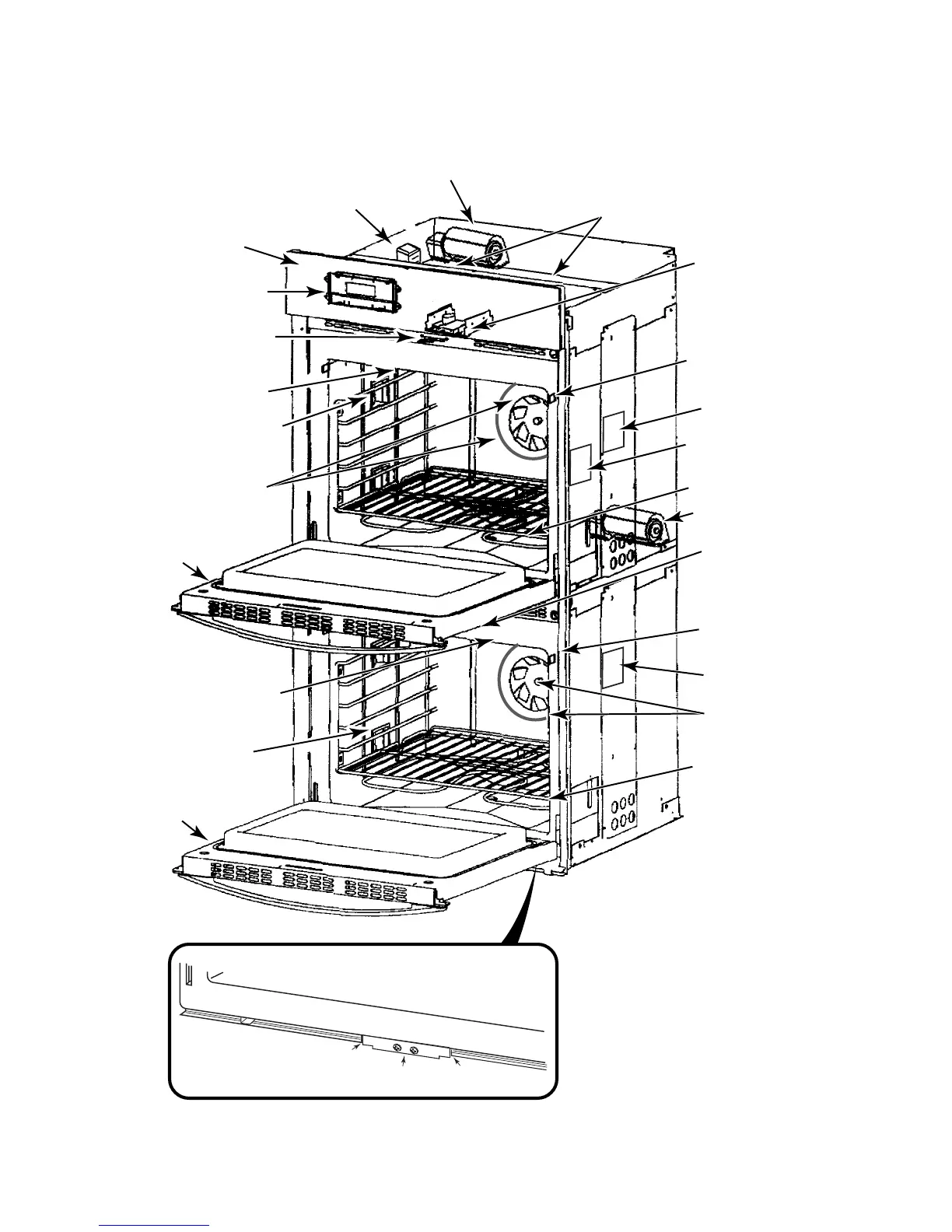

OVEN COMPONENT LOCATIONS
SERVICING THE COMPONENTS
Air Switch
Bracket
Upper Oven
Air Switch
Lower Oven
Air Switch
Figure 1
Upper Blower
Lower Blower
Lamp Transformer
Display Head
Upper Oven
Door Latch
Control Panel
Upper Broil
Element
Lower Broil
Element
Upper Oven
Door
Lower Bake Element
(Hidden on “C” Ovens)
Lower Oven
Door
Upper Halogen
Lamp
Lower Halogen
Lamp
Upper & Lower
Relay Boards
& Oven
Stalled Fan Relays
Upper Oven
Light Switch
Upper Halogen Lamp
Meat Probe Jack
Upper Oven
Hi-Temp Cutout
Lower Oven
Hi-Temp Cutout
& Oven Door Latch
Lower Oven
Light Switch
Lower Oven
Convection Bake
Element & Fan
Upper Oven
Convection Bake
Element & Fan
Lower Halogen Lamp
Upper Bake Element
(Hidden on “C” Ovens)
