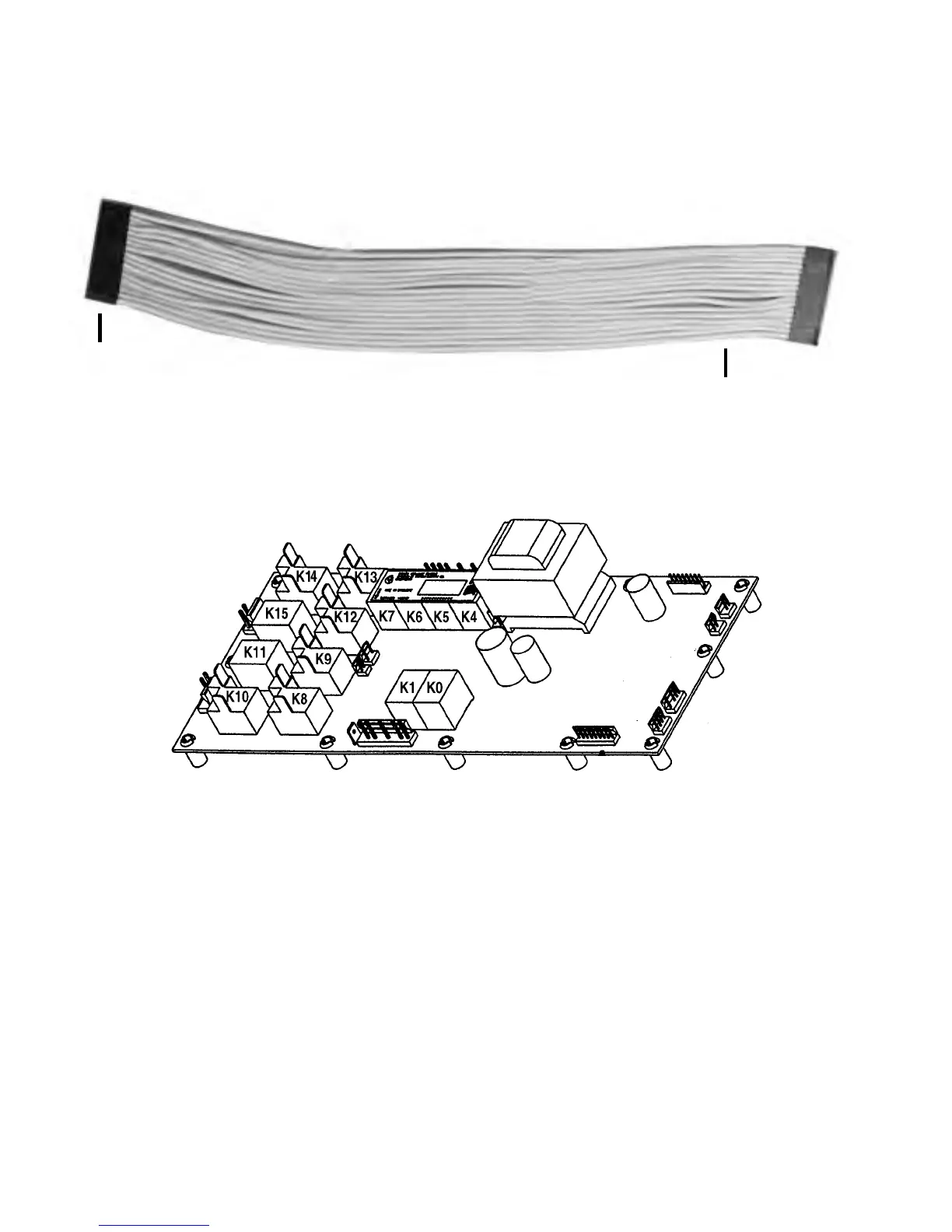

Explanation of the
Wire Harness
The wire harness’ slide onto the pin headers of the relay board, display head, and touch
control boards. The illustration above shows the pin headers on the relay board.
The wire harness is shown in the illustration above.
PIN HeaderPIN Header
➞
➞
Connector Housing
Wires
➛
➛
Page 4
