Thermador C302 User Manual

REMOVING THE “C” OVEN MODULE
(27") Convection Kit—#35-00-686
(30") Convection Kit—#35-00-687

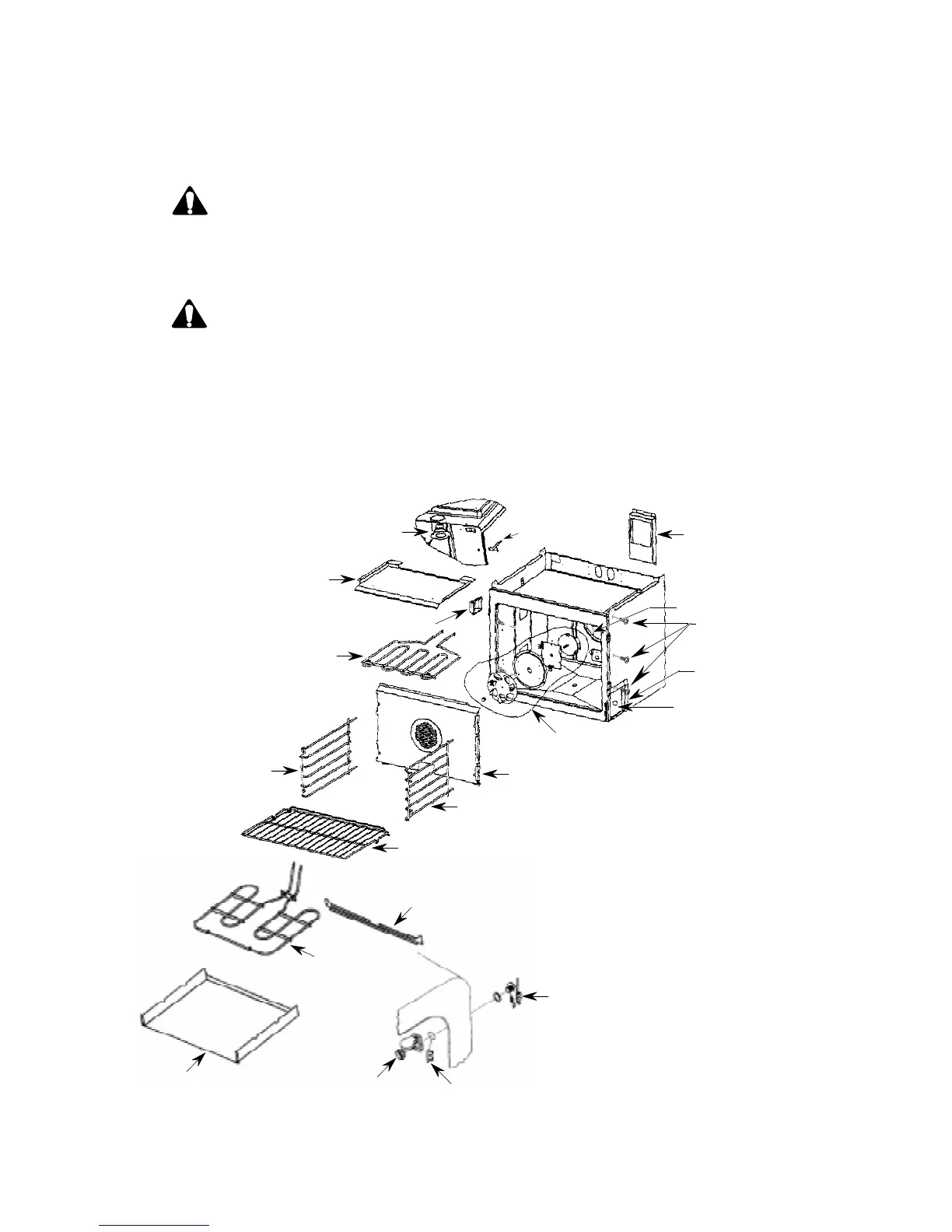

Figure 35
WARNING
Turn off the electrical power circuit to the
oven at the main junction box before ser-
vicing this unit.
When you work on the oven, be careful
when handling the sheet metal parts. There
are sharp edges present and you can cut
yourself if you are not careful.
CAUTION
1. Turn off the electrical power to the oven.
2. To make servicing easier, remove the oven
door (see page 2-29).
3. Remove the oven from the wall.
4. Remove the components from the oven,
shown in Figure 35. Refer to the sections
in this manual for the procedures on re-
moving the components.
5. With all of the oven components removed,
remove the six screws (three on each side)
from the front sides of the oven can.
6. Pull the oven can forward and remove it.
“C” Oven Module Kit
Oven Can Screws
(3 on each side)
Convection Mtg.
Bracket Cover
Thermal
Sensor
Catalyst
Halogen Lamp
Reflector
Convection Motor
Assembly
Broil Element
Convection Baffle
Hidden Element
Cover
Left Rack Support
Right Rack Support
Meat Probe
Receptacle
Counter Support
Hinge
Counter Support
Bracket (L & R)
Convection Element
Meat Probe
Hole Plug
Meat Probe
Receptacle Cover
Hidden Element
Enclosure
Hidden Bake
Element
Convection Rack
Page 47
