Refrigeration Service Operations
NOTE: It is generally good practice to replace the filter drier whenever the high side is opened or when the low side is
opened for an extended period of time.
COMPRESSOR
Removal
1. Remove the refrigerant charge from the system.
2. Loosen the drive belt adjuster and remove the compres-
sor drive belt.
3. Disconnect the discharge, suction and liquid injection
hoses.

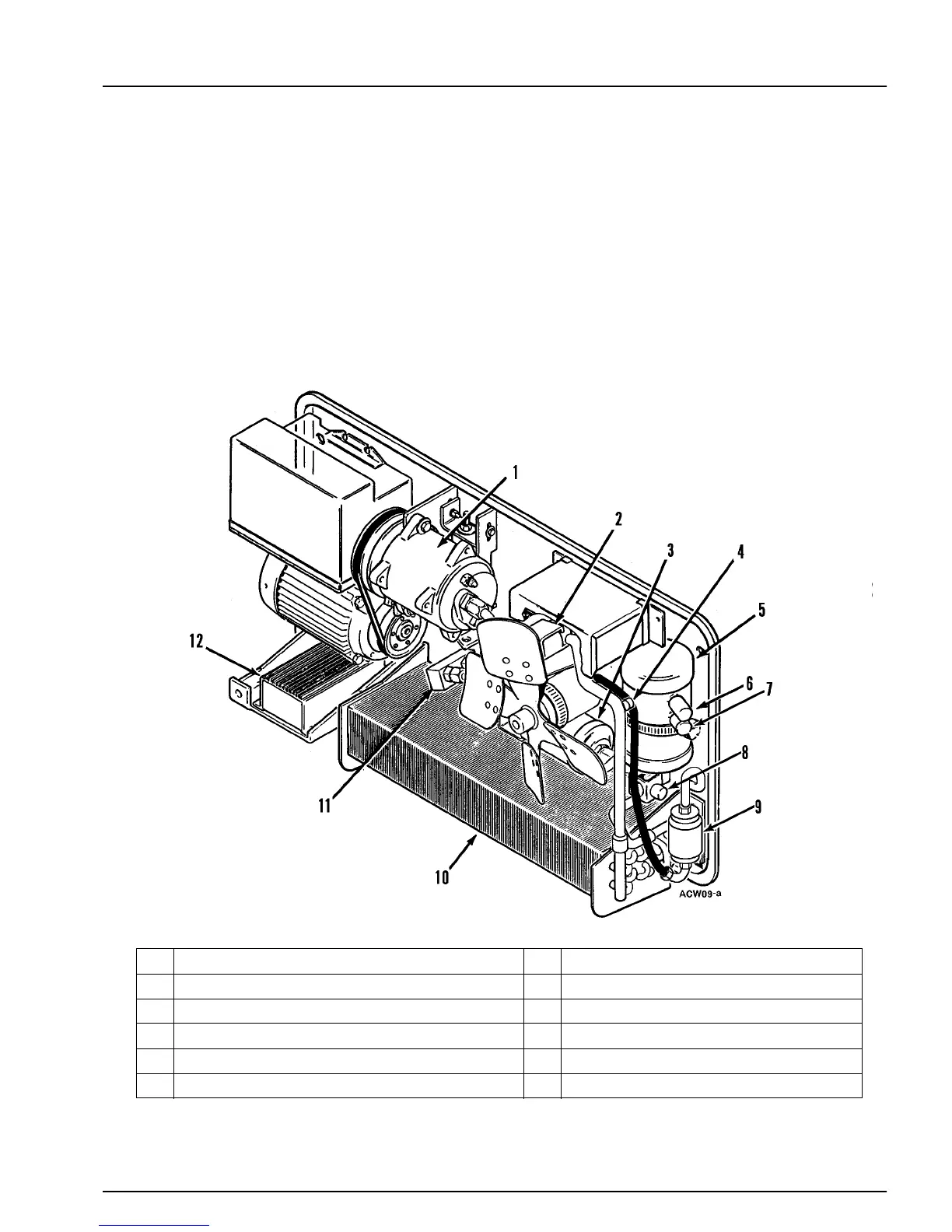

Condenser Components
1. Electric Standby Compressor (Model 20 Only) 7. Condenser Pressure Switch
2. Hot Gas Solenoid 8. Liquid Injection Solenoid
3. Drier 9. Oil Separator
4. Fuse Plug and Oil Fill Hole 10. Condenser Coil
5. Receiver Tank 11. Check Valve Assembly (Model 20 Only)
6. High Pressure Cutout Switch
