Compressor and Clutch Maintenance (Rev 1/99)
84

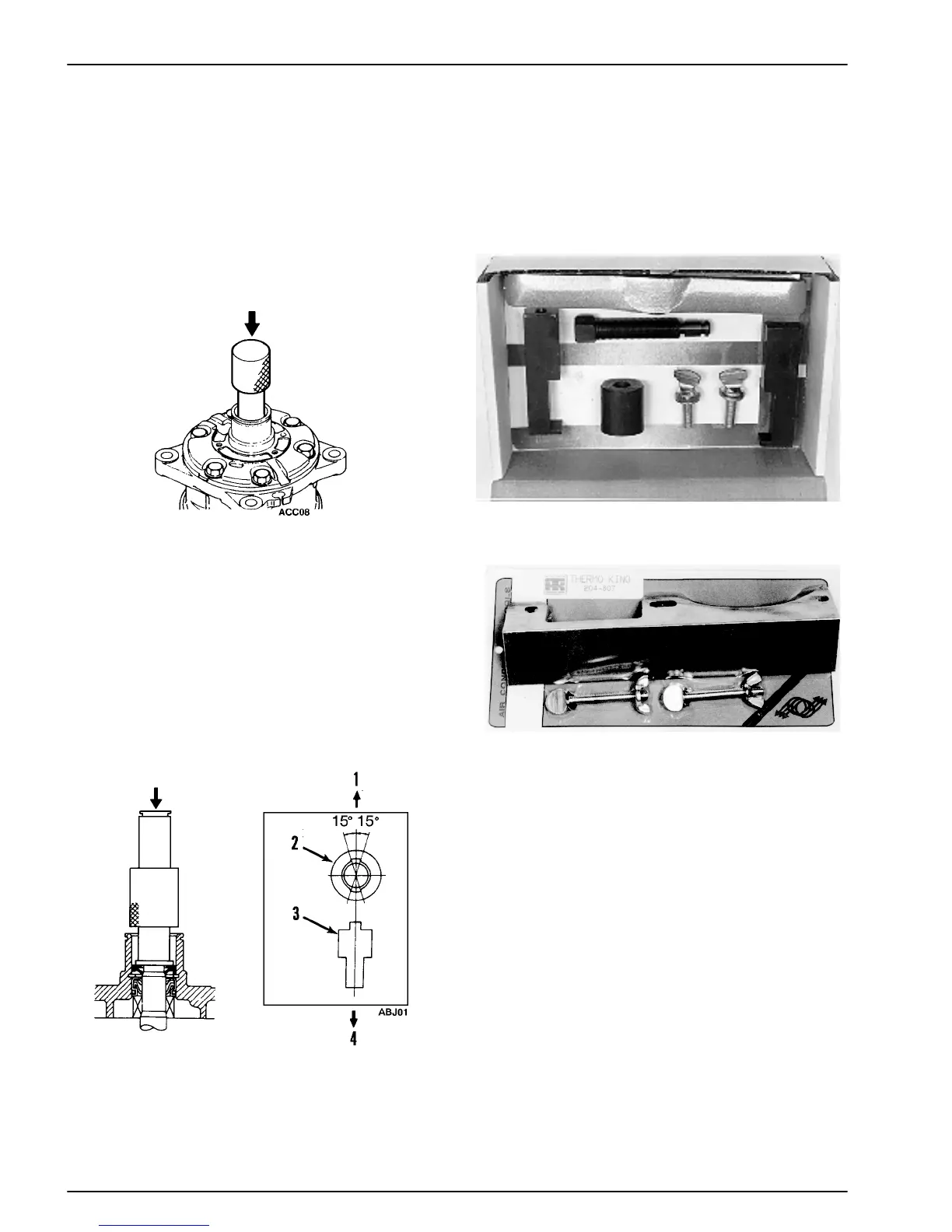

7. Place the seal guide (from the shaft seal kit P/N
204-805) on the end of the shaft.
8. Place the shaft seal cover on the seal guide and slide
the shaft seal cover into the cylinder head.
Install Shaft Seal Cover
9. Use the seal installer (from the shaft seal kit P/N
204-805) to press the shaft seal cover into the
cylinder.
10. Remove the seal guide from the shaft.
NOTE: Position the shaft seal cover as shown in the illus-
tration. The felt pad should also be replaced with a new
one when the shaft seal is replaced.
Proper Shaft Seal Cover Position
Special Tools
Clutch Remover P/N 204-806
Compressor Holder P/N 204-807
8932a
8932b
