CuttingUnitMaintenance
BladeSafety
RefertoandcompletetheprocedureinMaintenance
Safety(page30).
Awornordamagedbladeorbedknifecanbreak,and
apiececouldbethrowntowardyouorbystanders,
resultinginseriouspersonalinjuryordeath.
•Inspectthebladesandbedknivesperiodicallyfor
excessivewearordamage.
•Usecarewhencheckingtheblades.Weargloves
andusecautionwhenservicingthem.Only
replaceorbacklapthebladesandbedknives;
neverstraightenorweldthem.
•Onmachineswithmultiplecuttingunits,takecare
whenrotatingareel;itcancausethereelsinthe
othercuttingunitstorotate.
Checkingthe
Reel-to-BedknifeContact
Eachdaybeforeoperatingthemachine,checkthe
reel-to-bedknifecontact,regardlessifthequalityofcut
hadpreviouslybeenacceptable.Theremustbelight
contactacrossthefulllengthofthereelandbedknife;
refertotheCuttingUnitOperator’sManual.
SettingtheReelSpeed
Toachieveaconsistent,high-qualitycutandauniform
after-cutappearance,youmustcorrectlysetthereel
speedcontrol(locatedonthemanifoldblockunder
thecovertotheleftoftheseat).Adjustthereelspeed
controlasfollows:
1.Decidetheheightofcutatwhichthecutting
unitsareset.
2.Decidethedesiredgroundspeedbestsuited
forconditions.
3.Usetablethatfollowstodeterminethe
reel-speedsettingforyour5-,8-,11-,or
14-bladecuttingunits(Figure50).

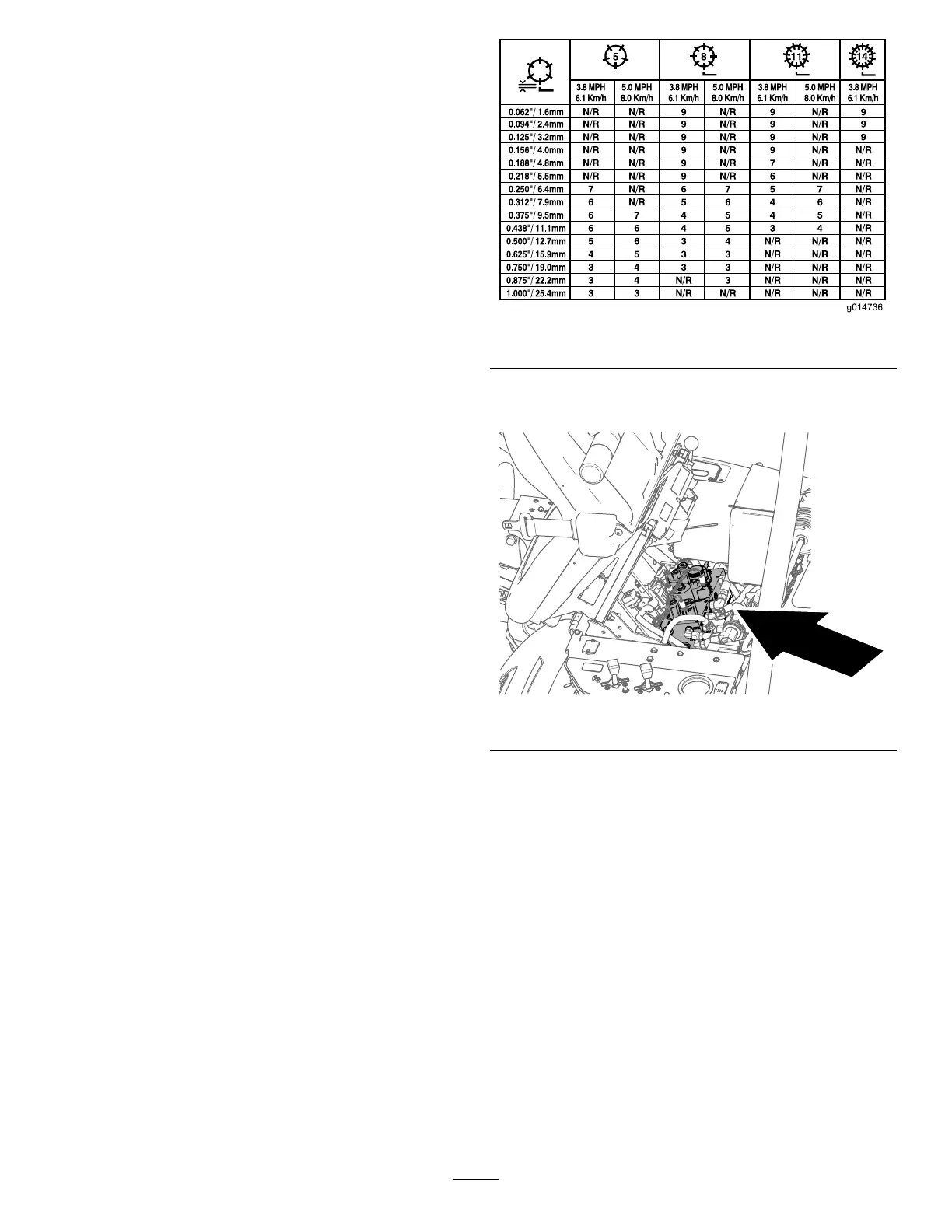

g014736
Figure50
4.Tilttheoperator’sseatforwardandsupportit
withtheproprod(Figure51).
g229847
Figure51
5.Toadjustthereelspeedbyrotatingtheknob
ofthereel-speedcontrol(Figure52)untilthe
indicatorarrowareinlinewiththenumberthat
youdeterminedinstep3.
