ELECTRICAL SYSTEMS
6 - 12 260 Series Tractor Service Manual
Testing
1. Disconnect the switch from the wiring harness.
2. Using a multimeter, follow the procedure listed
below (Figure 244):

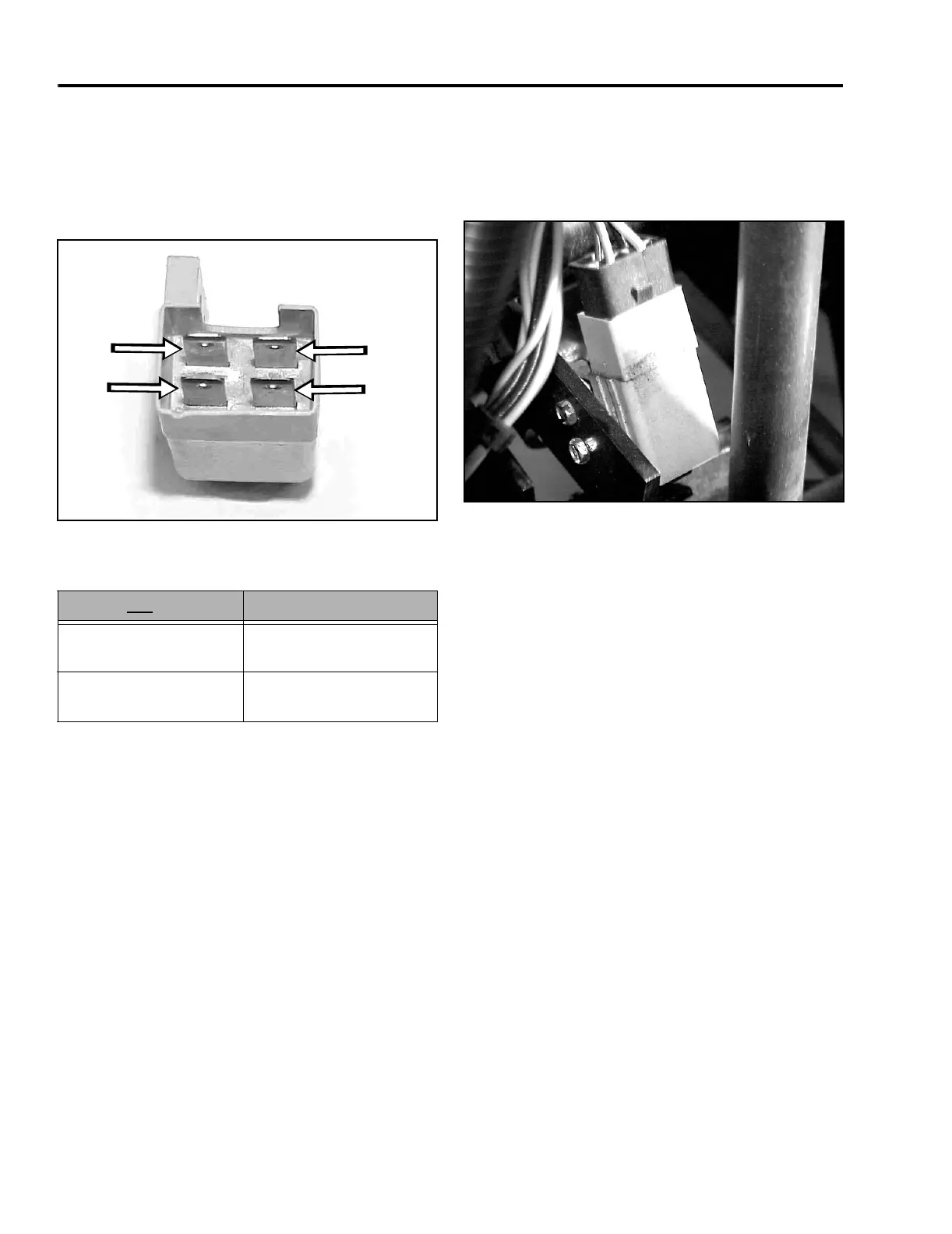

Figure 244
Neutral Switch
Note: Terminals on actual switch not labeled.
Brake Switch (Used on 2000 and
Later Hydrostatic Models)
Purpose
This double pole plunger type switch has four
terminals. When the brake pedal is depressed, it
completes the safety circuit for start. On tractors with
cruise control, the cruise control circuit is connected to
the brake switch. When the brake pedal is depressed,
the switch opens and the cruise control magnet
disengages.
Location
The neutral switch is located under the tractor, on the
right side of the steering sector mount, above the brake
assembly arm (Figure 245).
Figure 245
MVC-215X
How it Works
This double pole plunger switch has four terminals.
When the brake pedal is depressed, it pushes on the
plunger, closing and opening the contacts in the switch.
Plunger Not Depressed Plunger Depressed
A/B Terminals - Open
Circuit - No Continuity
A/B Terminals - Closed
Circuit - Continuity
C/D Terminals - Open
Circuit - No Continuity
C/D Terminals - Closed
Circuit - Continuity
A
B
C
D
To Next Page
