260 Series Tractor Service Manual 5 - 5
GEAR DRIVE

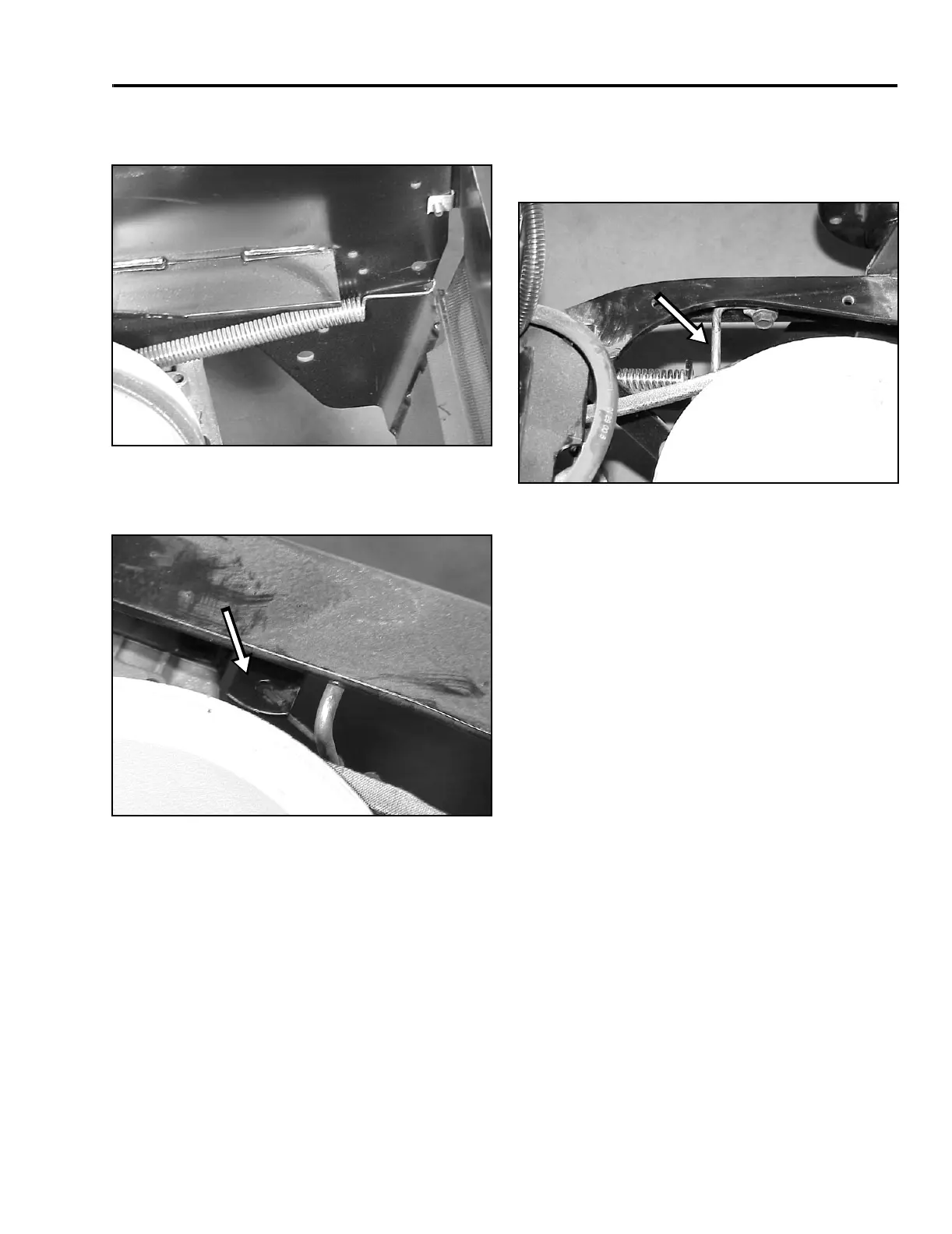

6. Hook the brake return spring to the rear of the
frame (Figure 185).
Figure 185
MVC-247X
7. Hook the idler pulley spring to the frame bracket
(Figure 186).
Figure 186
MVC-242X
8. Install and adjust the right belt guide to the frame
and tighten. Also, tighten the left belt guide. The
guides should be adjusted within 1/8" (3mm) from
belt (Figure 187).
Figure 187
MVC-260X
9. Reconnect the negative battery cable.
10. Check the brakes, (refer to "Checking the Brake"
on page 5 - 14).
11. Check the shift linkage, (refer to "Shift Linkage
Adjustment" on page 5 - 13).
12. Reinstall the fender, seat, and gas tank. Refer to
the “Chassis” section on page 2 - 16.
Troubleshooting
The first rule in transaxle troubleshooting is to check for
proper adjustment of the belts, belt guides, brake
clutch, shifter, and linkage. Check pulleys for sheared
keys, bad keys, bad bearings, or damaged or worn
sheaves. If the problem is related to shift difficulties,
make sure the belt fully declutches and check all
linkages for proper operation. This assures the
problem is not associated with belt disengagement.
Internal Service
Repair procedures for the Peerless 820 transaxle are
available from Tecumseh Products Company,
Technician's Handbook # 691218.
