CHASSIS
2 - 4 260 Series Tractor Service Manual
3. Remove the outer hub cap, cotter pin, washer,
and hub cap washer. Slide the wheel and tire off
the spindle (Figure 13).

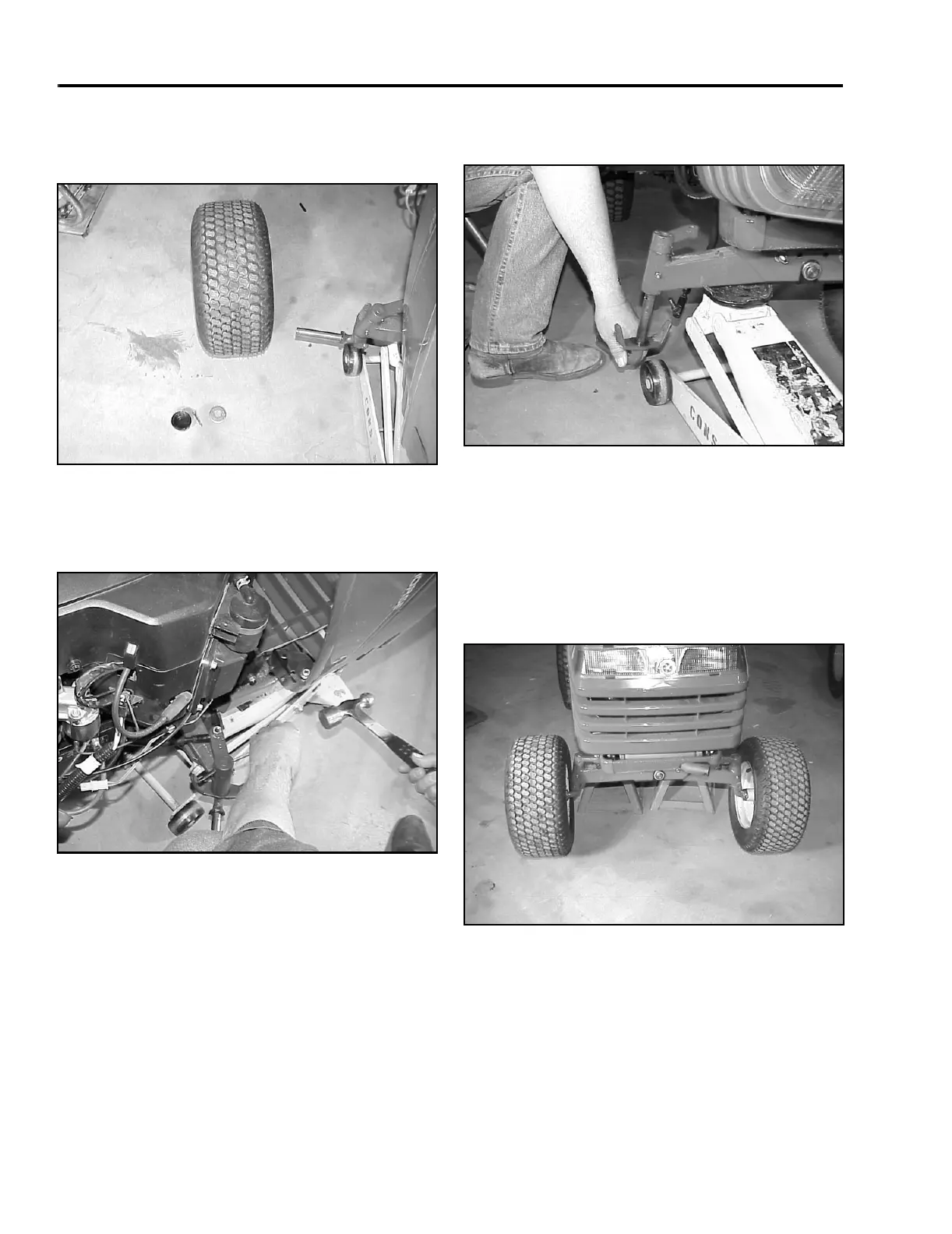

Figure 13
MVC-100X
4. Remove the tie rod from the front spindle arm.
With a drift punch and hammer, drive the roll pin
out of the front spindle arm (Figure 14).
Figure 14
MVC-101X
5. The spindle can now be removed out the bottom
of the front axle assembly (Figure 15).
Figure 15
MVC-102X
6. Installation – reverse the order of removal.
Front Axle Removal and Installation
1. Jack-up the front of the tractor. Put jack stands
under the frame, just behind the front axle
assembly (Figure 16).
Figure 16
MVC-103X
