HYDRO-GEAR TRANSAXLE
4 - 10 260 Series Tractor Service Manual
Foot Control Adjustment Procedure
If there is not enough ground speed in reverse and too
much in forward, adjustment can be made to correct
this.

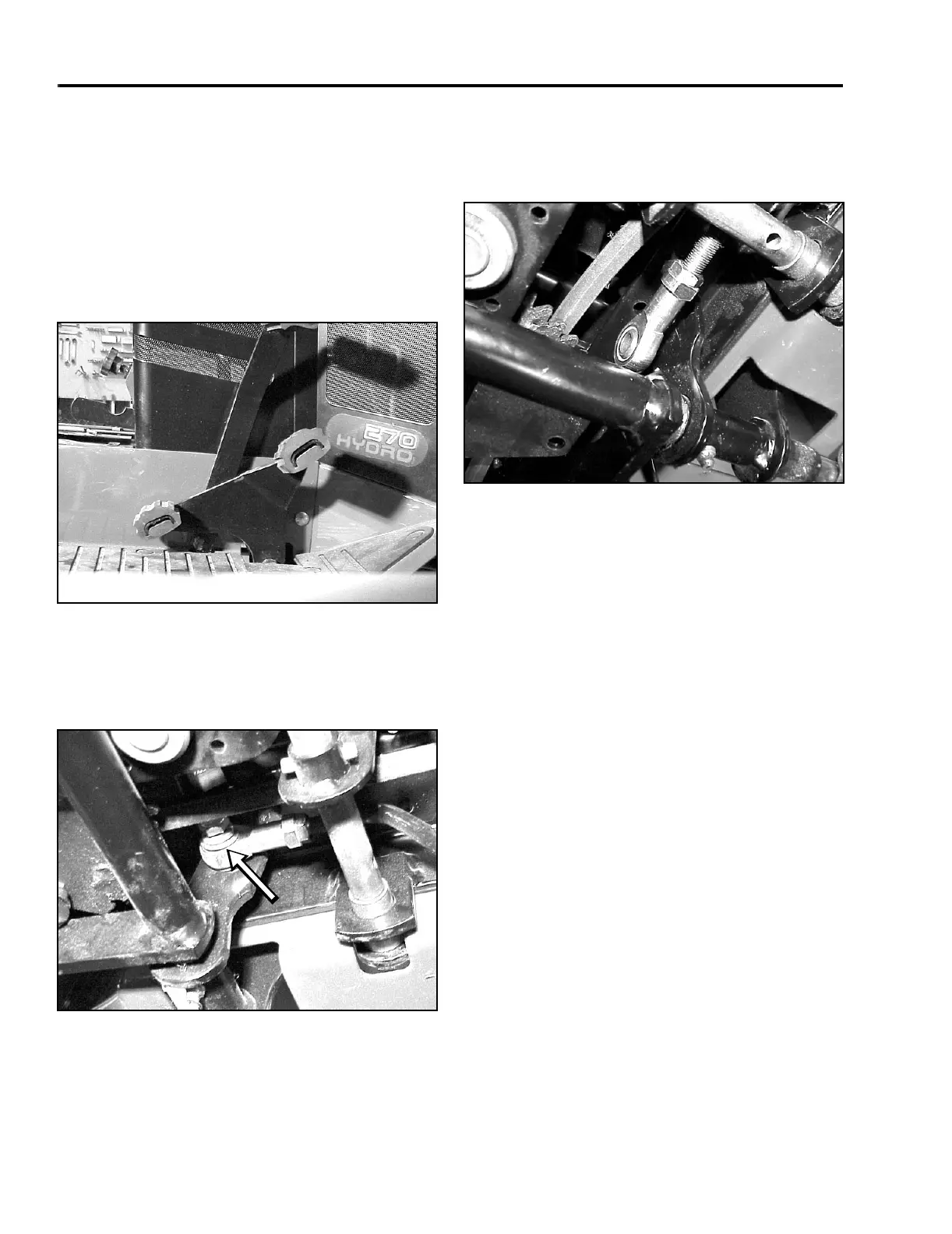

1. Measure the distance between the footrest and
the back of the forward/reverse control pedal.
There should be 1¼” (31.75mm) to 1-3/8”
(34.925mm) gap (Figure 144).
Figure 144
MVC-166X
2. If adjustment is needed, unbolt the hydro control
rod where it connects to the hydro forward/reverse
pedal. The location is under the tractor on the
inside of the frame (Figure 145).
Figure 145
MVC-167X
3. Loosen the jam nut and turn the rod end until you
achieve 1¼” (31.75mm) to 1-3/8” (34.925mm) gap
between the footrest and the back side of the
forward/reverse control pedal (Figure 146).
Figure 146
MVC-184X
1¼ - 1-3/8”
