GEAR DRIVE
5 - 14 260 Series Tractor Service Manual

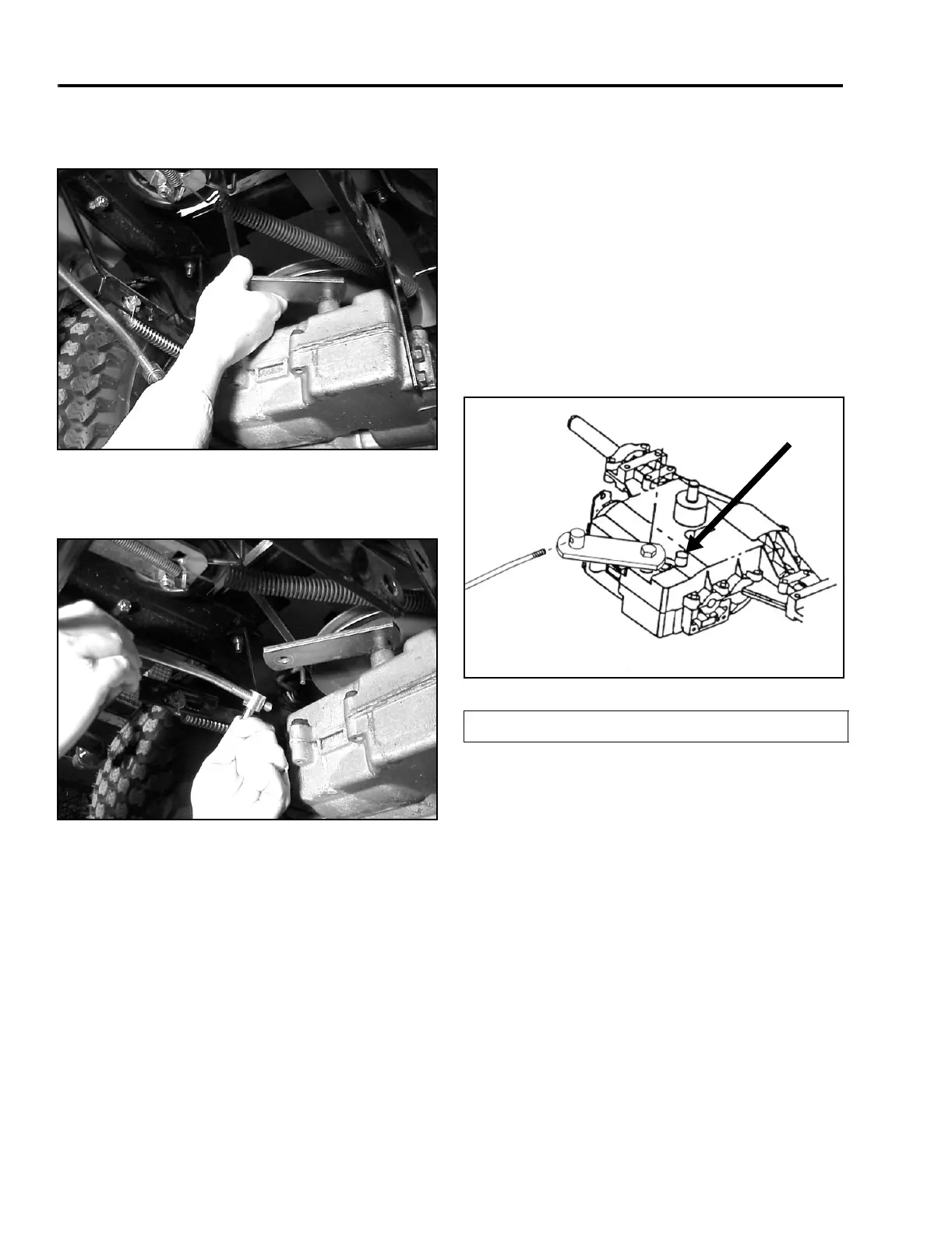

4. Shift the transaxle to the 6
th
gear using the
transaxle shift arm (Figure 214).
Figure 214
MVC-294X
5. Turn the trunion until it aligns with the hole in the
transaxle shift arm (Figure 215).
Figure 215
MVC-295X
6. Reconnect the linkage.
7. Check that the gear shift lever is centered in the
gate.
8. Shift linkage that is misadjusted, loose, or worn
will result in shifting problems.
Shift Detent Tension Adjustment
The detent ball on the shifter in the transaxle must
have the proper tension for the transaxle to operate
properly. If this tension is not correctly set, the
transaxle will either shift hard or correct gear selection
will be difficult.
To have the proper tension on the detent ball, the index
set screw should be ½ turn in from the top of the case
(Figure 216). If this adjustment is insufficient to correct
the problem, consult the troubleshooting guide on page
5 - 6, or Tecumseh/Peerless Mechanic’s Handbook,
available through Tecumseh Products.
Figure 216
Tec Trans
Brakes
The brake is on the right side of the rear axle, inside
the rear tire. If the brake does not hold securely or
stopping power is insufficient, an adjustment is
required.
Checking the Brake
1. Park the machine on a level surface, disengage
the power take off (PTO), shift into neutral, set the
parking brake, and turn the ignition key to “OFF” to
stop the engine. Remove the key.
2. If the rear wheels lock and skid when you push the
tractor forward, no adjustment is required. An
adjustment is required if the wheels turn and do
not lock; refer to “Adjusting the Brake” on page 5 -
15.
(A) Index Set Screw
A
