260 Series Tractor Service Manual 2 - 17
CHASSIS
4. Remove the four carriage bolts, washers, and
nuts, (two on the right and two on the left), that are
located between the footrest and fender (Figure
53).

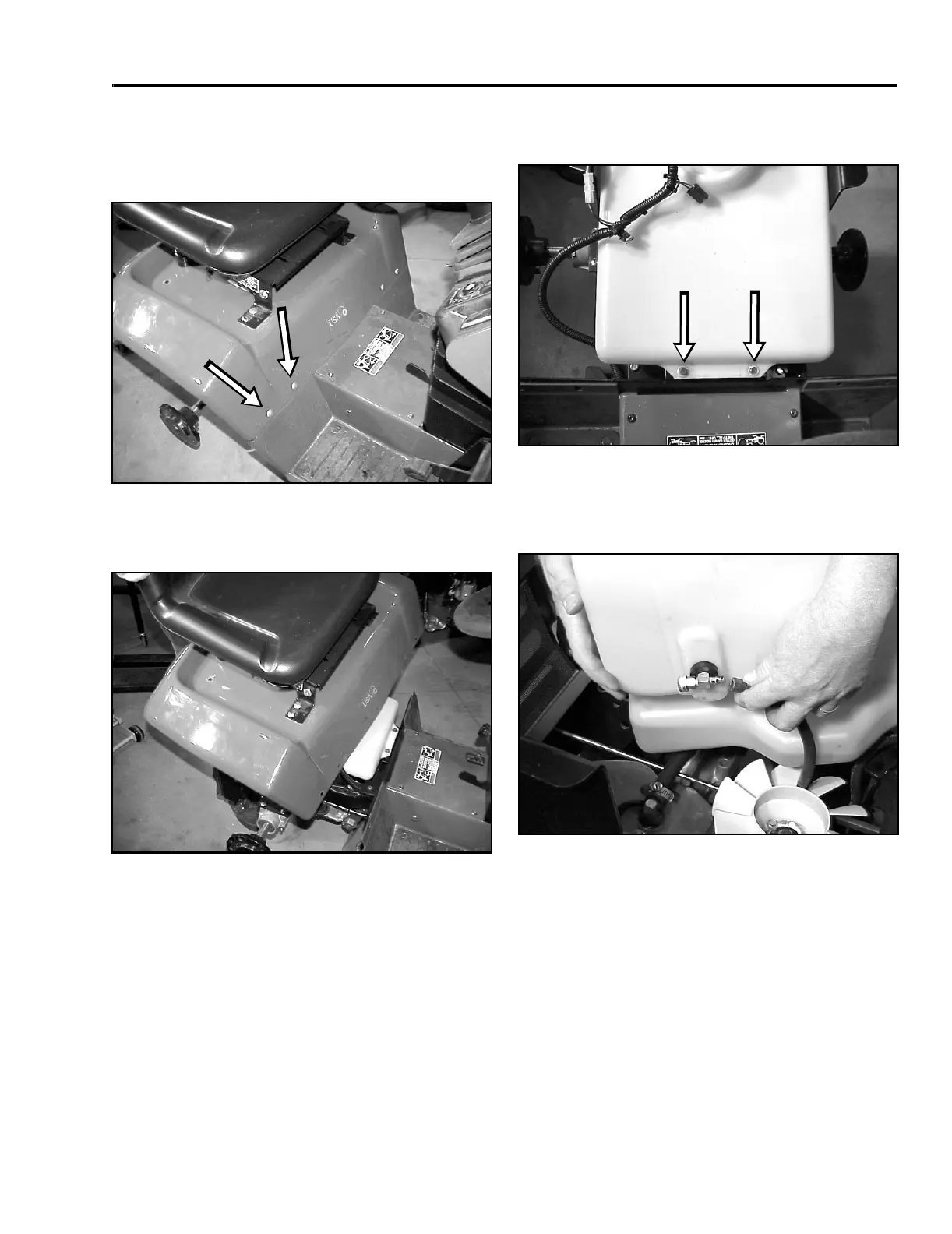

Figure 53
MVC-124X
5. Remove the seat and fender together as one
piece (Figure 54).
Figure 54
MVC-126X
6. Installation - follow the removal procedure in
reverse.
Gas Tank Removal
1. Follow the procedure for removing the rear fender
and seat.
2. Remove the two screws and spacers in the front
of the gas tank (Figure 55).
Figure 55
MVC-129X
3. Lift the gas tank from the frame, close the gas
shut-off valve, and disconnect the gas line from
the shut-off valve (Figure 56).
Figure 56
MVC-130X
4. Carefully remove the gas tank.
5. Installation - reverse the order of removal.
