HYDRO-GEAR TRANSAXLE
4 - 4 260 Series Tractor Service Manual

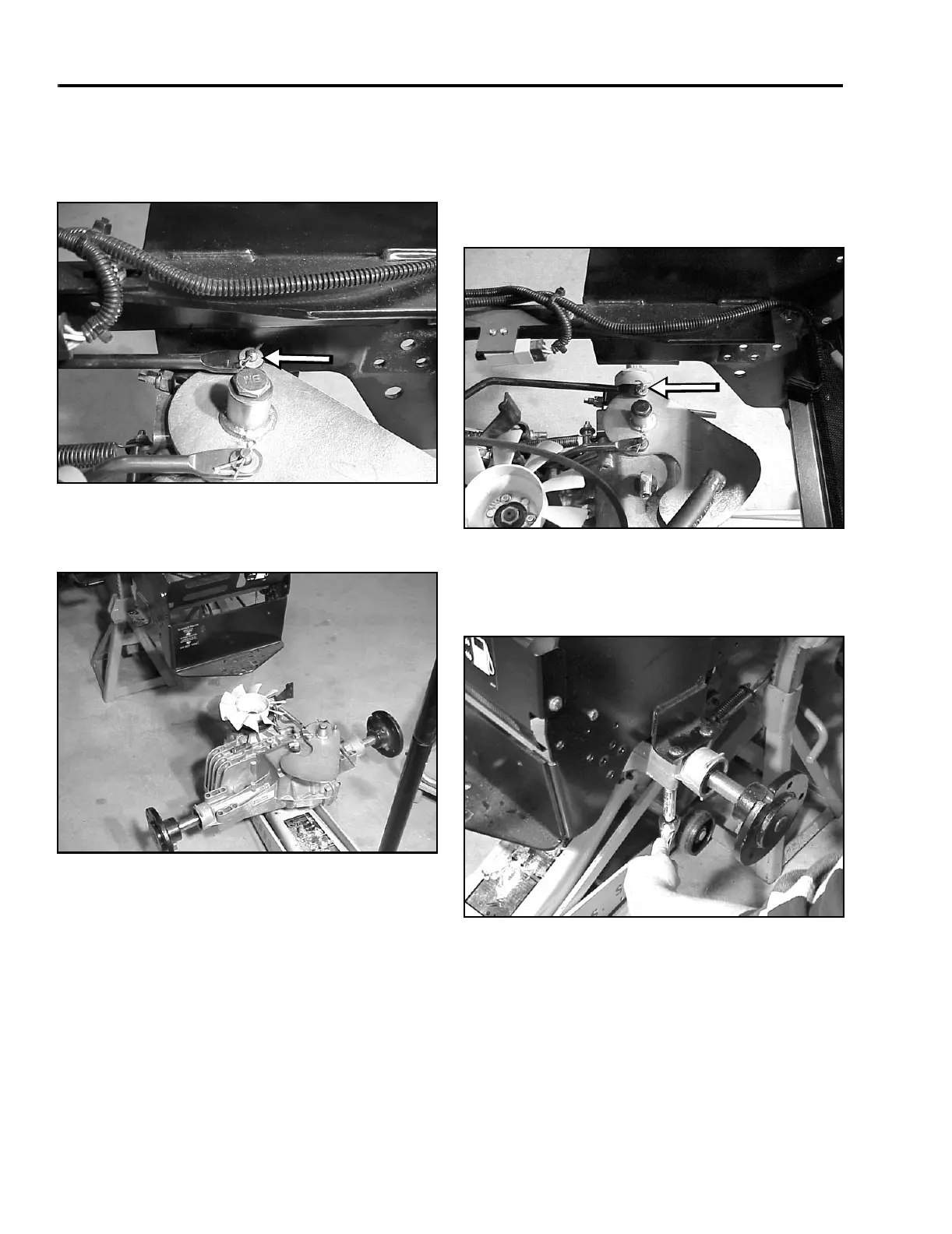

13. Slowly lower the transaxle slightly and STOP. You
will need to disconnect the hydro rod from the
cruise plate. Remove the cotter pin and washer
(Figure 128).
Figure 128
MVC-148X
14. Continue to lower the transaxle out of the tractor
frame (Figure 129).
Figure 129
MVC-149X
Installation - Hydro-Gear Transaxle
1. Raise the transaxle up toward the frame allowing
enough room to install the hydro rod to the cruise
plate and secure with the cotter pin and washer
(Figure 130).
Figure 130
MVC-150X
2. Install the four carriage bolts, washers, and nuts
from the transaxle frame brackets through the
transaxle housing (Figure 131).
Figure 131
MVC-153X
