18
Seat

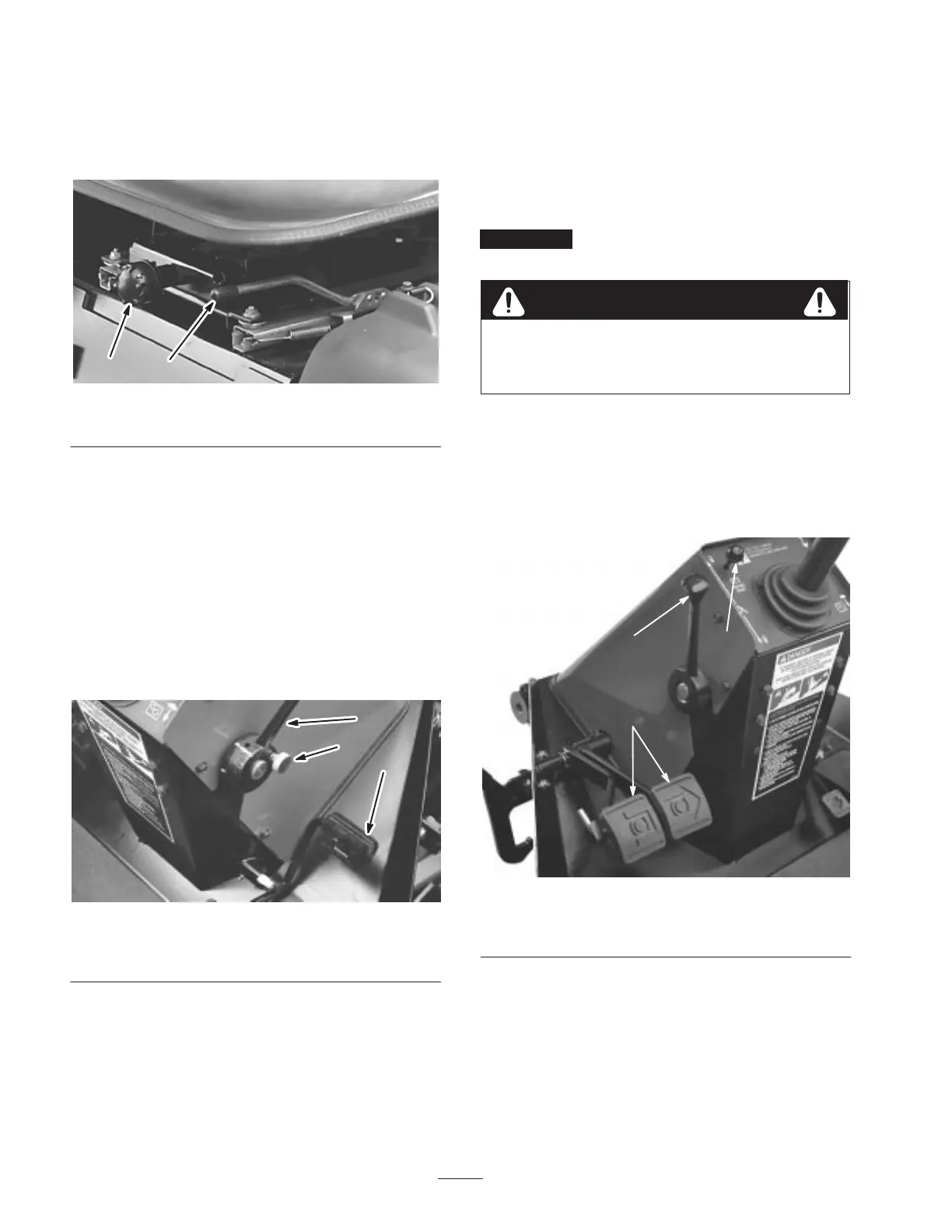

Seat adjusting lever on left side of seat (Fig. 16) allows
4 inch (10.2 cm) fore and aft adjustment. Seat adjusting
knob on front of seat, adjusts seat for operator’s weight.
1
2
Figure 16
1. Seat adjusting lever 2. Seat adjusting knob
Traction Pedal
The traction pedal (Fig. 17) controls forward and reverse
operation. Depress top of pedal to move forward and
bottom to move backward. Ground speed depends on how
far pedal is depressed. For no load, maximum ground
speed, fully depress pedal while throttle is in FAST. For
maximum power under load or when going uphill, keep
engine rpm high by having throttle in FAST and traction
pedal partially engaged. If engine rpm begins to decrease
due to load, gradually reduce traction pedal pressure until
engine speed is increased.
1
2
3
Figure 17
1. Traction pedal
2. Axle shift lever
3. Lockout knob
To stop, reduce foot pressure on traction pedal and allow it
to return to center position. On extreme downhill slopes,
apply pressure to REVERSE side of pedal, or operate with
heel on REVERSE and toe on FORWARD portion of pedal.
Axle Shift Lever
The axle shift lever ,located on right side of console
(Fig. 17), selects front drive mode. Pull out lockout knob,
move lever rearward for mowing operation and forward for
transport operation, then release knob to lock selection.
Lever must be in LO position to mow. Middle position (N)
is for towing.
Important On model 30455, lever must be in LO
position to operate in 4-wheel drive.
The machine must be on a flat surface with the
brakes engaged when shifting the axle from the HI
to LO position.
Caution
Brake Pedals
Two foot pedals at the lower left (Fig. 18) operate
individual wheel brakes for turning assistance, braking,
parking and to aid in obtaining better sidehill traction.
Locking pin is for parking.
1
2
3
Figure 18
1. Brake pedals
2. Parking brake latch
3. Steering wheel tilt lever
