Workman MD/MDXPage 6 -- 18Electrical System
Service and Repairs
NOTE: For information on electrical engine compo-
nents, see the Briggs and Stratton Vanguard Service
and Repair Manual for 4--Cycle, V--Twin Cylinder, OHV
Engines (Workman MDX) or the Kohler Service Manual
for Command Pro CS Series Engines (Workman MD).

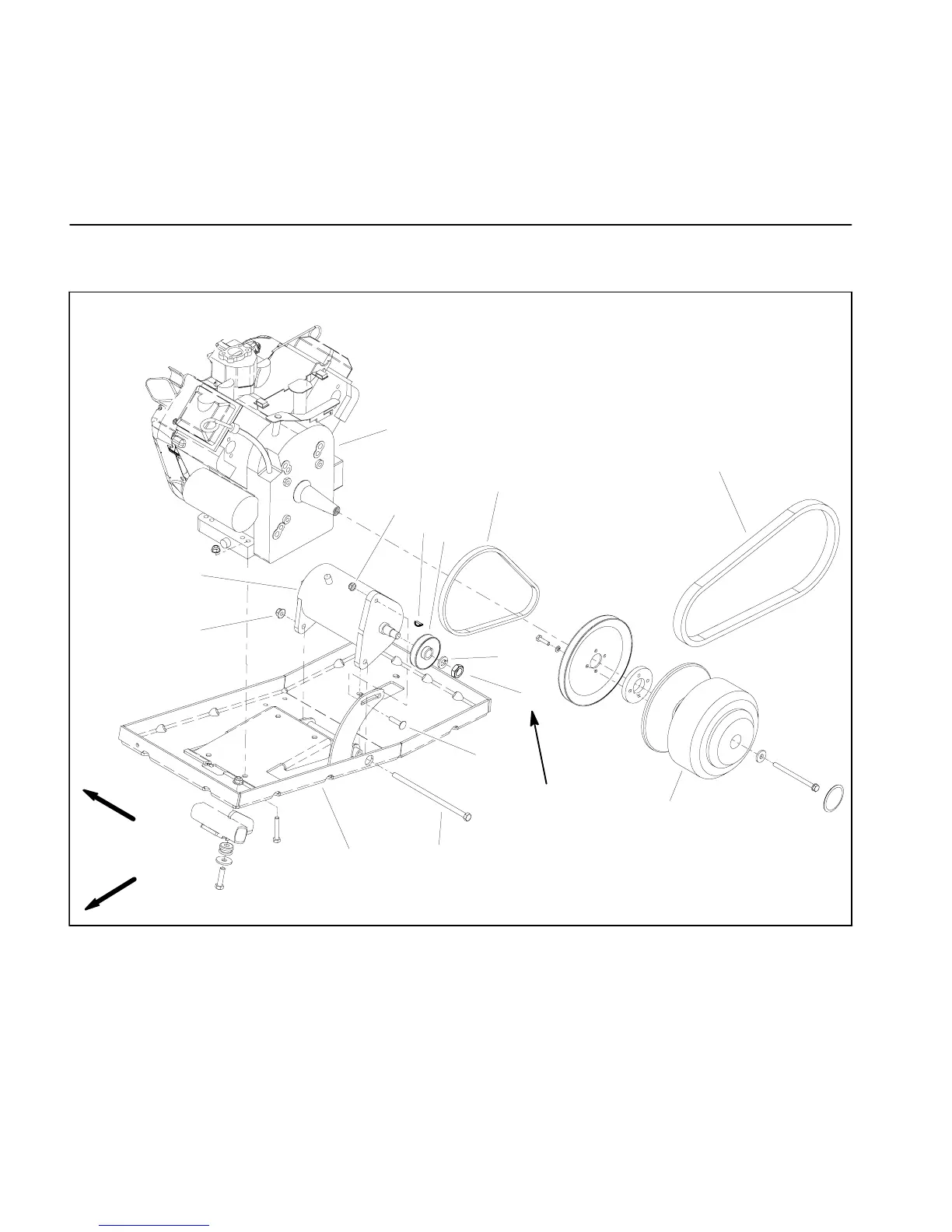

Starter/Generator
1. Engine
2. Lock nut
3. Woodruff key
4. Starter/generator pulley
5. Starter/generator belt
6. Drive belt
7. Drive clutch
8. Nut
9. Lock washer
10. Carriage bolt
11. Pivot bolt
12. Engine tray
13. Flange nut
14. Starter/generator
Figure 23
v
7
4
5
3
2
6
1
8
9
10
12
11
14
13
FRONT
RIGHT
15 to 25 ft--lb
(21to33N--m)
