Toro Workman MDX Service Manual

Workman MD/MDX Drive TrainPage 5 -- 35
Transaxle Assembly

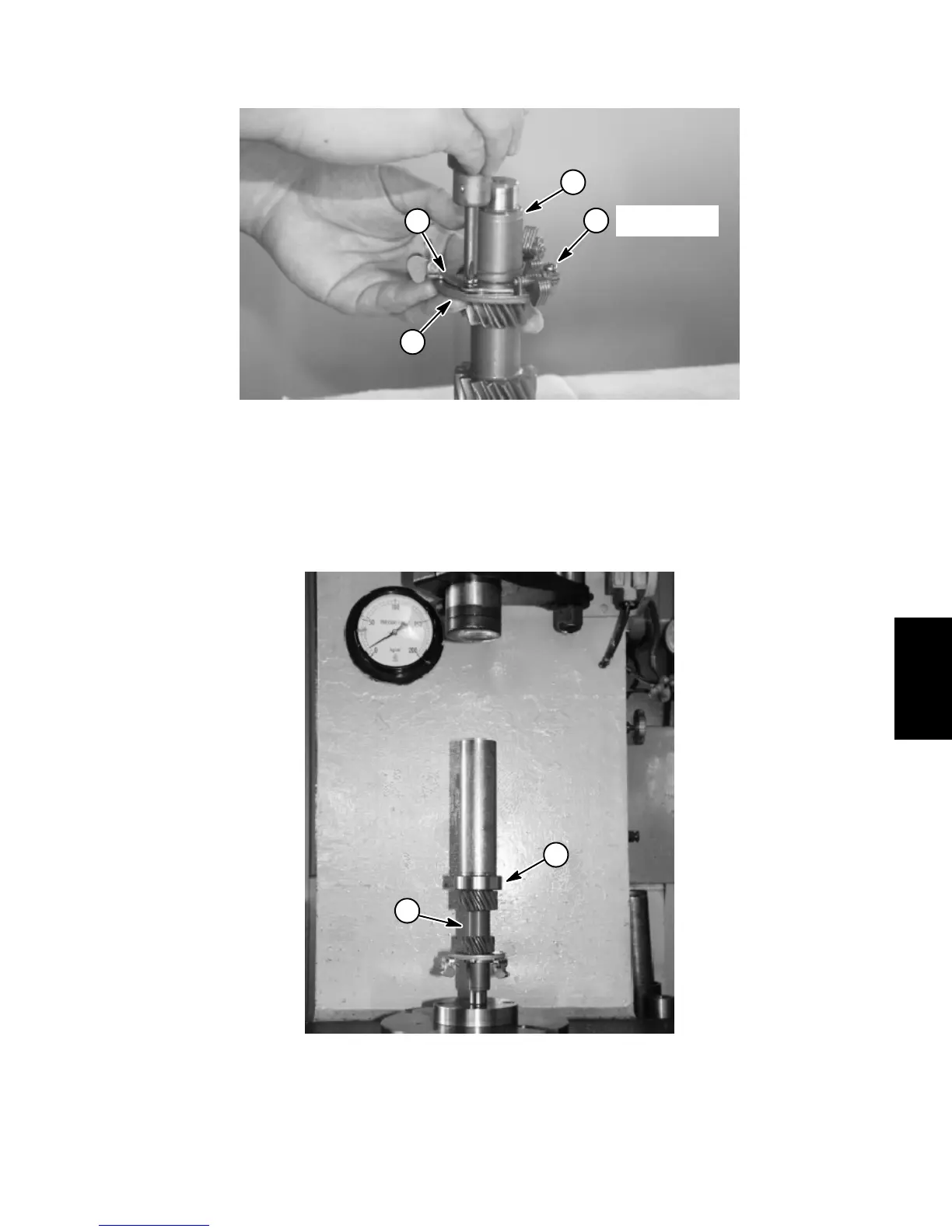

1. Assemble input shaft assembly.
1. Governor plate
2. Governor base
3. Screw
4. Governor sleeve
Figure 51
12 to 16 in--lb
(1.4 to 1.8 N--m)
1
2
4
3
IMPORTANT: To prevent the screws that secure the
governor plate to the governor from loosening, ap-
ply Loctite #242 (or equivalent) to the screw threads.
A. On Workman MD, secure governor plate unit to
the governor base with two (2) screws and lock pin.
Torque fasteners from 12 to 16 in--lb (1.4 to 1.8
N--m).
1. Ball bearing 2. Input shaft
Figure 52
1
2
IMPORTANT: Make sure to press ball bearing at the
inner race to prevent damaging the ball bearing.
B. Press ball bearing onto the input shaft.
Drive Train
