Page 7 -- 46 Workman MD/MDXChassis

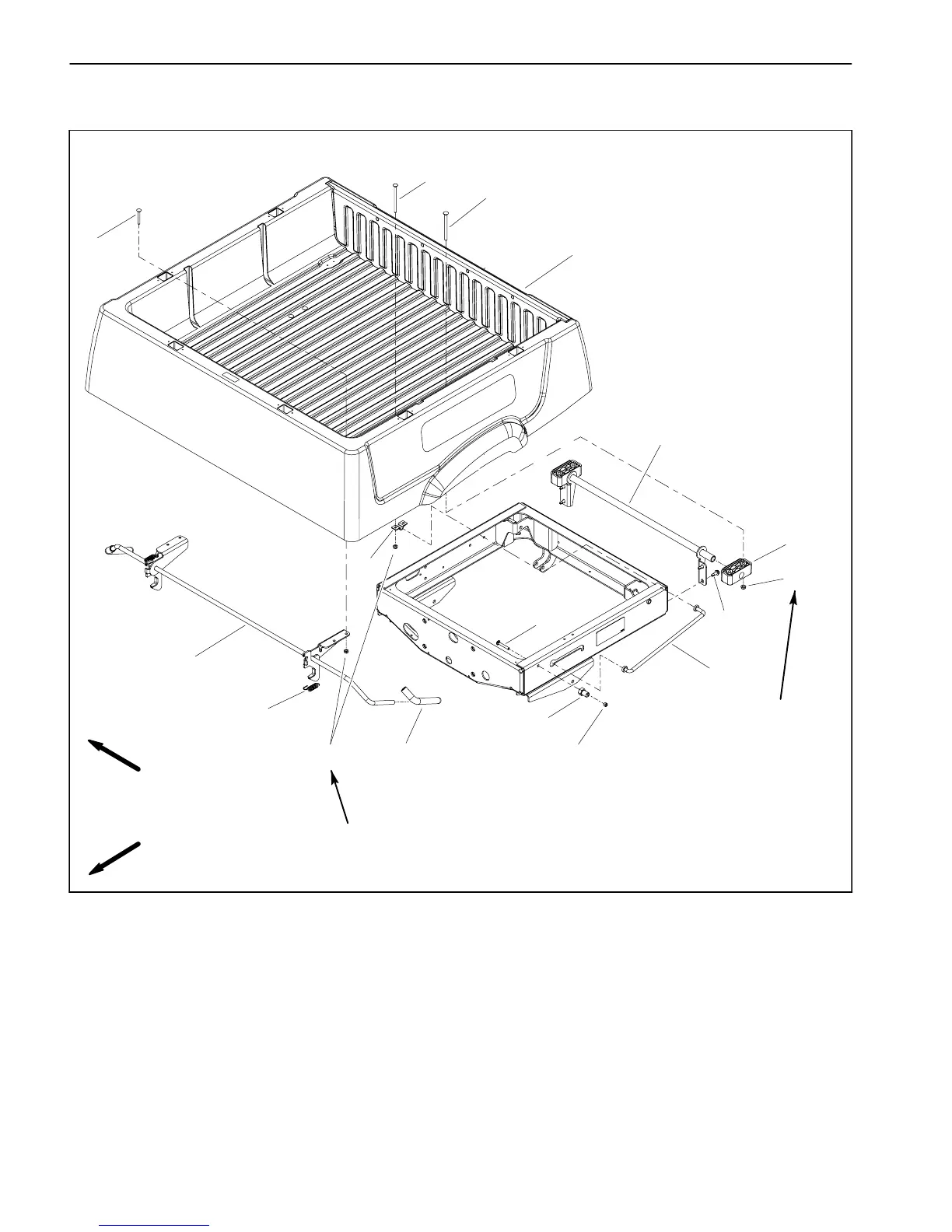

Cargo Box (Serial Numbers Above 311000000)
1. Cargo box
2. Handle
3. Latch pin (2 used)
4. Lock nut (2 used)
5. Carriage screw (4 used)
6. Pivot bracket
7. Pivot bushing (2 used)
8. Screw (4 used)
9. Carriage screw (4 used)
10. Flange nut (4 used)
11. Prop rod
12. Flange nut (6 used)
13. Carriage screw (2 used)
14. Tension spring (2 used)
15. Carriage screw (2 used)
16. Prop rod bracket
17. Latch assembly
Figure 34
FRONT
RIGHT
190 to 200 in--lb
(21.5 to 22.6 N--m)
100 to 110 in--lb
(11.3 to 12.4 N--m)
2
3
6
8
9
10
11
1
5
7
15
16
17
14
13
4
12
Rev. A
