Toro Workman MDX Service Manual

Workman MD/MDX
Drive Train
Page 5 -- 16
Transaxle
1. Engine
2. Washer (4 used)
3. Cap screw (4 used)
4. Drive belt
5. Cap screw
6. Stepped washer
7. Driven clutch
8. Transaxle
9. Lock nut
10. Flat washer
11. Shift cable (2 used)
12. Flange nut (4 used)
13. Engine tray
14. Swing arm
15. Drive clutch
16. Flange head screw (4 used)
17. Isolation mount (2 used)
18. Flat washer (2 used)
19. Cap screw (2 used)
20. Flange nut (2 used)

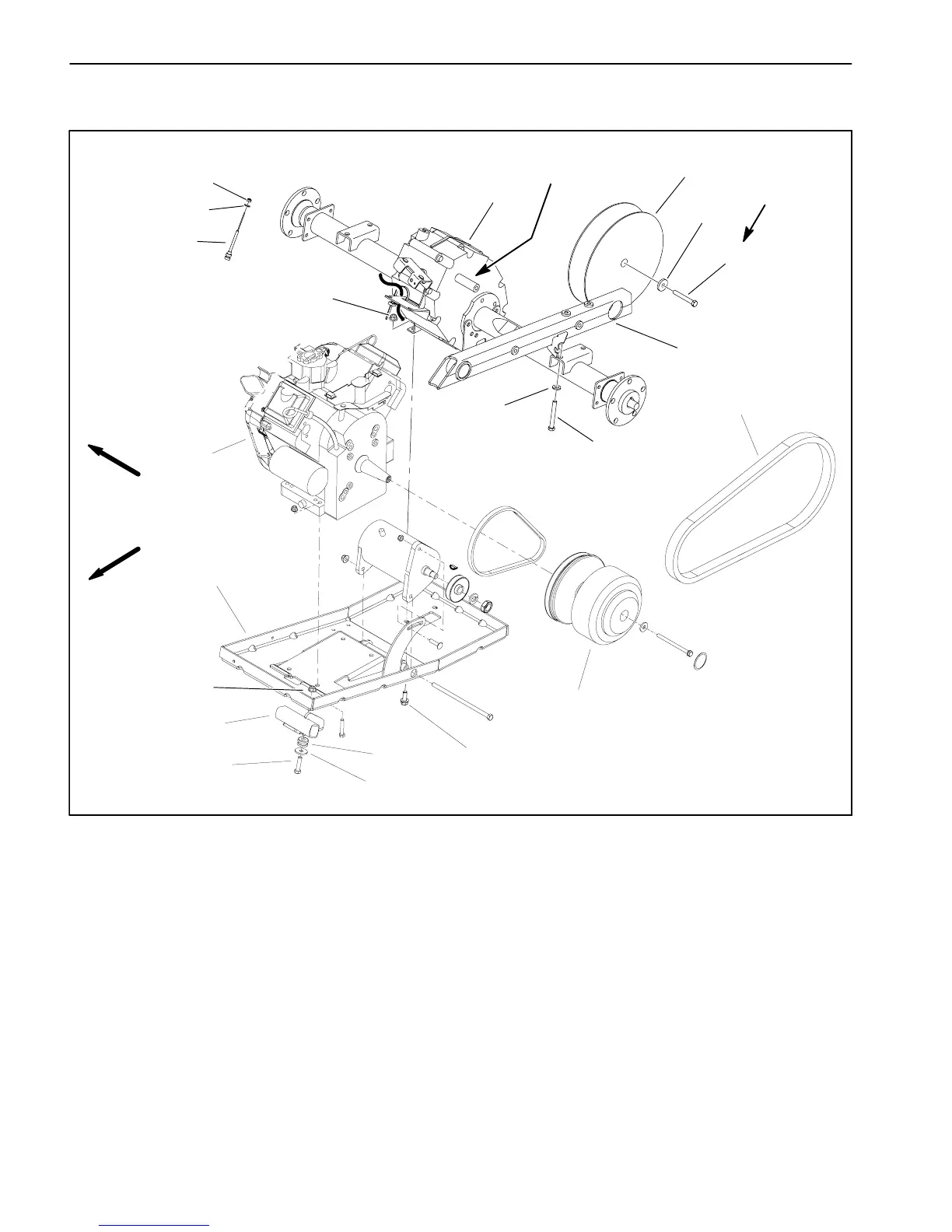

Figure 22
v
FRONT
RIGHT
13
14
19
6
11
15
16
18
10
9
7
5
12
3
4
2
1
8
14
17
20
Antiseize
Lubricant
39 to 47 ft--lb
(53to63N--m)
Removal (Fig. 22)
1. Park machine on a level surface, stop engine, set
parking brake and remove key from the ignition switch.
2. Remove cargo box from the frame (see Cargo Box
Removal in Chapter 7 -- Chassis).
3. Remove drive belt from the driven clutch.
4. Remove cable ties that secure both battery cables to
the passenger side axle tube.
5. Remove muffler from machine (see Exhaust System
Removal in the Service and Repairs section of Engine
Chapter).
