Toro Workman MDX Service Manual

Workman MD/MDXPage 7 -- 42Chassis

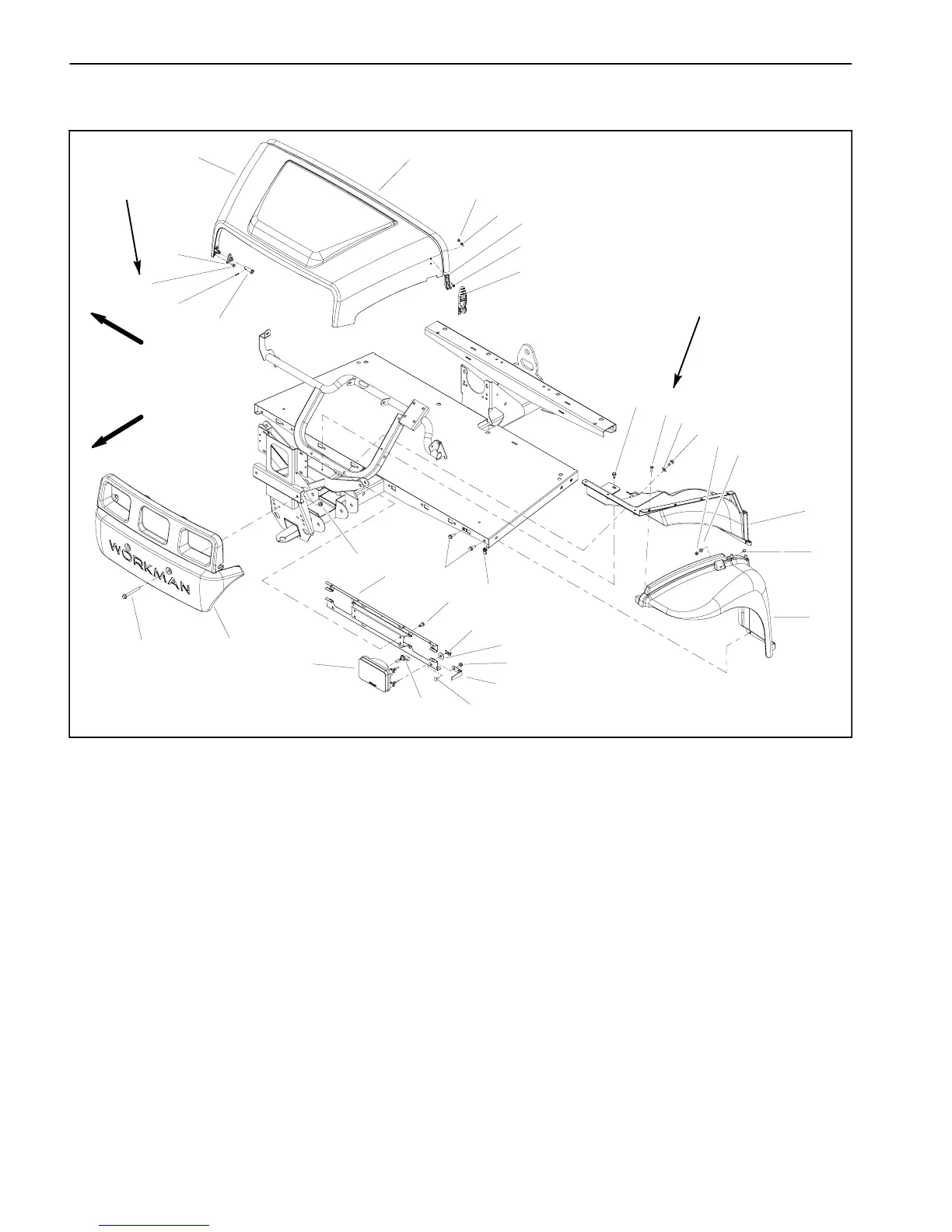

Front Hood
1. Fender (LH shown)
2. Lock nut (4 used)
3. Flat washer (2 used)
4. Front bumper
5. Headlight (2 used)
6. Washer (3 used per headlight)
7. Hood
8. Fender well (LH shown)
9. Cap screw (2 used)
10. Hood pivot keeper (2 used)
11. Screw (6 used)
12. Washer head screw (8 used)
13. Carriage screw (2 used)
14. Lock nut (2 used)
15. Pivot pin (2 used)
16. Spring pin (2 used)
17. Headlight bracket
18. Flange head screw (2 used)
19. Washer head screw (20 used)
20. Washer head screw (4 used)
21. Flange nut (2 used)
22. Rubber latch (2 used)
23. Catch (2 used)
24. Flat washer (4 used)
25. Flange head screw (10 used)
26. Clip (3 used per headlight)
27. Flat washer (2 used)
28. Retainer (2 used)
29. Flange nut (2 used)
30. Tinnerman nut (10 used)
31. Headlight bulb (2 used)
32. Foam seal
Figure 27
FRONT
RIGHT
13
14
20
19
6
11
15
16
18
21
10
9
30
26
28
25
27
29
7
5
8
24
23
17
22
12
3
4
2
1
12
12
31
32
7to13in--lb
(0.8 to 1.4 N--m)
7to13in--lb
(0.8 to 1.4 N--m)
