Page 7 -- 44 Workman MD/MDXChassis

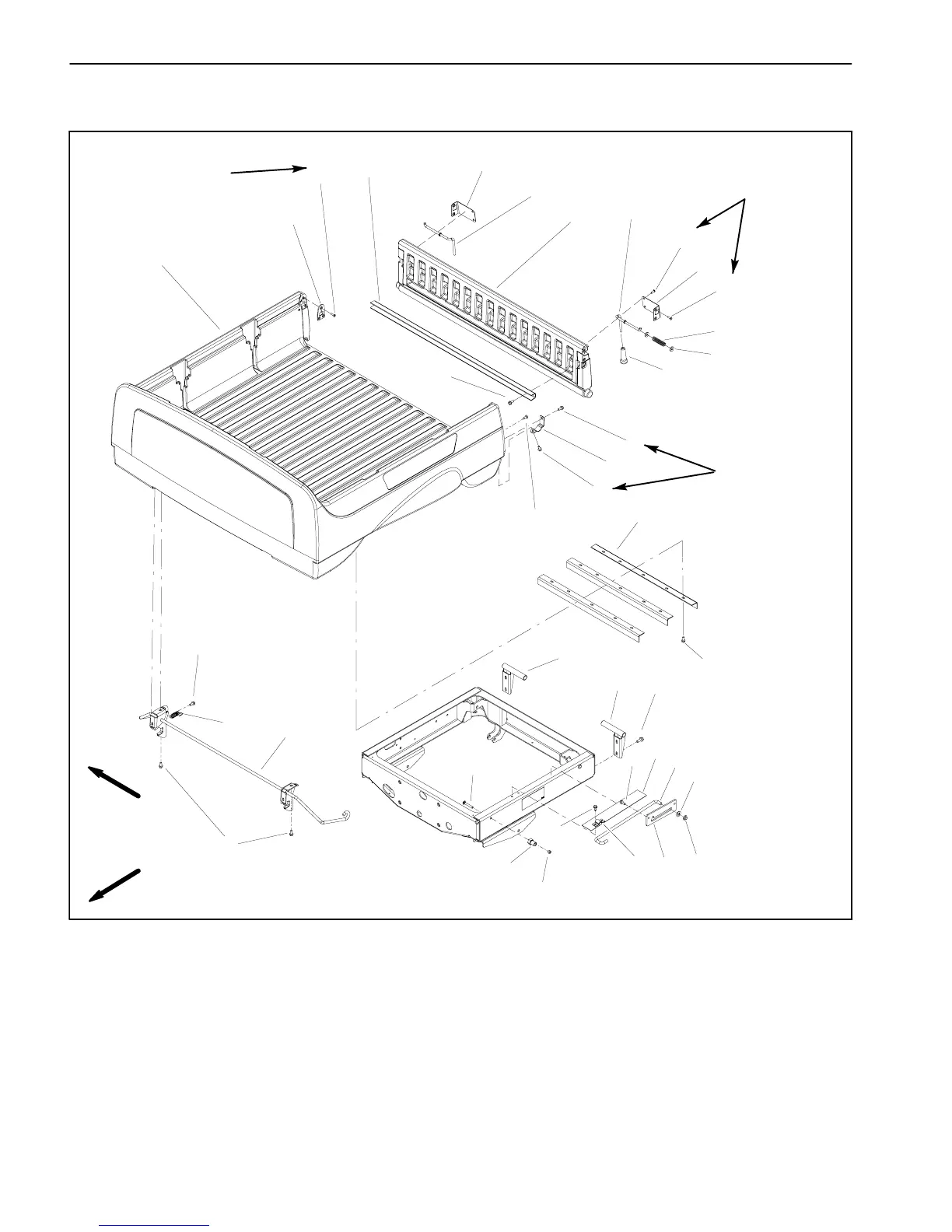

Cargo Box (Serial Numbers Below 311000000)
1. Cargo box
2. Knob (2 used)
3. Rubber bumper (2 used)
4. Tailgate
5. Flange head screw (31 used)
6. RH pivot bracket
7. LH pivot bracket
8. Flange head screw (4 used)
9. Box brace (3 used)
10. Latch washer (4 used)
11. Prop rod
12. Prop rod bracket
13. Flat washer
14. Push nut
15. Washer head screw (2 used)
16. Prop rod bracket
17. Latch rod
18. Tension spring (2 used)
19. Carriage screw (2 used)
20. Latch pin (2 used)
21. Lock nut (2 used)
22. Pivot bracket (2 used)
23. Spring (2 used)
24. Screw (10 used)
25. LH tailgate bracket
26. Screw
27. LH latch rod
28. RH latch rod
29. RH tailgate bracket
30. Tailgate channel
31. Striker plate (2 used)
Figure 33
FRONT
RIGHT
13
14
20
19
6
11
15
16
18
21
10
9
7
5
8
17
22
12
3
4
2
5
5
5
1
5
5
5
22
23
25
24
26
27
29
28
30
24
31
100 to 200 in--lb
(11.3 to 22.6 N--m)
35 to 55 in--lb
(4.0 to 6.2 N--m)
35 to 55 in--lb
(4.0 to 6.2 N--m)
Rev. A
