Workman MD/MDXPage 7 -- 22Chassis

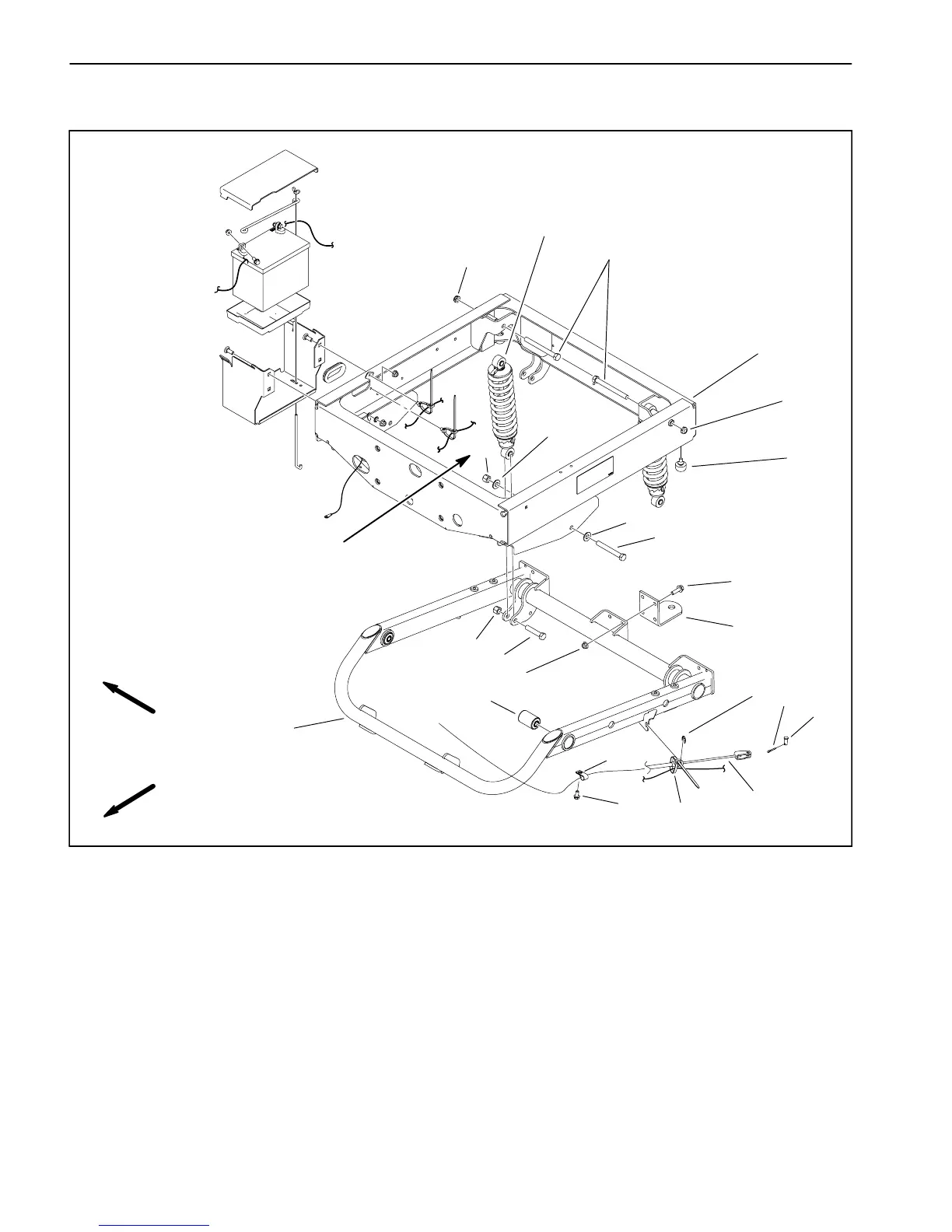

Swing Arm
1. Flange nut (4 used)
2. Hitch
3. Flange head screw (4 used)
4. Bushing (2 used)
5. Rear frame
6. Retaining ring (2 used)
7. Washer head screw (2 used)
8. R--clamp (2 used)
9. Rear shock assembly (2 used)
10. Cap screw (2 used)
11. Rubber bumper (2 used)
12. Swing arm
13. Cable tie
14. Lock nut (4 used)
15. Lock nut (2 used)
16. Thrust washer (4 used)
17. Cap screw (2 used)
18. Parking brake cable (2 used)
19. Cap screw (2 used)
20. Cotter pin (2 used)
21. Clevis pin (2 used)
Figure 13
18
13
8
6
12
3
19
16
11
15
5
4
10
9
15
14
16
1
17
14
20
2
7
21
70 to 90 ft--lb
(95 to 122 N--m)
FRONT
RIGHT
