Workman MDXPage 3 -- 6Briggs & Stratton Gasoline Engine
Air Cleaner

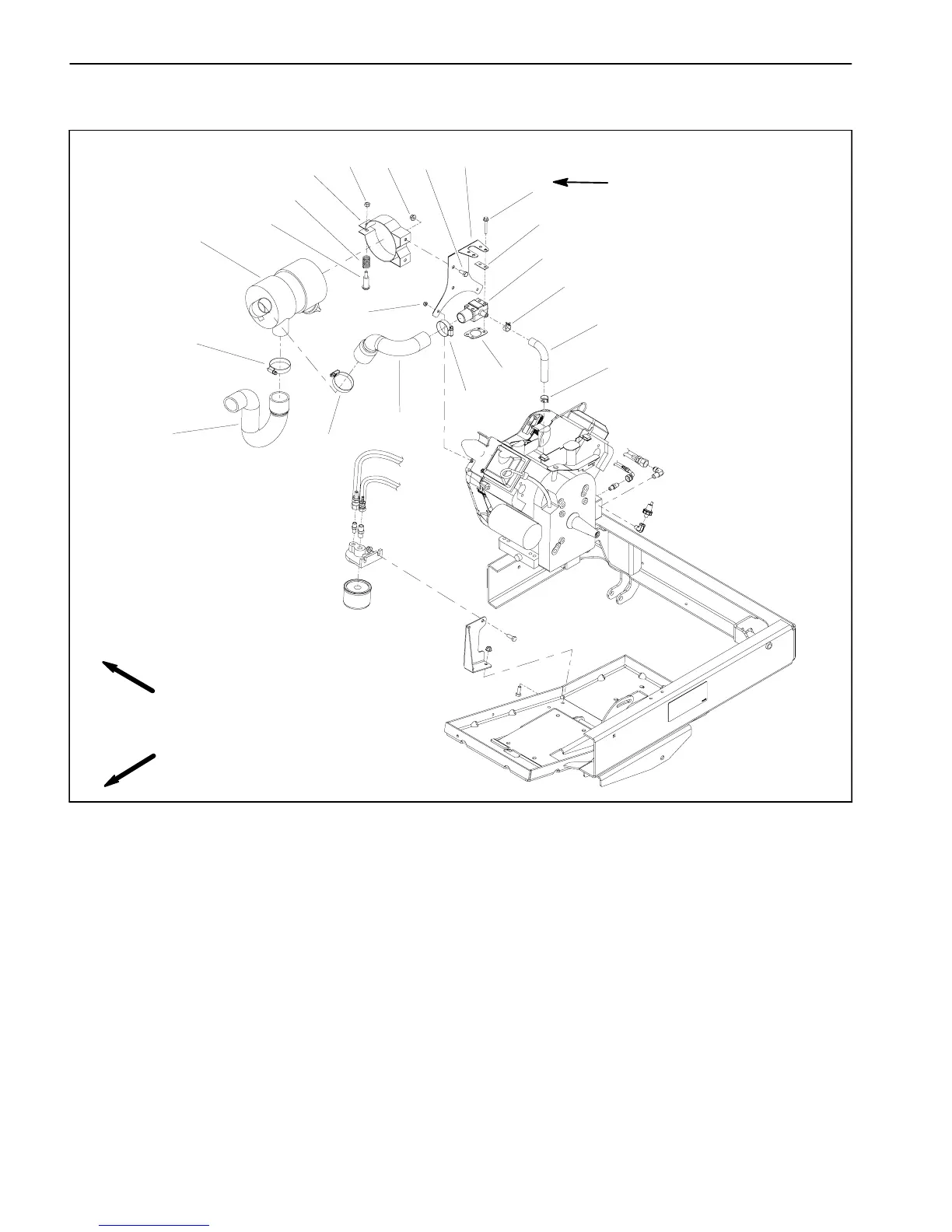

Figure 5
1. Air cleaner assembly
2. Bolt
3. Compression spring
4. Mounting band
5. Nut
6. Flange nut (2 used)
7. Cap screw (2 used)
8. Air cleaner bracket
9. Flange head screw (4 used)
10. Carburetor gasket (2 used)
11. Carburetor adapter
12. Hose clamp
13. Breather hose
14. Adapter gasket
15. Hose clamp
16. Intake hose
17. Hose clamp
18. Intake hose
FRONT
RIGHT
13
14
19
6
11
15
16
18
10
9
7
5
8
17
12
3
4
2
1
12
17
60 to 65 in--lb
(6.8 to 7.3 N--m)
