Toro Workman MDX Service Manual

Workman MDPage 4 -- 12Single Cylinder Gasoline Engine
Engine

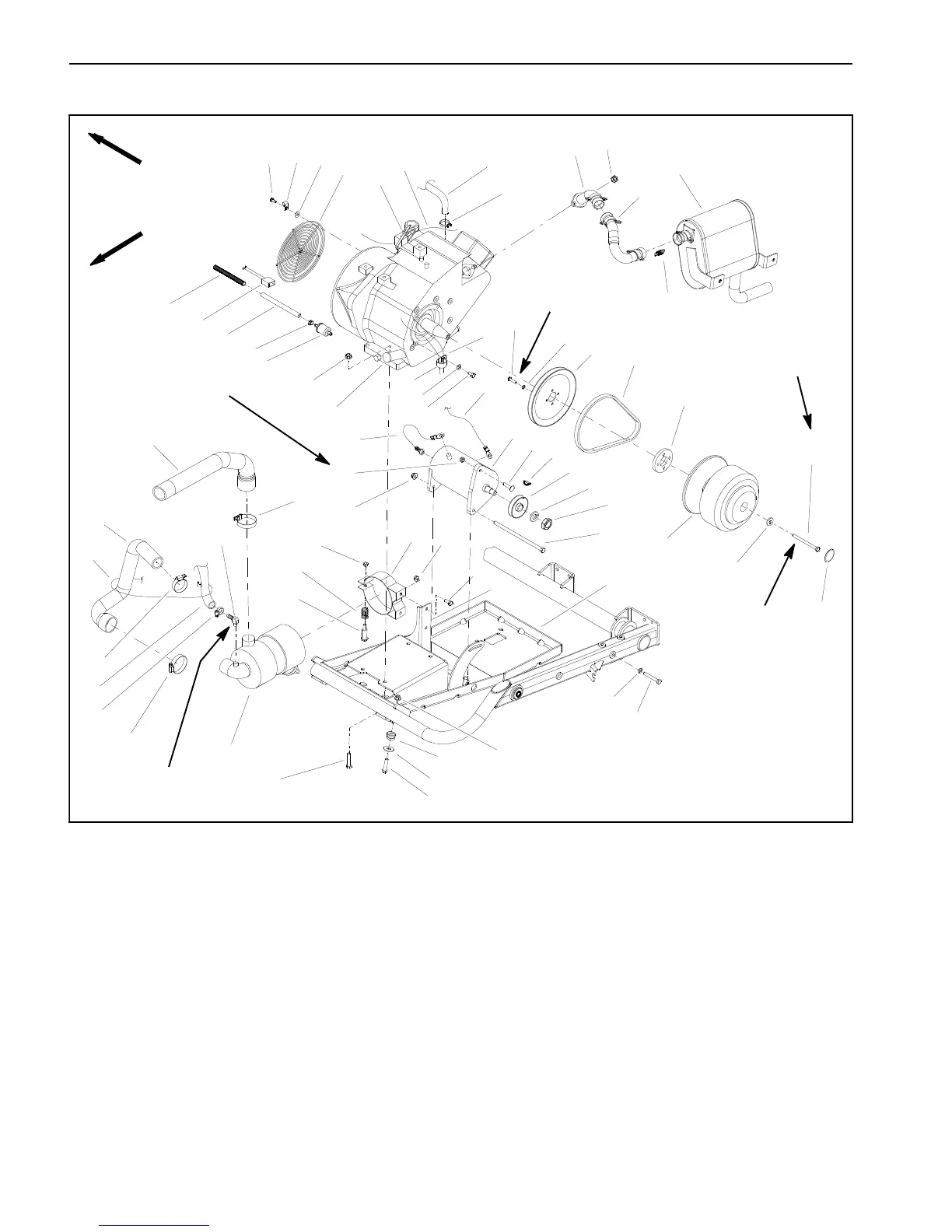

Figure 11
1. Kohler engine
2. Coupler spring (4 used)
3. Exhaust manifold
4. Muffler
5. Exhaust coupler
6. Cap screw (2 used)
7. Drive clutch
8. Shift cable (2 used)
9. Starter belt
10. Cap screw
11. Fuel filter
12. Engine pulley spacer
13. Starter/generator
14. Starter pulley
15. Engine pulley
16. Hose clamp (3 used)
17. Fuel hose
18. Fuel hose conduit
19. Air filter mounting band
20. Engine wire harness
21. Engine tray
22. Negative cable
23. Air cleaner bracket
24. Flange nut (7 used)
25. Carriage screw
26. Flange nut (2 used)
27. Hose clamp (2 used)
28. Hose clamp
29. Cap screw (4 used)
30. Lock washer (4 used)
31. Washer
32. Cap screw
33. Mount (2 used)
34. Washer (2 used)
35. Flywheel guard
36. Flat washer (4 used)
37. Flange head screw (4 used)
38. Intake hose
39. Cap screw (2 used)
40. Hose clamp (2 used)
41. Air cleaner assembly
42. Breather hose
43. Intake hose
44. Cap screw (4 used)
45. Fitting
46. Lock nut
47. Lock washer (2 used)
48. R--clamp
49. Cap screw
50. Flat washer
51. R--clamp
52. Cable tie (2 used)
53. Nut
54. Spring
55. Bolt
56. Cap screw (2 used)
57. Governor cable
58. Lock washer
59. Nut
60. Woodruff key
61. Plastic cap
62. Nut (2 used)
FRONT
RIGHT
36
44
13
38
14
20
19
6
11
15
16
18
21
41
10
9
31
33
40
32
26
34
43
28
42
25
35
27
29
37
7
8
24
23
17
47
30
22
45
46
39
12
1
25 to 30 ft--lb
(34 to 40 N--m)
Loctite #242
Loctite #242
24
27
40
42
48
49
50
51
52
53
54
55
20
56
57
52
58
59
60
5
3
4
2
Loctite #242
24
61
65 to 85 ft--lb
(88 to 115 N--m)
62
